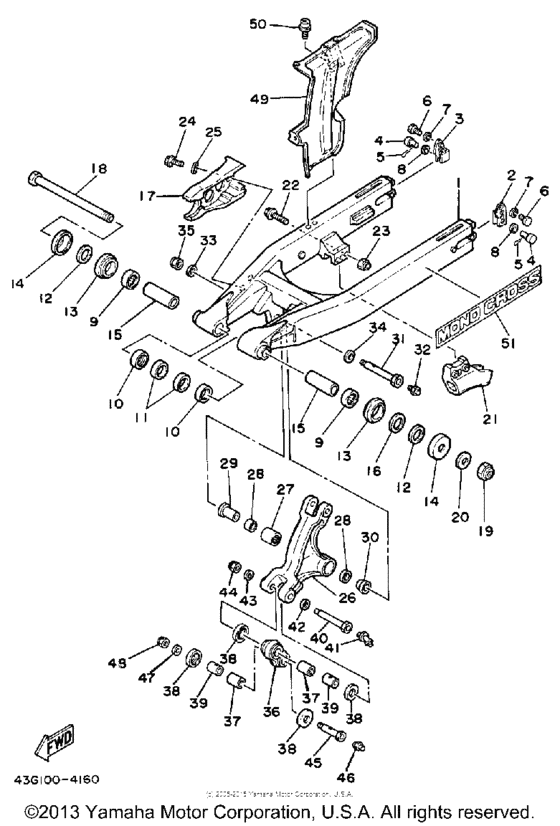

Rear arm & suspension Diagram Yamaha IT
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43G-22110-00-00
Rear Arm
|
43G-22110-00-00 |
— | ||
|
2
|
2
43G-2539F-00-00
Plate 1
|
43G-2539F-00-00 |
— | ||
|
3
|
3
43G-2539G-00-00
Plate 2
|
43G-2539G-00-00 |
— | ||
|
4
|
4
91701-05020-00 Pin,clevis |
91701-05020-00 |
US $2.64 |
||
| replacement | |||||
|
4
|
4
91790-05020-00 Pin, Clevis |
91790-05020-00 |
US $2.64 |
||
|
5
|
5
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
6
|
6
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
8
|
8
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
8
|
8
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
9
|
9
933-17322-31-00 Bearing |
933-17322-31-00 |
from US $24.48 |
||
|
10
|
10
90380-22111-00 Bush, Solid |
90380-22111-00 |
from US $7.51 |
||
|
11
|
11
93106-22019-00 Oil Seal (Dc 22-28-8)22-28-8 |
93106-22019-00 |
from US $6.09 |
||
|
12
|
12
90201-22680-00
Washer, Plate
|
90201-22680-00 |
— | ||
|
13
|
13
93108-35004-00 Oil Seal (35-41-8)35-41-8 |
93108-35004-00 |
from US $7.37 |
||
|
14
|
14
2K6-22128-01-00 Cover, Thrust 1 |
2K6-22128-01-00 |
from US $29.19 |
||
|
15
|
15
90380-16077-00 Bush, Solid |
90380-16077-00 |
from US $45.88 |
||
|
16
|
16
240-22127-00-00 Shim (0.3T)Shim,rear arm (26-34-0.1) 0.3T U.N. |
240-22127-00-00 |
from US $8.78 |
||
|
17
|
17
39W-22151-00-00 Seal, Guard |
39W-22151-00-00 |
from US $48.08 |
||
|
18
|
18
5X4-22141-01-00
Shaft, Pivot
|
5X4-22141-01-00 |
— | ||
|
19
|
19
90185-16127-00 Nut, Self-Locking |
90185-16127-00 |
from US $6.38 |
||
| replacements | |||||
|
19
|
19
90185-16002-00 Nut, Self-Locking |
90185-16002-00 |
from US $6.38 |
||
|
19
|
19
95617-16100-00 Nut, U |
95617-16100-00 |
from US $13.88 |
||
|
20
|
20
902-01160-F6-00 Washer, Plate |
902-01160-F6-00 |
from US $7.37 |
||
|
21
|
21
39W-22199-01-00 Support, Chain |
39W-22199-01-00 |
from US $42.83 |
||
|
22
|
22
958-11080-45-00
Bolt, Flange
|
958-11080-45-00 |
— | ||
| replacements | |||||
|
22
|
22
95814-08045-00 Bolt, Flange |
95814-08045-00 |
from US $2.83 |
||
|
22
|
22
95817-08045-00 Bolt, Flange(Jn5) |
95817-08045-00 |
from US $1.07 |
||
|
23
|
23
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
23
|
23
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
24
|
24
95811-06020-00 Bolt, Flange |
95811-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
24
|
24
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
25
|
25
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
25
|
25
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
26
|
26
43G-2217A-00-00
Arm, Relay
|
43G-2217A-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
93317-32034-00 Bearing, Cylindrical |
93317-32034-00 |
from US $36.75 |
||
|
28
|
28
931-09200-29-00
Oil Seal
|
931-09200-29-00 |
— | ||
| replacement | |||||
|
28
|
28
93109-20076-00 Oil Seal |
93109-20076-00 |
from US $1.98 |
||
|
29
|
29
90387-147G6-00
Collar
|
90387-147G6-00 |
— | ||
|
30
|
30
90387-147G7-00 Collar |
90387-147G7-00 |
US $29.97 |
||
|
31
|
31
90109-12701-00
Bolt
|
90109-12701-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
33
|
33
90201-120A5-00 Washer, Plate |
90201-120A5-00 |
from US $4.39 |
||
|
34
|
34
90201-142M6-00 Washer, Plate |
90201-142M6-00 |
from US $3.68 |
||
|
35
|
35
901-85121-19-00 Nut, Self Locking (23X) |
901-85121-19-00 |
from US $7.79 |
||
|
36
|
36
23X-2217F-00-00
Rod, Connecting 1
|
23X-2217F-00-00 |
— | ||
|
37
|
37
93315-31732-00 Bearing, Cylindrical |
93315-31732-00 |
from US $42 |
||
|
38
|
38
55K-22129-00-00 Cover, Thrust 2 |
55K-22129-00-00 |
from US $7.79 |
||
|
39
|
39
90387-121H1-00 Collar (23X) |
90387-121H1-00 |
from US $16.43 |
||
|
40
|
40
90109-10702-00
Bolt
|
90109-10702-00 |
— | ||
|
41
|
41
937-00060-05-00 Nipple, Grease |
937-00060-05-00 |
from US $5.38 |
||
|
42
|
42
90201-120E6-00 Washer, Plate |
90201-120E6-00 |
from US $2.55 |
||
| replacement | |||||
|
42
|
42
90201-12027-00 Washer, Plate |
90201-12027-00 |
from US $2.32 |
||
|
43
|
43
90201-100E9-00 Washer, Plate |
90201-100E9-00 |
from US $2.55 |
||
| replacement | |||||
|
43
|
43
90201-10M05-00 Washer, Plate |
90201-10M05-00 |
from US $8.05 |
||
|
44
|
44
90185-10120-00 Nut, Self-Locking |
90185-10120-00 |
from US $3.83 |
||
|
45
|
45
90109-10703-00
Bolt
|
90109-10703-00 |
— | ||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
937-00060-05-00 Nipple, Grease |
937-00060-05-00 |
from US $5.38 |
||
|
47
|
47
90201-100F7-00 Washer (7A9) |
90201-100F7-00 |
from US $2.27 |
||
|
48
|
48
95611-10100-00 Nut, U |
95611-10100-00 |
from US $4.68 |
||
| replacement | |||||
|
48
|
48
95614-10100-00 Nut, U |
95614-10100-00 |
from US $4.68 |
||
|
49
|
49
5X8-W2231-01-00
Case, Chain
|
5X8-W2231-01-00 |
— | ||
| replacement | |||||
|
49
|
49
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
50
|
50
90159-06016-00 Screw, With Washer |
90159-06016-00 |
from US $1.56 |
||
|
51
|
51
5X8-2218A-00-00
Emblem, Rear Arm
|
5X8-2218A-00-00 |
— | ||
