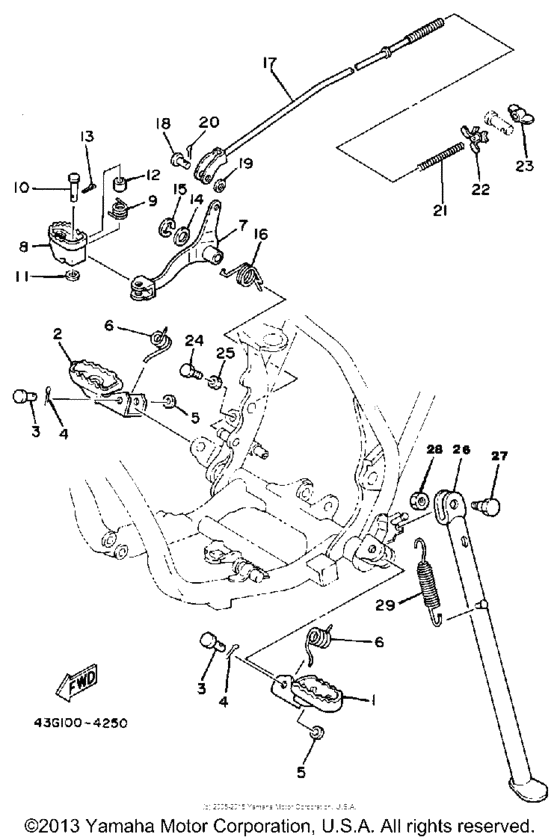

Stand-footrest Diagram Yamaha IT
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23X-27411-02-00 Footrest 1 |
23X-27411-02-00 |
US $48.34 |
||
| replacement | |||||
|
1
|
1
23X-27411-03-00
Footrest 1
|
23X-27411-03-00 |
— | ||
|
2
|
2
23X-27421-03-00
Footrest 2
|
23X-27421-03-00 |
— | ||
| replacement | |||||
|
2
|
2
23X-27421-04-00
Footrest 2
|
23X-27421-04-00 |
— | ||
|
3
|
3
90240-10101-00 Pin, Clevis |
90240-10101-00 |
from US $7.23 |
||
|
4
|
4
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
4
|
4
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
5
|
5
90201-10119-00 Washer, Plate |
90201-10119-00 |
from US $1.42 |
||
|
6
|
6
90508-20583-00 Spring, Torsion |
90508-20583-00 |
from US $1.70 |
||
|
7
|
7
49T-27211-00-00
Pedal, Brake
|
49T-27211-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
5X8-27242-00-00
Pedal, Brake
|
5X8-27242-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90508-20451-00
Spring, Torsion
|
90508-20451-00 |
— | ||
|
10
|
10
91701-08032-00 Pin |
91701-08032-00 |
from US $3.68 |
||
|
11
|
11
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
12
|
12
90387-08762-00 Collar |
90387-08762-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90387-08785-00 Collar (7G5) |
90387-08785-00 |
from US $1.70 |
||
|
13
|
13
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
13
|
13
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
14
|
14
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
15
|
15
93430-09038-00 Circlip |
93430-09038-00 |
from US $2.83 |
||
|
16
|
16
90508-32662-00
Spring, Torsion
|
90508-32662-00 |
— | ||
|
17
|
17
43G-27231-00-00
Rod, Brake
|
43G-27231-00-00 |
— | ||
|
18
|
18
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
19
|
19
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
20
|
20
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
21
|
21
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
22
|
22
1W2-27239-00-00
Seat, Spring
|
1W2-27239-00-00 |
— | ||
|
23
|
23
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
24
|
24
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
24
|
24
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
24
|
24
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
25
|
25
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
25
|
25
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
26
|
26
43G-27311-00-33
Stand, Side
|
43G-27311-00-33 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
90109-08032-00 Bolt |
90109-08032-00 |
from US $5.10 |
||
|
28
|
28
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
28
|
28
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
29
|
29
90507-29009-00 Spring (460) |
90507-29009-00 |
from US $11.05 |
||
