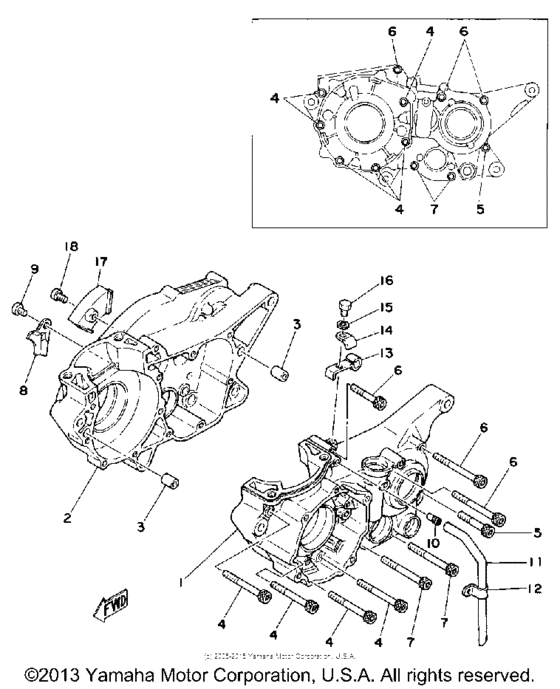

Crankcase Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X7-15111-00-00
Crankcase 1
|
2X7-15111-00-00 |
— | ||
|
2
|
2
2X7-15121-00-00
Crankcase 2
|
2X7-15121-00-00 |
— | ||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
4
|
4
91316-06065-00 Bolt (431) |
91316-06065-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
91317-06065-00 Bolt |
91317-06065-00 |
from US $1.50 |
||
|
5
|
5
91316-06045-00 Bolt |
91316-06045-00 |
from US $1.42 |
||
| replacements | |||||
|
5
|
5
901-1006X-81-00
Bolt, Hexagon Socket Head
|
901-1006X-81-00 |
— | ||
|
5
|
5
91317-06045-00 Bolt,socket |
91317-06045-00 |
from US $1.34 |
||
|
6
|
6
91316-06075-00 Bolt |
91316-06075-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
91317-06075-00 Bolt, Socket |
91317-06075-00 |
from US $1.50 |
||
|
7
|
7
913-16060-70-00
Bolt
|
913-16060-70-00 |
— | ||
| replacement | |||||
|
7
|
7
91317-06070-00 Bolt |
91317-06070-00 |
from US $1.50 |
||
|
8
|
8
2K7-15118-00-00
Holder
|
2K7-15118-00-00 |
— | ||
|
9
|
9
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.34 |
||
|
10
|
10
137-13115-00-00 Connector, Suction Pipe |
137-13115-00-00 |
US $3.26 |
||
| replacement | |||||
|
10
|
10
137-13115-01-00 Connector, Suction Pipe |
137-13115-01-00 |
from US $1.34 |
||
|
11
|
11
90445-08376-00 Hose (L330) |
90445-08376-00 |
from US $5.10 |
||
| replacement | |||||
|
11
|
11
904-45086-84-00 Hose (L340) |
904-45086-84-00 |
from US $5.10 |
||
|
12
|
12
904-62080-43-00
Clamp
|
904-62080-43-00 |
— | ||
|
13
|
13
2K7-15441-02-00
Holder, Clch Cable
|
2K7-15441-02-00 |
— | ||
|
14
|
14
90462-08042-00 Clamp |
90462-08042-00 |
from US $4.71 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
16
|
16
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.28 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
17
|
17
2K7-15113-00-00
Plate
|
2K7-15113-00-00 |
— | ||
|
18
|
18
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
