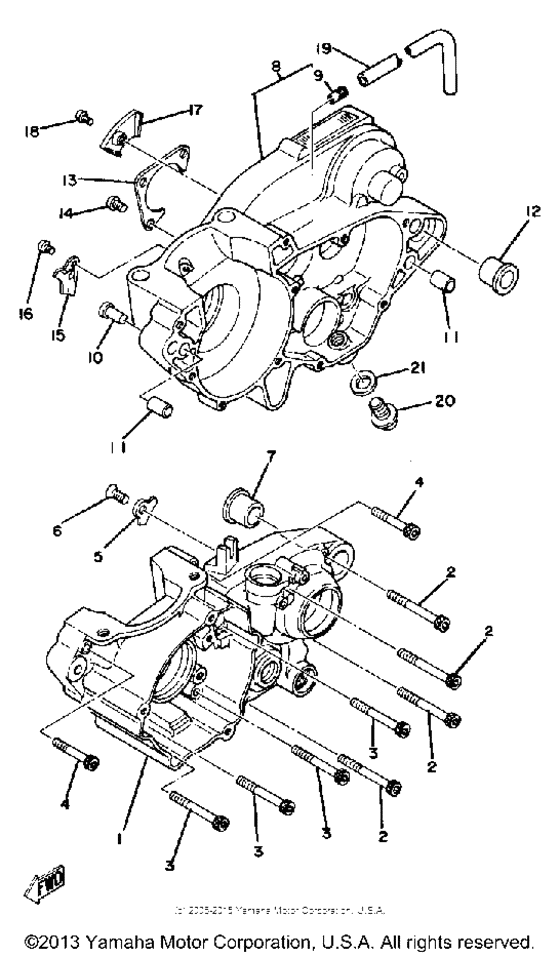

Crankcase Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
999-99013-83-00
Crankcase 1
|
999-99013-83-00 |
— | ||
|
2
|
2
913-16060-60-00
Bolt
|
913-16060-60-00 |
— | ||
| replacement | |||||
|
2
|
2
91317-06060-00 Bolt |
91317-06060-00 |
from US $1.42 |
||
|
3
|
3
913-16060-55-00
Bolt
|
913-16060-55-00 |
— | ||
| replacement | |||||
|
3
|
3
91317-06055-00 Bolt |
91317-06055-00 |
from US $1.42 |
||
|
4
|
4
913-16060-40-00
Bolt
|
913-16060-40-00 |
— | ||
| replacement | |||||
|
4
|
4
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
5
|
5
3AK-15383-01-00 Plate, Bearing Cover |
3AK-15383-01-00 |
from US $5.81 |
||
|
6
|
6
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
7
|
7
903-87167-76-00
Collar
|
903-87167-76-00 |
— | ||
|
8
|
8
3R4-W1512-01-00
Crankcase 2
|
3R4-W1512-01-00 |
— | ||
| replacement | |||||
|
8
|
8
3R4-15121-02-00
PISTON RINGSET 1ST
|
3R4-15121-02-00 |
— | ||
|
9
|
9
137-13115-00-00 Connector, Suction Pipe |
137-13115-00-00 |
US $3.26 |
||
| replacement | |||||
|
9
|
9
137-13115-01-00 Connector, Suction Pipe |
137-13115-01-00 |
from US $1.34 |
||
|
10
|
10
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
11
|
11
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
11
|
11
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
12
|
12
903-87167-76-00
Collar
|
903-87167-76-00 |
— | ||
|
13
|
13
3R4-15381-00-00 Plate, Bearing Cover |
3R4-15381-00-00 |
from US $6.53 |
||
|
14
|
14
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
15
|
15
3R4-15118-00-00 Holder |
3R4-15118-00-00 |
from US $3.19 |
||
|
16
|
16
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.34 |
||
|
17
|
17
3R4-15113-00-00
Plate
|
3R4-15113-00-00 |
— | ||
|
18
|
18
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
19
|
19
90445-08605-00 Hose (L1500) |
90445-08605-00 |
from US $10.91 |
||
| replacement | |||||
|
19
|
19
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
20
|
20
90340-12097-00 Plug, Straight Screw |
90340-12097-00 |
from US $1.70 |
||
|
21
|
21
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
