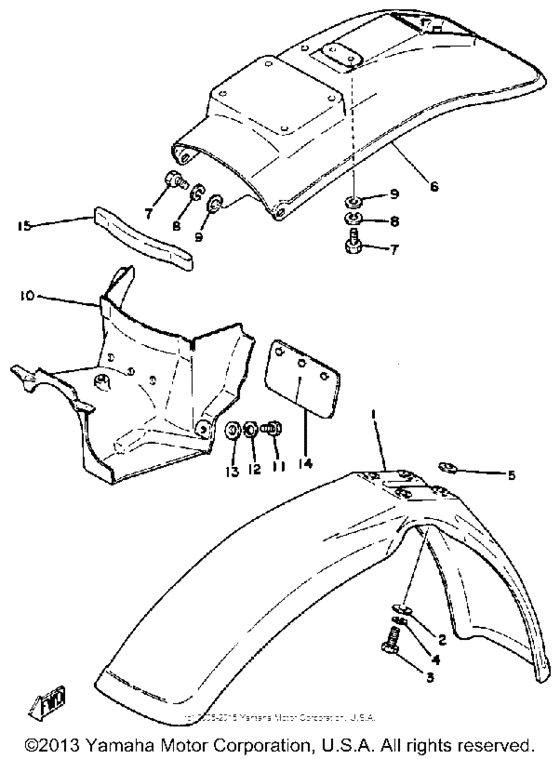

Front fender-rear fender Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R9-21511-11-00 Fender, Front |
3R9-21511-11-00 |
from US $52.31 |
||
|
2
|
2
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
2
|
2
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
3
|
3
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
3
|
3
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
90209-06187-00 Washer |
90209-06187-00 |
from US $1.70 |
||
|
6
|
6
4V5-21610-10-00
Fender, Rear
|
4V5-21610-10-00 |
— | ||
|
7
|
7
970-16060-16-00
Bolt
|
970-16060-16-00 |
— | ||
| replacement | |||||
|
7
|
7
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
9
|
9
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
9
|
9
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
10
|
10
4V5-21629-00-00
Guard, Mud
|
4V5-21629-00-00 |
— | ||
|
11
|
11
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
14
|
14
1M1-21621-00-00 Flap |
1M1-21621-00-00 |
from US $8.82 |
||
|
15
|
15
565-21746-00-00
Damper
|
565-21746-00-00 |
— | ||
