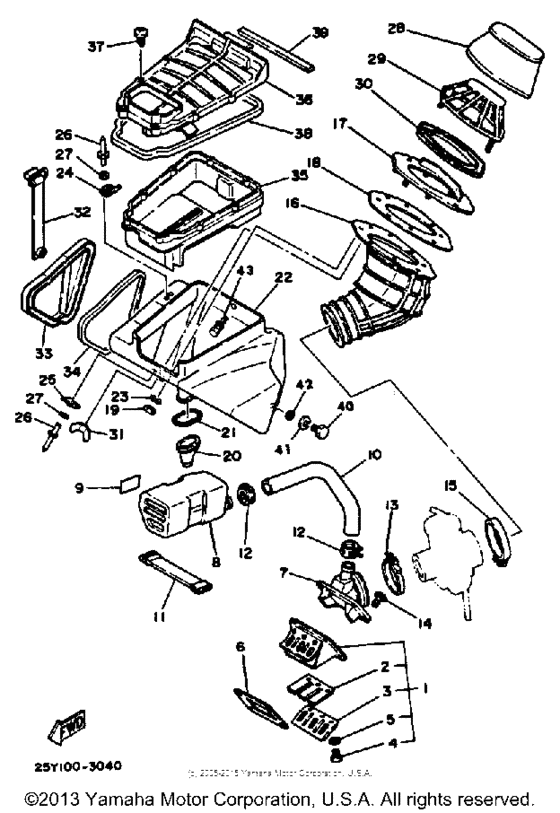

Intake Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R5-13610-00-00
Reed Valve Assembly
|
3R5-13610-00-00 |
— | ||
|
2
|
2
3R5-13613-00-00 Reed, Valve |
3R5-13613-00-00 |
from US $35.65 |
||
|
3
|
3
2X5-13616-00-00 Stopper, Reed Valve |
2X5-13616-00-00 |
from US $5.38 |
||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
80L-13621-01-00 Gasket, Valve Seat |
80L-13621-01-00 |
from US $4.96 |
||
|
7
|
7
25Y-13565-00-00
Joint, Carburetor
|
25Y-13565-00-00 |
— | ||
|
8
|
8
4V3-13581-00-00
Chamber, Air
|
4V3-13581-00-00 |
— | ||
|
9
|
9
4V3-1441K-00-00
Emblem
|
4V3-1441K-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
25Y-14465-00-00
Pipe
|
25Y-14465-00-00 |
— | ||
|
11
|
11
1E6-82131-00-00 Band, Battery |
1E6-82131-00-00 |
from US $14.51 |
||
|
12
|
12
90467-20050-00 Clip |
90467-20050-00 |
from US $1.28 |
||
|
13
|
13
904-60511-09-00
Clamp, Hose
|
904-60511-09-00 |
— | ||
|
14
|
14
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
15
|
15
904-60682-31-00 Clamp, Hose |
904-60682-31-00 |
US $33.10 |
||
|
16
|
16
26A-14453-00-00
Joint, Air Clnr 1
|
26A-14453-00-00 |
— | ||
|
17
|
17
26A-14477-00-00
Plate
|
26A-14477-00-00 |
— | ||
|
18
|
18
26A-14462-00-00
Seal
|
26A-14462-00-00 |
— | ||
|
19
|
19
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
19
|
19
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
20
|
20
22W-14457-00-00
Seal
|
22W-14457-00-00 |
— | ||
|
21
|
21
905-04030-33-00
Spring, Compression
|
905-04030-33-00 |
— | ||
|
22
|
22
26A-14411-01-00
Case, Air Cleaner 1
|
26A-14411-01-00 |
— | ||
|
23
|
23
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
24
|
24
26A-14436-00-00 Hook |
26A-14436-00-00 |
US $6.75 |
||
|
25
|
25
26A-14484-00-00
Plate, Clnr Cs Ftng
CS FTNG |
26A-14484-00-00 |
— | ||
|
26
|
26
90267-40077-00 Rivet, Blind |
90267-40077-00 |
from US $1.84 |
||
|
27
|
27
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
28
|
28
26A-W1442-00-00
Element, Air Clnr
|
26A-W1442-00-00 |
— | ||
|
29
|
29
26A-14458-00-00
Guide, Element
|
26A-14458-00-00 |
— | ||
|
30
|
30
26A-14459-00-00
Holder, Guide
|
26A-14459-00-00 |
— | ||
|
31
|
31
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
32
|
32
26A-14455-00-00
Band
|
26A-14455-00-00 |
— | ||
|
33
|
33
26A-14422-00-00
Cap, Cleaner Case 2
|
26A-14422-00-00 |
— | ||
|
34
|
34
26A-14457-00-00
Seal
|
26A-14457-00-00 |
— | ||
| replacement | |||||
|
34
|
34
39W-14452-00-00
Seal
|
39W-14452-00-00 |
— | ||
|
35
|
35
26A-14437-00-00
Duct
|
26A-14437-00-00 |
— | ||
|
36
|
36
26A-14412-00-00
Cap, Cleaner Case 1
|
26A-14412-00-00 |
— | ||
|
37
|
37
97780-40112-00 Screw, Oval Head Tapping |
97780-40112-00 |
from US $1.84 |
||
|
38
|
38
26A-14452-00-00
Seal
|
26A-14452-00-00 |
— | ||
|
39
|
39
26A-14467-00-00
Seal
|
26A-14467-00-00 |
— | ||
|
40
|
40
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
40
|
40
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
40
|
40
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
41
|
41
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
42
|
42
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
42
|
42
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
42
|
42
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
42
|
42
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
43
|
43
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
43
|
43
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
43
|
43
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
