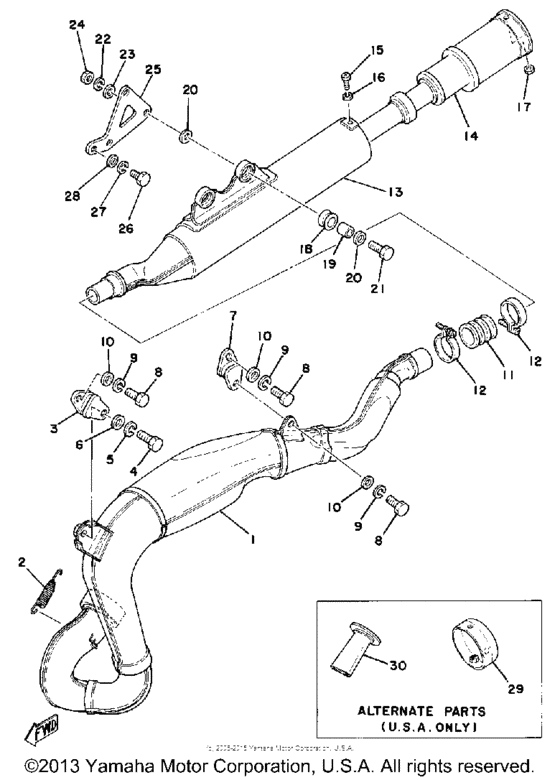

Exhaust Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- IT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X8-14610-01-00
Exhaust Pipe Assembly L
|
2X8-14610-01-00 |
— | ||
|
2
|
2
90507-20030-00 Spring, Tension |
90507-20030-00 |
from US $4.53 |
||
|
3
|
3
483-14781-02-00 Stay, Muffler 2 |
483-14781-02-00 |
from US $60.93 |
||
|
4
|
4
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
4
|
4
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
4
|
4
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
6
|
6
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
7
|
7
565-14771-00-00 Stay, Muffler 1 |
565-14771-00-00 |
from US $33.58 |
||
| replacement | |||||
|
7
|
7
565-14771-01-00 Stay, Muffler 1 |
565-14771-01-00 |
from US $20.34 |
||
|
8
|
8
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
11
|
11
1M1-14714-00-00 Gasket, Muffler |
1M1-14714-00-00 |
from US $47.11 |
||
|
12
|
12
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
12
|
12
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
13
|
13
2X7-14753-00-00
Silencer, Exhaust
|
2X7-14753-00-00 |
— | ||
|
14
|
14
2X8-14752-00-00
Pipe, Outlet
|
2X8-14752-00-00 |
— | ||
|
15
|
15
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
18
|
18
565-14747-00-00 Damper, Muffler |
565-14747-00-00 |
from US $7.49 |
||
|
19
|
19
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
20
|
20
90201-08753-00 Washer, Plate |
90201-08753-00 |
from US $1.98 |
||
| replacement | |||||
|
20
|
20
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $1.98 |
||
|
21
|
21
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
21
|
21
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
23
|
23
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
24
|
24
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
24
|
24
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
25
|
25
1W6-14781-00-00
Stay, Muffler 2
|
1W6-14781-00-00 |
— | ||
|
26
|
26
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
26
|
26
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
27
|
27
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
28
|
28
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
29
|
29
2X7-14787-00-00
Cap, Silencer
|
2X7-14787-00-00 |
— | ||
|
30
|
30
2X8-14634-00-00
Pipe, Choke
|
2X8-14634-00-00 |
— | ||
