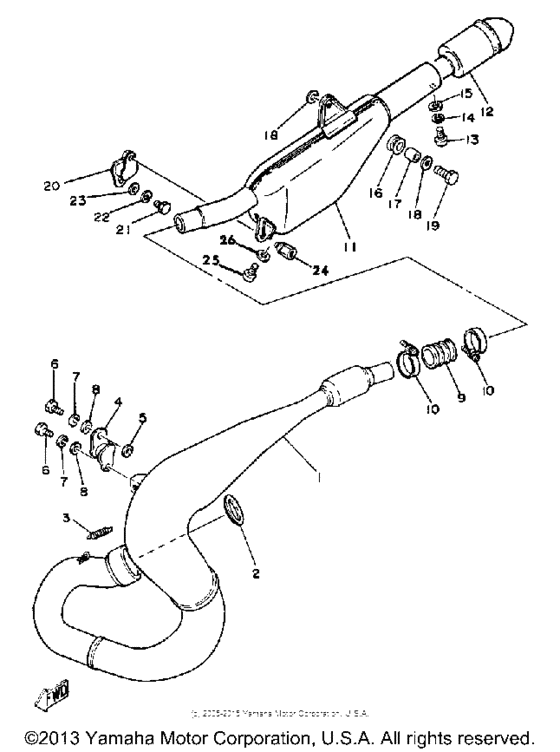

Exhaust Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V6-14610-00-00
Exhaust Pipe Assembly L
|
4V6-14610-00-00 |
— | ||
|
2
|
2
3R4-14613-00-00 Gasket, Exhaust Pipe |
3R4-14613-00-00 |
from US $9.35 |
||
|
3
|
3
90507-20030-00 Spring, Tension |
90507-20030-00 |
from US $4.53 |
||
|
4
|
4
3R4-14781-03-00 Stay, Muffler 2 |
3R4-14781-03-00 |
from US $62.24 |
||
| replacement | |||||
|
4
|
4
3R4-14781-04-00 Stay, Muffler 2 |
3R4-14781-04-00 |
US $40.18 |
||
|
5
|
5
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
6
|
6
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
6
|
6
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
7
|
7
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
8
|
8
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
9
|
9
1M1-14714-00-00 Gasket, Muffler |
1M1-14714-00-00 |
from US $47.11 |
||
|
10
|
10
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
10
|
10
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
11
|
11
4V5-14753-00-00
Silencer, Exhaust
|
4V5-14753-00-00 |
— | ||
|
12
|
12
4V5-14752-00-00
Pipe, Outlet
|
4V5-14752-00-00 |
— | ||
|
13
|
13
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
15
|
15
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
15
|
15
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
16
|
16
565-14747-00-00 Damper, Muffler |
565-14747-00-00 |
from US $7.49 |
||
|
17
|
17
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
18
|
18
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
19
|
19
90109-08512-00 Bolt |
90109-08512-00 |
from US $10.77 |
||
|
20
|
20
565-14771-00-00 Stay, Muffler 1 |
565-14771-00-00 |
from US $33.58 |
||
| replacement | |||||
|
20
|
20
565-14771-01-00 Stay, Muffler 1 |
565-14771-01-00 |
from US $20.34 |
||
|
21
|
21
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
21
|
21
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
24
|
24
90109-06551-00 Bolt |
90109-06551-00 |
from US $17.43 |
||
|
25
|
25
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
25
|
25
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
26
|
26
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
