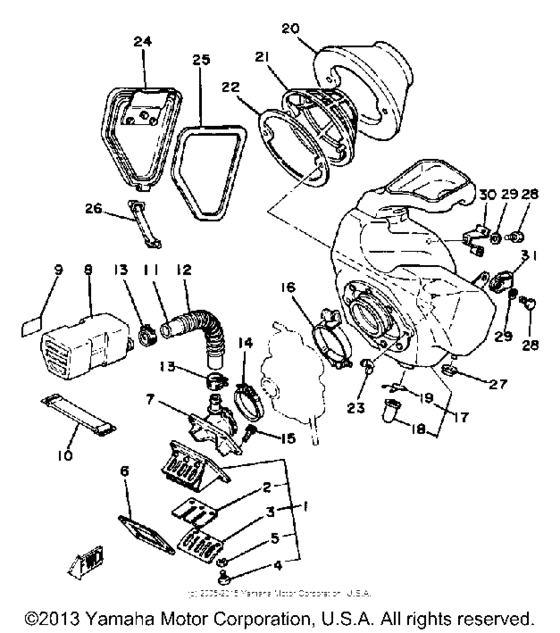

Air filter Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R5-13610-00-00
Reed Valve Assembly
|
3R5-13610-00-00 |
— | ||
|
2
|
2
3R5-13613-00-00 Reed, Valve |
3R5-13613-00-00 |
from US $35.65 |
||
|
3
|
3
2X5-13616-00-00 Stopper, Reed Valve |
2X5-13616-00-00 |
from US $5.38 |
||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
80L-13621-01-00 Gasket, Valve Seat |
80L-13621-01-00 |
from US $4.96 |
||
|
7
|
7
4V6-13565-00-00
Joint, Carburetor
|
4V6-13565-00-00 |
— | ||
|
8
|
8
4V6-13581-00-00
Chamber, Air
|
4V6-13581-00-00 |
— | ||
|
9
|
9
4V3-1441K-00-00
Emblem
|
4V3-1441K-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
1E6-82131-00-00 Band, Battery |
1E6-82131-00-00 |
from US $14.51 |
||
|
11
|
11
904-45246-10-00
Hose
|
904-45246-10-00 |
— | ||
|
12
|
12
905-01106-58-00
Spring, Compression
|
905-01106-58-00 |
— | ||
|
13
|
13
90467-23059-00 Clip |
90467-23059-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
90467-23177-00 Clip |
90467-23177-00 |
from US $1.56 |
||
|
14
|
14
904-60511-09-00
Clamp, Hose
|
904-60511-09-00 |
— | ||
|
15
|
15
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
16
|
16
904-60682-31-00 Clamp, Hose |
904-60682-31-00 |
US $33.10 |
||
|
17
|
17
4V5-W1441-00-00
Air Cleaner Case
|
4V5-W1441-00-00 |
— | ||
|
18
|
18
1W4-14457-00-00
Seal
|
1W4-14457-00-00 |
— | ||
|
19
|
19
90467-20030-00 Clip |
90467-20030-00 |
US $3.83 |
||
| replacement | |||||
|
19
|
19
90467-20M15-00 Clip |
90467-20M15-00 |
from US $3.83 |
||
|
20
|
20
3R4-W1442-01-00 Element, Air Clnr |
3R4-W1442-01-00 |
US $84.05 |
||
|
21
|
21
3R4-14458-00-00
Guide, Element
|
3R4-14458-00-00 |
— | ||
|
22
|
22
4V4-14459-00-00
Holder, Guide
|
4V4-14459-00-00 |
— | ||
|
23
|
23
90175-06008-00 Nut, Wing |
90175-06008-00 |
from US $2.55 |
||
| replacement | |||||
|
23
|
23
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
24
|
24
4V5-14412-00-00
Cap, Cleaner Case 1
|
4V5-14412-00-00 |
— | ||
|
25
|
25
5X5-14452-00-00
Seal
|
5X5-14452-00-00 |
— | ||
| replacement | |||||
|
25
|
25
39W-14452-00-00
Seal
|
39W-14452-00-00 |
— | ||
|
26
|
26
4V5-14455-00-00
Band
|
4V5-14455-00-00 |
— | ||
|
27
|
27
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
27
|
27
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
28
|
28
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
28
|
28
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
28
|
28
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
29
|
29
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
30
|
30
4V4-14484-00-00
Plate, Clnr Cs Ftng
CS FTNG |
4V4-14484-00-00 |
— | ||
|
31
|
31
4V4-14499-00-00
Stay 2
|
4V4-14499-00-00 |
— | ||
