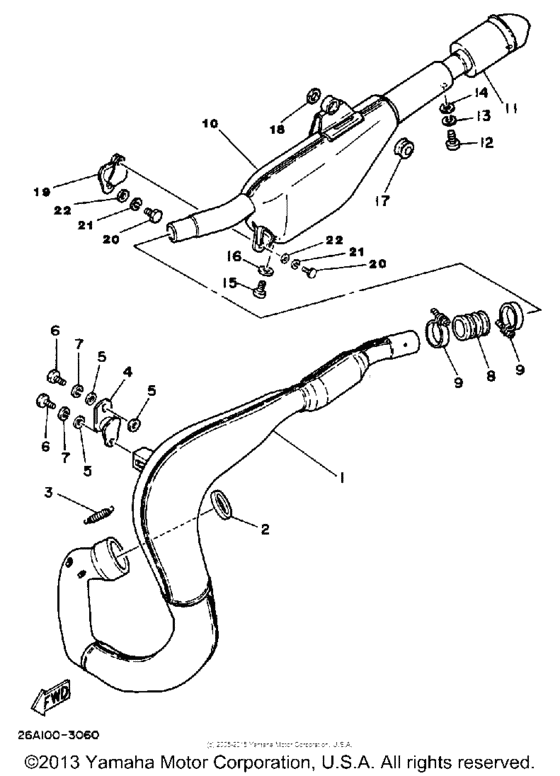

Exhaust Diagram Yamaha IT
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 490
- Model
- IT490
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26A-14610-00-00
Exhaust Pipe Assembly Lassembly
|
26A-14610-00-00 |
— | ||
|
2
|
2
3R4-14613-00-00 Gasket, Exhaust Pipe |
3R4-14613-00-00 |
from US $9.35 |
||
|
3
|
3
90507-20030-00 Spring, Tension |
90507-20030-00 |
from US $4.53 |
||
|
4
|
4
3R4-14781-03-00 Stay, Muffler 2 |
3R4-14781-03-00 |
from US $62.24 |
||
| replacement | |||||
|
4
|
4
3R4-14781-04-00 Stay, Muffler 2 |
3R4-14781-04-00 |
US $40.18 |
||
|
5
|
5
90201-08730-00 Washer, Plate |
90201-08730-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90201-087F0-00 Washer, Plate |
90201-087F0-00 |
from US $1.70 |
||
|
6
|
6
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
6
|
6
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
7
|
7
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
8
|
8
1M1-14714-00-00 Gasket, Muffler |
1M1-14714-00-00 |
from US $47.11 |
||
|
9
|
9
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
9
|
9
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
10
|
10
26A-14753-00-00
Silencer, Exhaust
|
26A-14753-00-00 |
— | ||
|
11
|
11
4V5-14752-00-00
Pipe, Outlet
|
4V5-14752-00-00 |
— | ||
|
12
|
12
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
15
|
15
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
15
|
15
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
16
|
16
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
17
|
17
90480-22269-00
Grommet
|
90480-22269-00 |
— | ||
|
18
|
18
90201-14218-00 Washer, Plate |
90201-14218-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $1.66 |
||
|
19
|
19
565-14771-00-00 Stay, Muffler 1 |
565-14771-00-00 |
from US $33.58 |
||
| replacement | |||||
|
19
|
19
565-14771-01-00 Stay, Muffler 1 |
565-14771-01-00 |
from US $20.34 |
||
|
20
|
20
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
20
|
20
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
20
|
20
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
