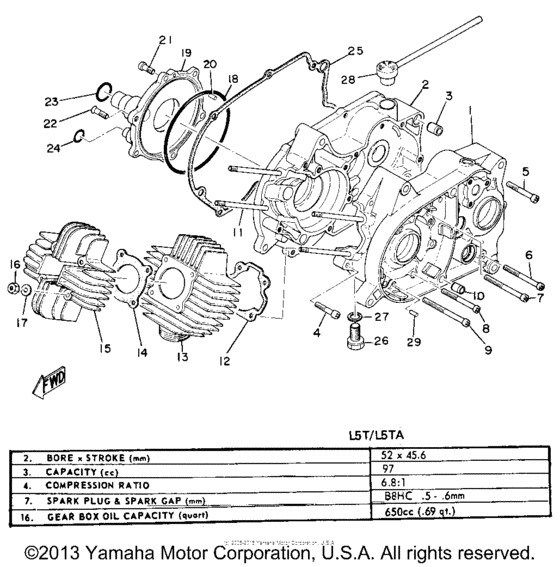

Crank case Diagram Yamaha L5
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 500
- Model
- L5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
234-15111-00-00
Crankcase 1
|
234-15111-00-00 |
— | ||
|
2
|
2
2N3-15121-00-00 Crankcase 2 |
2N3-15121-00-00 |
US $320.53 |
||
|
2
|
2
164-15121-01-00 No Longer Available |
164-15121-01-00 |
US $320.53 |
||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
4
|
4
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
5
|
5
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
6
|
6
925-80065-60-00
Screw, Pan Head (92580-06560-00
92580-06560-00 |
925-80065-60-00 |
— | ||
| replacement | |||||
|
6
|
6
985-80065-60-00 Screw, Pan Head (92580-06560-0092580-06560-00 |
985-80065-60-00 |
from US $7.51 |
||
|
7
|
7
98580-06565-00 Screw, Pan Head |
98580-06565-00 |
from US $7.23 |
||
|
8
|
8
98580-06055-00 Screw,panhead |
98580-06055-00 |
US $3.40 |
||
| replacement | |||||
|
8
|
8
98580-06555-00 Screw, Panhed (Gc2) |
98580-06555-00 |
from US $3.40 |
||
|
9
|
9
985-01060-70-00
Screw Pan Head
|
985-01060-70-00 |
— | ||
| replacement | |||||
|
9
|
9
98580-06570-00 Screw, Pan Head |
98580-06570-00 |
from US $6.52 |
||
|
10
|
10
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
10
|
10
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
10
|
10
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
11
|
11
90116-07035-00 Bolt, Stud |
90116-07035-00 |
from US $7.08 |
||
|
12
|
12
131-11351-00-00 Gasket, Cylinder |
131-11351-00-00 |
US $5.09 |
||
| replacement | |||||
|
12
|
12
131-11351-01-00 Gasket, Cylinder |
131-11351-01-00 |
US $5.09 |
||
|
13
|
13
212-11311-00-00
Cylinder 1
|
212-11311-00-00 |
— | ||
|
14
|
14
531-11181-00-00 Gasket, Cylinder Head 1 (166-11166-11 |
531-11181-00-00 |
from US $11.33 |
||
|
15
|
15
234-11111-01-00
Head, Cylinder 1
|
234-11111-01-00 |
— | ||
|
16
|
16
901-76070-03-00
Nut, Crown (166-11171-60)
166-11171-60 |
901-76070-03-00 |
— | ||
|
17
|
17
902-01070-77-00
Washer, Plate
|
902-01070-77-00 |
— | ||
|
18
|
18
180-13554-00-00 Ring, Rubber |
180-13554-00-00 |
from US $6.88 |
||
|
19
|
19
205-13551-00-00
Cover, Valve
|
205-13551-00-00 |
— | ||
|
20
|
20
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.69 |
||
|
21
|
21
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
21
|
21
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
22
|
22
927-03060-18-00
New Genuine Part
IN PRICE BOOK |
927-03060-18-00 |
— | ||
|
23
|
23
927-03060-18-00
New Genuine Part
IN PRICE BOOK |
927-03060-18-00 |
— | ||
|
24
|
24
93210-12014-00 O-Ring |
93210-12014-00 |
from US $4.96 |
||
|
25
|
25
164-15451-01-00 Gasket, Crcs Cover |
164-15451-01-00 |
from US $5.29 |
||
|
26
|
26
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
27
|
27
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
28
|
28
206-15371-00-00
Breather
|
206-15371-00-00 |
— | ||
|
29
|
29
93603-14026-00 Pin, Dowel |
93603-14026-00 |
from US $1.98 |
||
