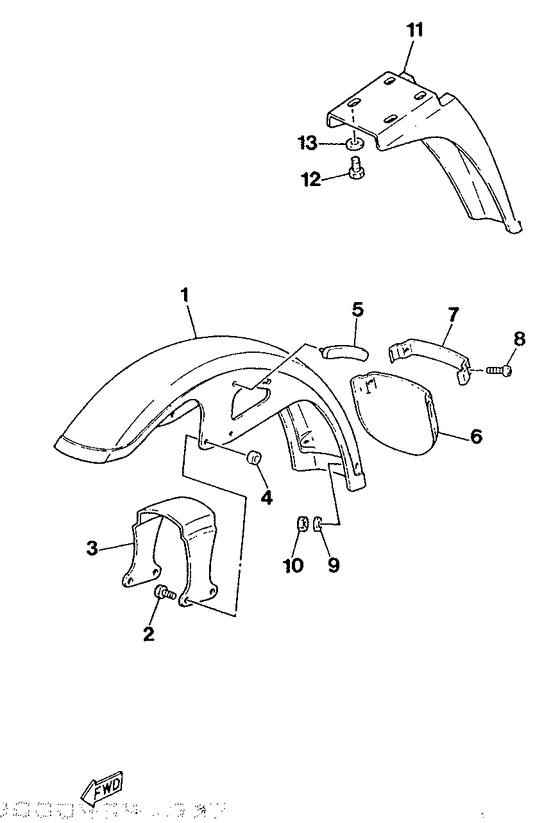

Fender Diagram Yamaha ME50 YAMY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3UD1
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- ME50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1TK-F1511-40-00
Fender, Front
Ur for yb |
1TK-F1511-40-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur for yb |
999-99999-99-00 |
— | ||
|
01
|
01
1TK-F1511-60-00
Fender, Front
Ur for w |
1TK-F1511-60-00 |
— | ||
|
01
|
01
1TK-F1511-70-00
Fender, Front
Ur for sedb |
1TK-F1511-70-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur for sedb |
999-99999-99-00 |
— | ||
|
02
|
02
97001-06016-00 Bolt |
97001-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
02
|
02
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
02
|
02
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
03
|
03
1TK-F1512-00-00
Bracket, Fender
|
1TK-F1512-00-00 |
— | ||
|
04
|
04
90387-07876-00
Collar
|
90387-07876-00 |
— | ||
|
05
|
05
1TK-F1518-00-00
Holder, Cable
|
1TK-F1518-00-00 |
— | ||
|
06
|
06
1TK-F1521-00-00
Flap, Front Fender
|
1TK-F1521-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
1TK-F1522-00-00
Band, Flap
|
1TK-F1522-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
08
|
08
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
08
|
08
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
09
|
09
90201-05721-00 Washer, Plate |
90201-05721-00 |
from US $1.98 |
||
| replacement | |||||
|
09
|
09
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
10
|
10
95306-05600-00 Nut |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
10
|
10
95317-05600-00 Nut |
95317-05600-00 |
from US $1.36 |
||
|
11
|
11
3UD-F1611-00-00
Fender, Rear
|
3UD-F1611-00-00 |
— | ||
|
12
|
12
97001-06012-00 Bolt, Hexagon |
97001-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
13
|
13
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
