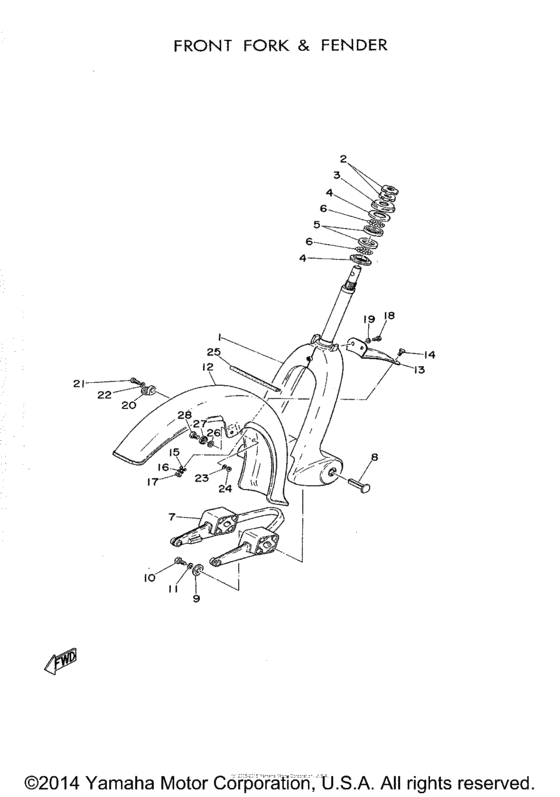

Front fork Diagram Yamaha MJ2
- Year
- 1962
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-23310-00-00
Front Fork Assy
|
102-23310-00-00 |
— | ||
|
2
|
2
102-23454-00-00
Nut, Fitting
|
102-23454-00-00 |
— | ||
|
3
|
3
102-23415-00-00
Cover, Ball Race
|
102-23415-00-00 |
— | ||
|
4
|
4
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
4
|
4
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
5
|
5
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
5
|
5
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
6
|
6
93501-04004-00 Ball1/4in. |
93501-04004-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
93501-04011-00 Ball1/4in. |
93501-04011-00 |
from US $1.34 |
||
|
7
|
7
102-23360-00-00
Arm Assy
|
102-23360-00-00 |
— | ||
|
8
|
8
102-23368-00-00
Stem, Square
|
102-23368-00-00 |
— | ||
|
8
|
8
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
8
|
8
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
8
|
8
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
9
|
9
102-23369-00-00
Washer, Square Stem
8.2-32-3.2 |
102-23369-00-00 |
— | ||
|
10
|
10
912-01080-18-00 Bolt, Hex |
912-01080-18-00 |
US $7.37 |
||
| replacement | |||||
|
10
|
10
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
11
|
11
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
12
|
12
102-21511-00-00
Fender,front
|
102-21511-00-00 |
— | ||
| replacements | |||||
|
12
|
12
102-21511-00-24
FENDER,FRONT
|
102-21511-00-24 |
— | ||
|
12
|
12
102-21511-00-33
New Genuine Part
|
102-21511-00-33 |
— | ||
|
13
|
13
102-21513-00-00
Stay,fender 1
|
102-21513-00-00 |
— | ||
| replacement | |||||
|
13
|
13
102-21513-00-81
STAY,FENDER 1
|
102-21513-00-81 |
— | ||
|
14
|
14
912-01060-15-00 Bolt |
912-01060-15-00 |
US $1.28 |
||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
15
|
15
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
16
|
16
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
18
|
18
91201-06010-00 Bolt |
91201-06010-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
19
|
19
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
20
|
20
102-21518-00-00
Holder, Wirw
|
102-21518-00-00 |
— | ||
|
21
|
21
92501-06015-00 Screw |
92501-06015-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
22
|
22
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
23
|
23
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
24
|
24
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
25
|
25
102-21517-00-00
Pad, Front Fender
|
102-21517-00-00 |
— | ||
|
26
|
26
102-28327-00-00 Washer, Plate |
102-28327-00-00 |
US $2.50 |
||
| replacement | |||||
|
26
|
26
90202-06013-00 Washer, Plate |
90202-06013-00 |
US $2.29 |
||
|
27
|
27
102-28323-00-00 Washer |
102-28323-00-00 |
US $1.84 |
||
| replacement | |||||
|
27
|
27
90209-06012-00 Washer |
90209-06012-00 |
from US $1.84 |
||
|
28
|
28
91201-06010-00 Bolt |
91201-06010-00 |
US $1.56 |
||
| replacement | |||||
|
28
|
28
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
