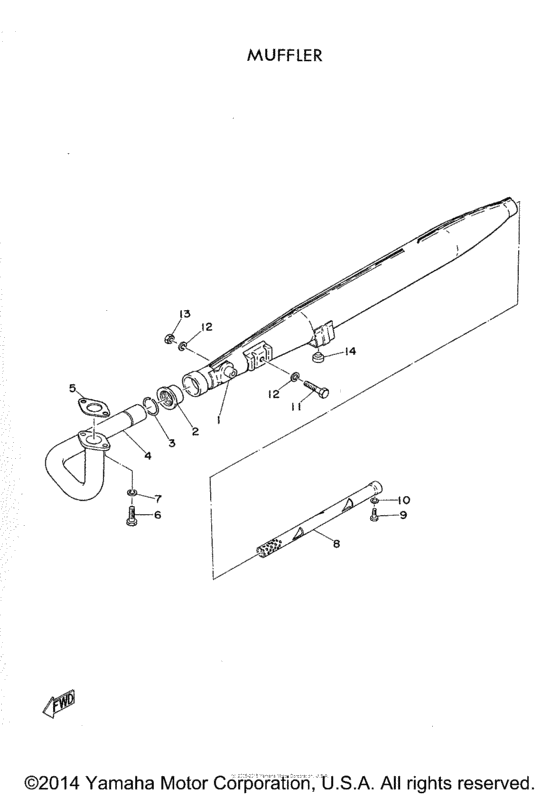

Exhaust Diagram Yamaha MJ2
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-14710-00-00
Muffler Assembly
|
102-14710-00-00 |
— | ||
|
2
|
2
102-14714-00-00
Gasket, Exhaust Pipe
|
102-14714-00-00 |
— | ||
|
3
|
3
103-14778-00-00
Ring, Stop
|
103-14778-00-00 |
— | ||
|
4
|
4
102-14611-00-00
Pipe, Exhaust
|
102-14611-00-00 |
— | ||
|
5
|
5
102-14613-00-00
Gasket, Exst Pipe
|
102-14613-00-00 |
— | ||
|
6
|
6
912-01060-15-00 Bolt |
912-01060-15-00 |
US $1.28 |
||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
102-14753-00-00
Silencer, Exhaust
|
102-14753-00-00 |
— | ||
|
9
|
9
912-01050-10-00 Bolt, Hexagon |
912-01050-10-00 |
US $1.84 |
||
| replacement | |||||
|
9
|
9
970-13050-10-00 Bolt |
970-13050-10-00 |
from US $0.83 |
||
|
10
|
10
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
929-01080-18-00
Bolt
|
929-01080-18-00 |
— | ||
|
12
|
12
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
13
|
13
928-01081-00-00 Nut |
928-01081-00-00 |
US $1.42 |
||
| replacements | |||||
|
13
|
13
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
13
|
13
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
14
|
14
102-27114-00-00 Stopper, Main Stand |
102-27114-00-00 |
US $15.58 |
||
| replacement | |||||
|
14
|
14
1M3-27114-00-00 Stopper, Main Stand |
1M3-27114-00-00 |
from US $10.89 |
||
