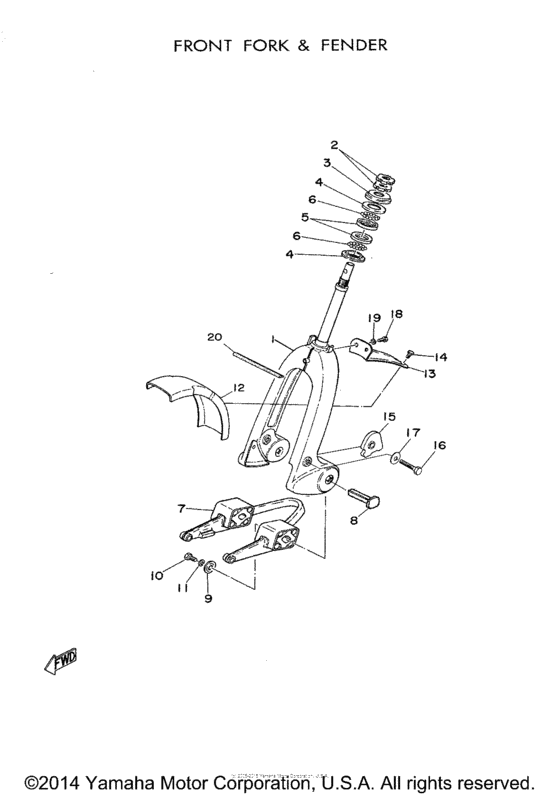

Front fork Diagram Yamaha MJ2
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
162-23310-00-00
Front Fork Assy
|
162-23310-00-00 |
— | ||
|
2
|
2
102-23454-00-00
Nut, Fitting
|
102-23454-00-00 |
— | ||
|
3
|
3
102-23415-00-00
Cover, Ball Race
|
102-23415-00-00 |
— | ||
|
4
|
4
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
4
|
4
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
5
|
5
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
5
|
5
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
6
|
6
93501-04004-00 Ball1/4in. |
93501-04004-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
93501-04011-00 Ball1/4in. |
93501-04011-00 |
from US $1.34 |
||
|
7
|
7
162-23360-00-00
Arm Assy
|
162-23360-00-00 |
— | ||
| replacement | |||||
|
7
|
7
102-23360-00-00
Arm Assy
|
102-23360-00-00 |
— | ||
|
8
|
8
102-23368-00-00
Stem, Square
|
102-23368-00-00 |
— | ||
|
9
|
9
102-23369-00-00
Washer, Square Stem
8.2-32-3.2 |
102-23369-00-00 |
— | ||
|
10
|
10
912-01080-18-00 Bolt, Hex |
912-01080-18-00 |
US $7.37 |
||
| replacement | |||||
|
10
|
10
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
11
|
11
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
12
|
12
162-21510-00-00
Fender,front
|
162-21510-00-00 |
— | ||
| replacement | |||||
|
12
|
12
162-21510-00-24
SHK/ABS ASY,REAR
|
162-21510-00-24 |
— | ||
|
13
|
13
102-21513-00-00
Stay,fender 1
|
102-21513-00-00 |
— | ||
| replacement | |||||
|
13
|
13
102-21513-00-81
STAY,FENDER 1
|
102-21513-00-81 |
— | ||
|
14
|
14
912-01060-15-00 Bolt |
912-01060-15-00 |
US $1.28 |
||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
15
|
15
162-23376-00-00
Stopper, Front Arm
|
162-23376-00-00 |
— | ||
|
16
|
16
912-01080-40-00
Bolt, Hexagon
|
912-01080-40-00 |
— | ||
| replacement | |||||
|
16
|
16
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.13 |
||
|
17
|
17
929-01082-00-00
Washer, Plain
|
929-01082-00-00 |
— | ||
| replacements | |||||
|
17
|
17
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
17
|
17
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
18
|
18
91201-06010-00 Bolt |
91201-06010-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
19
|
19
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
20
|
20
102-21517-00-00
Pad, Front Fender
|
102-21517-00-00 |
— | ||
