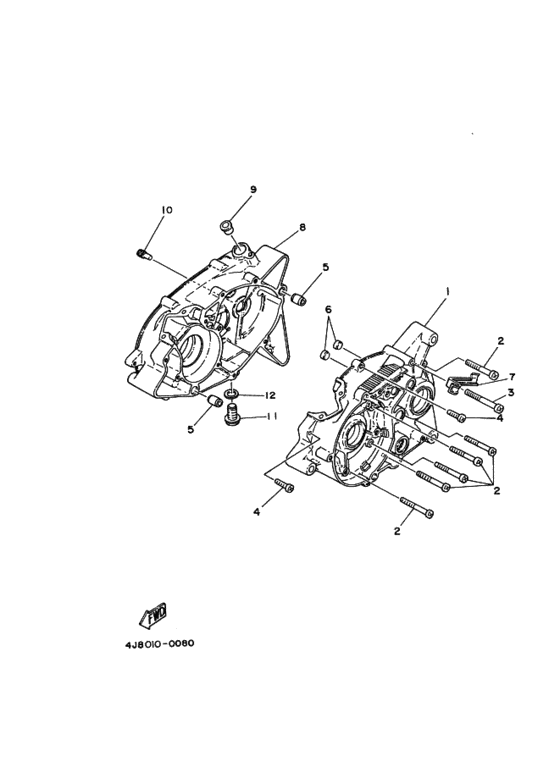

Crankcase Diagram Yamaha MR50
- Year
- 1980
- Colour
- Muscat Green (MUG; 005G)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3T2-15111-00-00
Crankcase 1
クランクケース １; |
3T2-15111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3T2-15111-01-00
Crankcase 1
クランクケース １; |
3T2-15111-01-00 |
— | ||
|
2
|
2
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
2
|
2
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
3
|
3
925-01060-55-00
Screw,panhead
|
925-01060-55-00 |
— | ||
| replacement | |||||
|
3
|
3
985-80065-55-00 Screw, Panhed (Gc2) |
985-80065-55-00 |
from US $3.74 |
||
|
4
|
4
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
4
|
4
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
5
|
5
918-30220-16-00 Pin, Dowel |
918-30220-16-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
6
|
6
90334-12009-00
Plug, Straight
|
90334-12009-00 |
— | ||
|
7
|
7
3T2-15484-00-00
Clamp 2
|
3T2-15484-00-00 |
— | ||
|
8
|
8
3T2-15121-00-00
Crankcase 2
クランクケース ２; |
3T2-15121-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3T2-15121-02-00 Crankcase 2クランクケース ２; |
3T2-15121-02-00 |
US $635.92 |
||
|
9
|
9
90381-08002-00 Bush, Solid |
90381-08002-00 |
from US $3.04 |
||
|
10
|
10
492-15387-00-00
Stopper
|
492-15387-00-00 |
— | ||
|
11
|
11
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
12
|
12
90430-12038-00 Gasket |
90430-12038-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
