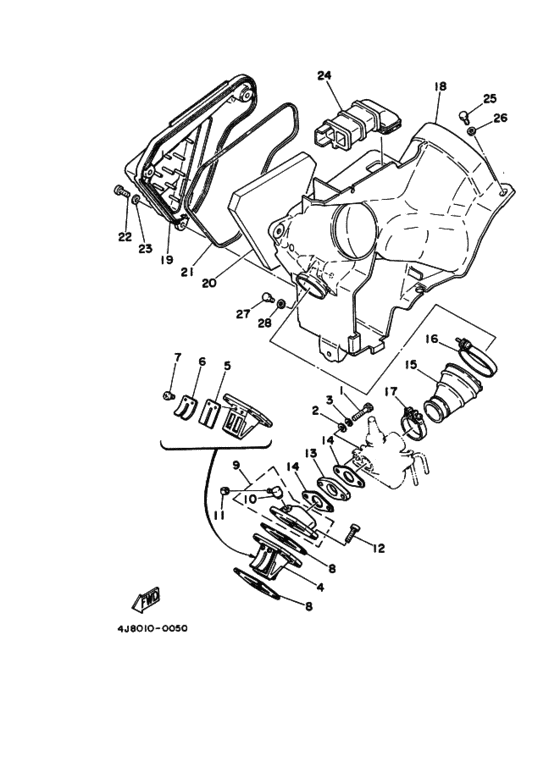

Intake Diagram Yamaha MR50
- Year
- 1980
- Colour
- Muscat Green (MUG; 005G)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
1
|
1
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
2
|
2
92901-06200-00 Washer, Plainワツシヤ，プレーン; |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.18 |
||
|
3
|
3
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
304-13610-00-00 Reed Valve Assyリードバルブアセンブリ; |
304-13610-00-00 |
from US $55.49 |
||
|
5
|
5
304-13613-01-00 Reed, Valve．リード，バルブ; |
304-13613-01-00 |
from US $15.55 |
||
|
6
|
6
304-13616-00-00 Stopper, Reed Valve．ストツパ，リードバルブ; |
304-13616-00-00 |
US $7.93 |
||
|
7
|
7
97602-03108-00 Screw, Pan Head．スクリユ，パンヘツドウイズワツシヤ; |
97602-03108-00 |
from US $1.21 |
||
| replacement | |||||
|
7
|
7
98580-03008-00 Screw, Pan Head．スクリユ，パンヘツドウイズワツシヤ; |
98580-03008-00 |
from US $1.21 |
||
|
8
|
8
304-13621-00-00 Gasket,valve Seatガスケツト，バルブシート; |
304-13621-00-00 |
from US $4.46 |
||
| replacement | |||||
|
8
|
8
3VM-13621-00-00 BODY,FLOAT CHMBR 1ガスケツト，バルブシート; |
3VM-13621-00-00 |
from US $3.67 |
||
|
9
|
9
3T2-13565-00-00
Joint, Carburetor
|
3T2-13565-00-00 |
— | ||
|
10
|
10
278-13552-02-00
Nozzle
．ノズル; |
278-13552-02-00 |
— | ||
| replacement | |||||
|
10
|
10
3XV-13741-00-00
Nozzle
．ノズル; |
3XV-13741-00-00 |
— | ||
|
11
|
11
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
12
|
12
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
13
|
13
353-13555-00-00
Manifold, Intake
マニホールド，インテーク; |
353-13555-00-00 |
— | ||
|
14
|
14
353-13556-00-00 Gasket, Manifoldガスケツト，マニホールド; |
353-13556-00-00 |
from US $5.15 |
||
| replacement | |||||
|
14
|
14
3FD-13556-00-00 Gasket, Manifoldガスケツト，マニホールド; |
3FD-13556-00-00 |
from US $5.81 |
||
|
15
|
15
3T2-14453-00-00
Joint, Air Cleaner 1
ジヨイント，エアクリーナ １; |
3T2-14453-00-00 |
— | ||
|
16
|
16
90460-51059-00 Clamp, Hoseクランプ，ホース; |
90460-51059-00 |
from US $7.65 |
||
|
17
|
17
90460-33087-00 Clamp, Hoseクランプ，ホース; |
90460-33087-00 |
from US $6.28 |
||
|
18
|
18
3T2-14411-01-00
Case, Air Cleaner 1
ケース，エアクリーナー １; |
3T2-14411-01-00 |
— | ||
|
19
|
19
3T2-14412-00-00
Cap, Cleaner Case 1
キヤツプ，クリーナーケース １; |
3T2-14412-00-00 |
— | ||
|
20
|
20
3T2-14451-00-00 Element, Air Cleanerエレメント，エアクリーナー; |
3T2-14451-00-00 |
US $18.31 |
||
|
21
|
21
3T2-14452-00-00 Sealシール; |
3T2-14452-00-00 |
US $8.93 |
||
| replacement | |||||
|
21
|
21
51Y-14462-00-00 Sealシール; |
51Y-14462-00-00 |
from US $11.93 |
||
|
22
|
22
92501-06018-00 Screw, Pan Head |
92501-06018-00 |
US $3.26 |
||
| replacement | |||||
|
22
|
22
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
23
|
23
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
902-01061-A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
23
|
23
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
24
|
24
3T2-14437-00-00 Duct |
3T2-14437-00-00 |
US $17.92 |
||
|
25
|
25
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
25
|
25
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
25
|
25
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
26
|
26
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
26
|
26
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
27
|
27
97301-06012-00 Bolt |
97301-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
27
|
27
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
27
|
27
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
28
|
28
92901-06200-00 Washer, Plainワツシヤ，プレーン; |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.18 |
||
