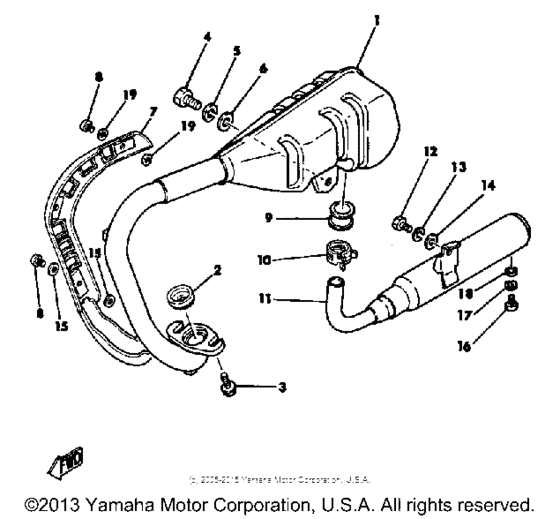

Exhaust Diagram Yamaha PW50 Zinger
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 500
- Model
- PW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4X4-14610-01-00 Exhaust Pipe Assy 1 |
4X4-14610-01-00 |
from US $151.98 |
||
|
2
|
2
2E9-14613-10-00 Gasket, Exst Pipe |
2E9-14613-10-00 |
from US $10.19 |
||
|
2
|
2
4X4-14623-10-00 Gasket, Exhaust Pipe |
4X4-14623-10-00 |
from US $12.18 |
||
| replacement | |||||
|
2
|
2
4X4-14623-11-00 GASKET EXHAUST PIPE |
4X4-14623-11-00 |
from US $4.72 |
||
|
3
|
3
90153-06057-00 Screw, Hexagon |
90153-06057-00 |
from US $1.84 |
||
| replacement | |||||
|
3
|
3
90153-06061-00 Screw, Hexagon |
90153-06061-00 |
from US $1.84 |
||
|
4
|
4
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
4
|
4
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
4
|
4
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
6
|
6
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
7
|
7
4X4-14708-00-00 Protector Assy |
4X4-14708-00-00 |
from US $30.60 |
||
|
8
|
8
98580-05006-00 Screw, Pan Head |
98580-05006-00 |
from US $1.36 |
||
|
9
|
9
4X4-14714-00-00 Gasket, Muffler |
4X4-14714-00-00 |
from US $7.49 |
||
|
10
|
10
90467-22048-00 Clip |
90467-22048-00 |
from US $1.28 |
||
|
11
|
11
4X4-14750-00-00 Silencer Assy |
4X4-14750-00-00 |
from US $123.65 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
12
|
12
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
12
|
12
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
15
|
15
90430-05008-00 Washer, Protector |
90430-05008-00 |
from US $1.48 |
||
| replacement | |||||
|
15
|
15
3RV-14766-00-00 Washer, Protector |
3RV-14766-00-00 |
from US $1.36 |
||
|
16
|
16
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
16
|
16
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
19
|
19
90430-04167-00 Washer, Plate |
90430-04167-00 |
from US $1.84 |
||
| replacement | |||||
|
19
|
19
90202-04214-00 Washer, Plate |
90202-04214-00 |
from US $1.84 |
||
