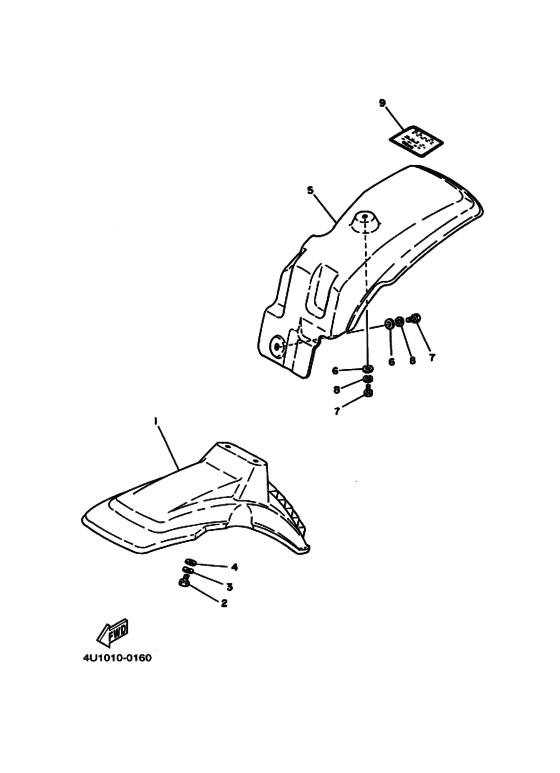

ﾌﾛﾝﾄﾌｴﾝﾀﾞ. ﾘﾔﾌｴﾝﾀﾞ Diagram Yamaha Q Pocket
- Year
- 1980
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 4U10
- Sales region
- Japan (010)
- Color Variant
- D
- Model
- QA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4U1-21511-01-36
Fender, Front
ホワイト |
4U1-21511-01-36 |
— | ||
|
2
|
2
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
2
|
2
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
3
|
3
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
90201-06050-00 Washer, Plateワツシヤ，プレート; |
90201-06050-00 |
US $1.56 |
||
| replacement | |||||
|
4
|
4
90201-06M08-00 Washer, Plateワツシヤ，プレート; |
90201-06M08-00 |
from US $1.56 |
||
|
5
|
5
4U1-21611-01-36
Fender, Rear
ホワイト |
4U1-21611-01-36 |
— | ||
|
6
|
6
90201-06050-00 Washer, Plateワツシヤ，プレート; |
90201-06050-00 |
US $1.56 |
||
| replacement | |||||
|
6
|
6
90201-06M08-00 Washer, Plateワツシヤ，プレート; |
90201-06M08-00 |
from US $1.56 |
||
|
7
|
7
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
7
|
7
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
7
|
7
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
8
|
8
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
4U1-21668-01-00
Label, Tire
|
4U1-21668-01-00 |
— | ||
