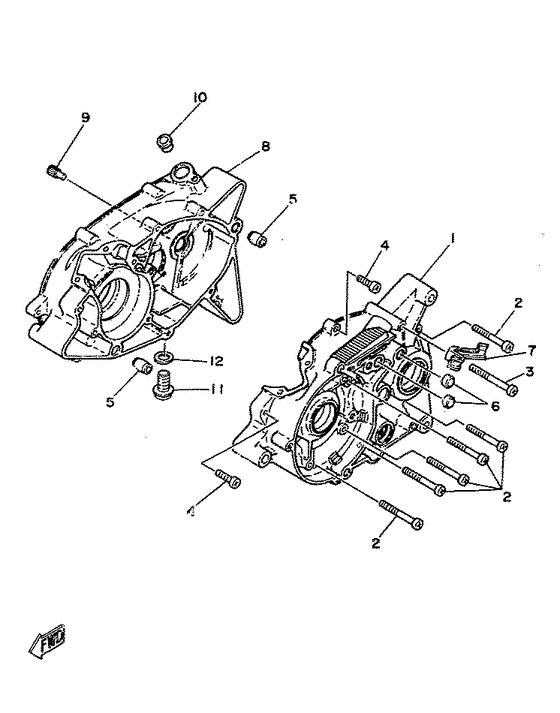

Crankcase Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3M8-15111-00-00
Crankcase 1
|
3M8-15111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
02
|
02
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
03
|
03
925-01060-55-00
Screw,panhead
|
925-01060-55-00 |
— | ||
| replacement | |||||
|
03
|
03
985-80065-55-00 Screw, Panhed (Gc2) |
985-80065-55-00 |
from US $3.74 |
||
|
04
|
04
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
04
|
04
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
05
|
05
918-30220-16-00 Pin, Dowel |
918-30220-16-00 |
from US $1.42 |
||
| replacement | |||||
|
05
|
05
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
06
|
06
90334-12009-00
Plug, Straight
|
90334-12009-00 |
— | ||
|
07
|
07
3T2-15484-01-00
Clamp 2
|
3T2-15484-01-00 |
— | ||
|
08
|
08
3M8-15121-00-00
Crankcase 2
|
3M8-15121-00-00 |
— | ||
| replacement | |||||
|
08
|
08
3M8-15121-01-00
Crankcase 2
|
3M8-15121-01-00 |
— | ||
|
09
|
09
492-15387-00-00
Stopper
|
492-15387-00-00 |
— | ||
|
10
|
10
90381-08002-00 Bush, Solid |
90381-08002-00 |
from US $3.04 |
||
|
11
|
11
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
12
|
12
90430-12038-00 Gasket |
90430-12038-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
