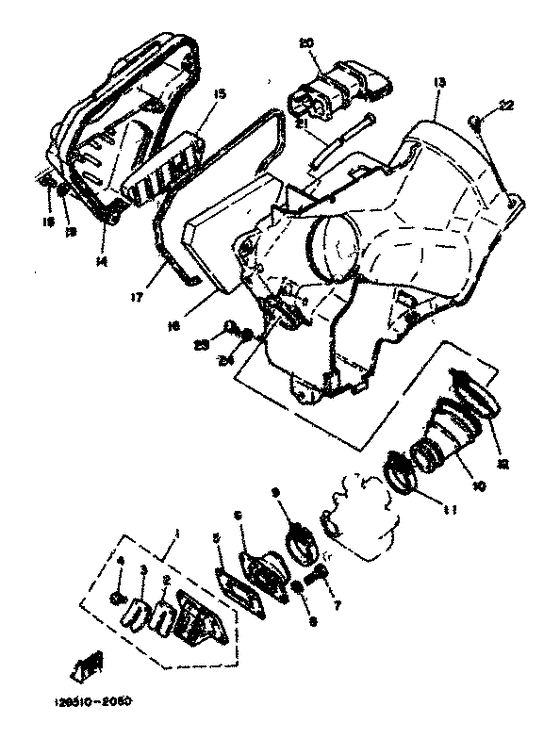

Intake Diagram Yamaha RD
- Year
- 1982
- Model code
- 12G
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- RD80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
314-13610-01-00 Reed Valve Assembly |
314-13610-01-00 |
from US $134.50 |
||
| replacement | |||||
|
01
|
01
53V-13610-00-00 Reed Valve Assembly |
53V-13610-00-00 |
from US $217.13 |
||
|
02
|
02
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
03
|
03
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
03
|
03
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
04
|
04
97602-03108-00 Screw, Pan Head |
97602-03108-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
05
|
05
314-13621-02-00 Gasket, Valve Seat |
314-13621-02-00 |
from US $4.11 |
||
| replacement | |||||
|
05
|
05
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $4.11 |
||
|
06
|
06
4U5-13565-00-00
Joint, Carburetor
|
4U5-13565-00-00 |
— | ||
|
07
|
07
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
07
|
07
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
08
|
08
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
08
|
08
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
08
|
08
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
09
|
09
90460-36174-00
Clamp, Hose
|
90460-36174-00 |
— | ||
|
10
|
10
12X-14453-00-00
Joint, Air Cleaner 1
|
12X-14453-00-00 |
— | ||
|
11
|
11
90460-39052-00 Clamp, Hose |
90460-39052-00 |
from US $7.79 |
||
| replacement | |||||
|
11
|
11
90460-41191-00 Clamp, Hose (5R2) |
90460-41191-00 |
from US $7.79 |
||
|
12
|
12
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
13
|
13
12G-14411-00-00
Case, Air Cleaner 1
|
12G-14411-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
12G-14412-00-00
Cap, Cleaner Case 1
|
12G-14412-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
12G-14458-00-00
Guide
|
12G-14458-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
3T2-14451-00-00 Element, Air Cleaner |
3T2-14451-00-00 |
US $18.31 |
||
|
17
|
17
3T2-14452-00-00 Seal |
3T2-14452-00-00 |
US $8.93 |
||
| replacement | |||||
|
17
|
17
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $10.54 |
||
|
18
|
18
92506-06018-00 Screw |
92506-06018-00 |
US $1.42 |
||
| replacement | |||||
|
18
|
18
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
19
|
19
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
20
|
20
3T2-14437-00-00 Duct |
3T2-14437-00-00 |
US $17.92 |
||
|
21
|
21
12G-14419-00-00
Pipe
|
12G-14419-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
22
|
22
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
23
|
23
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
23
|
23
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
24
|
24
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
24
|
24
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
