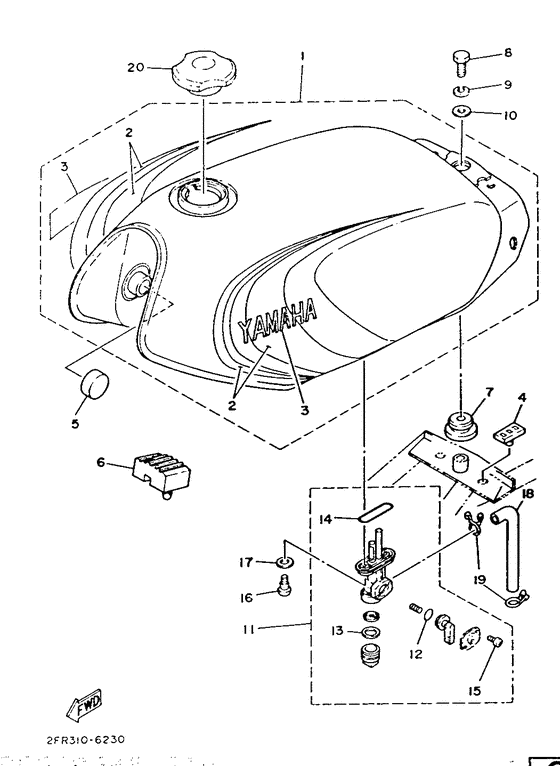

Fuel tank Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G0-24110-00-W4
Fuel Tank Comp
Ur yamaha black |
5G0-24110-00-W4 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur yamaha black |
999-99999-99-00 |
— | ||
|
01
|
01
5G0-24110-T0-07
Fuel Tank Comp
Ur clean white |
5G0-24110-T0-07 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur clean white |
999-99999-99-00 |
— | ||
|
01
|
01
5G0-24110-T0-08
Fuel Tank Comp
Ur chappy red |
5G0-24110-T0-08 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur chappy red |
999-99999-99-00 |
— | ||
|
02
|
02
27L-24240-00-00
Graphic Set
Ur for yb |
27L-24240-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Ur for yb |
999-99999-99-00 |
— | ||
|
02
|
02
27L-24240-10-00
Graphic Set
Ur for w |
27L-24240-10-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Ur for w |
999-99999-99-00 |
— | ||
|
02
|
02
27L-24240-20-00
Graphic Set
Ur for cpr |
27L-24240-20-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Ur for cpr |
999-99999-99-00 |
— | ||
|
03
|
03
2J0-24161-20-00 Emblem 1 |
2J0-24161-20-00 |
US $21.35 |
||
|
04
|
04
4H7-24723-00-00
Damper, Seat
|
4H7-24723-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
122-24181-00-00 Damper, Locating 1 |
122-24181-00-00 |
from US $3.51 |
||
|
06
|
06
4G3-24181-00-00
Damper, Locating 1
|
4G3-24181-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
904-80222-31-00
Grommet
|
904-80222-31-00 |
— | ||
|
08
|
08
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
08
|
08
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
08
|
08
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
09
|
09
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
09
|
09
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
90209-06096-00 Washer |
90209-06096-00 |
from US $1.84 |
||
|
11
|
11
23F-24500-00-00 Fuel Cock Assy 1 |
23F-24500-00-00 |
from US $31.03 |
||
| replacement | |||||
|
11
|
11
23F-24500-20-00 Fuel Cock Assy 1 |
23F-24500-20-00 |
from US $34.12 |
||
|
12
|
12
4X8-24534-00-00 Seal, Cock |
4X8-24534-00-00 |
from US $7.37 |
||
|
13
|
13
4X8-24565-00-00
Gasket
|
4X8-24565-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4X8-24565-10-00 GASKET |
4X8-24565-10-00 |
from US $7.79 |
||
|
14
|
14
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $2.08 |
||
|
15
|
15
4X8-24535-00-00 Screw, Lever Fitting |
4X8-24535-00-00 |
US $5.45 |
||
|
16
|
16
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
17
|
17
902-02060-10-00
Washer Plate 178147660000
|
902-02060-10-00 |
— | ||
| replacement | |||||
|
17
|
17
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
18
|
18
4U7-24317-00-00 Pipe 7 |
4U7-24317-00-00 |
US $9.92 |
||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
20
|
20
5G0-24610-00-00 Cap Assy |
5G0-24610-00-00 |
from US $32.49 |
||
| replacement | |||||
|
20
|
20
36X-24610-10-00 Cap Assy |
36X-24610-10-00 |
from US $42.10 |
||
