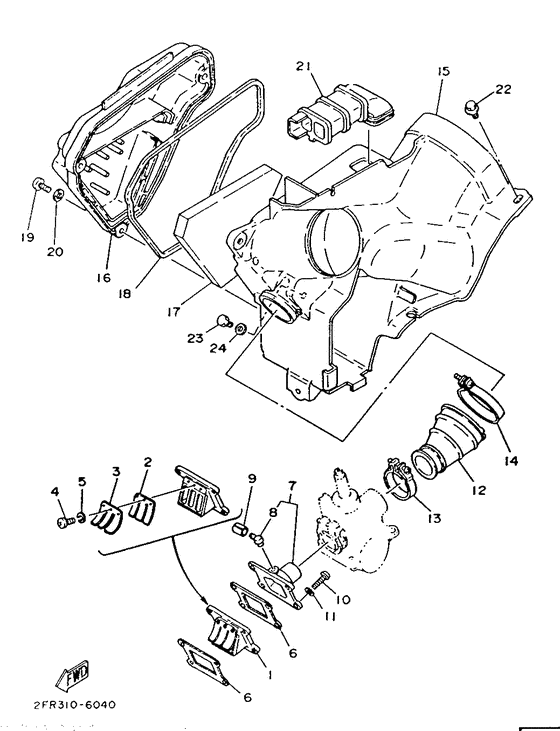

Intake Diagram Yamaha RD
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2FR
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- RD50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G1-13610-00-00 Reed Valve Assembly |
5G1-13610-00-00 |
US $110.43 |
||
|
02
|
02
2A3-13613-00-00
Reed, Valve
|
2A3-13613-00-00 |
— | ||
|
03
|
03
2A3-13616-00-00
Stopper, Reed Valve
|
2A3-13616-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
05
|
05
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
06
|
06
353-13621-00-00 Gasket, Valve Seat |
353-13621-00-00 |
from US $5.38 |
||
| replacement | |||||
|
06
|
06
3MT-13621-00-00 Gasket, Valve Seat |
3MT-13621-00-00 |
from US $6.94 |
||
|
07
|
07
374-13565-00-00
Joint, Carburetor (367-13565-00
|
374-13565-00-00 |
— | ||
|
08
|
08
278-13552-02-00
Nozzle
|
278-13552-02-00 |
— | ||
| replacement | |||||
|
08
|
08
3XV-13741-00-00
Nozzle
|
3XV-13741-00-00 |
— | ||
|
09
|
09
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
10
|
10
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
5G1-14453-00-00
Joint, Air Cleaner 1
|
5G1-14453-00-00 |
— | ||
|
13
|
13
90460-33087-00 Clamp, Hose |
90460-33087-00 |
from US $6.28 |
||
|
14
|
14
90460-51069-00
Clamp, Hose
|
90460-51069-00 |
— | ||
|
15
|
15
1MK-14411-00-00
Case, Air Cleaner 1
|
1MK-14411-00-00 |
— | ||
| replacement | |||||
|
15
|
15
36N-14411-00-00
Case, Air Cleaner 1
|
36N-14411-00-00 |
— | ||
|
16
|
16
5G1-14412-00-00
Cap, Cleaner Case 1
|
5G1-14412-00-00 |
— | ||
|
17
|
17
3T2-14451-00-00 Element, Air Cleaner |
3T2-14451-00-00 |
US $18.31 |
||
|
18
|
18
3T2-14452-00-00 Seal |
3T2-14452-00-00 |
US $8.93 |
||
| replacement | |||||
|
18
|
18
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $10.54 |
||
|
19
|
19
92506-06016-00 Screw |
92506-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
20
|
20
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
21
|
21
3T2-14437-00-00 Duct |
3T2-14437-00-00 |
US $17.92 |
||
|
22
|
22
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
22
|
22
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
23
|
23
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
23
|
23
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
24
|
24
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
24
|
24
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
