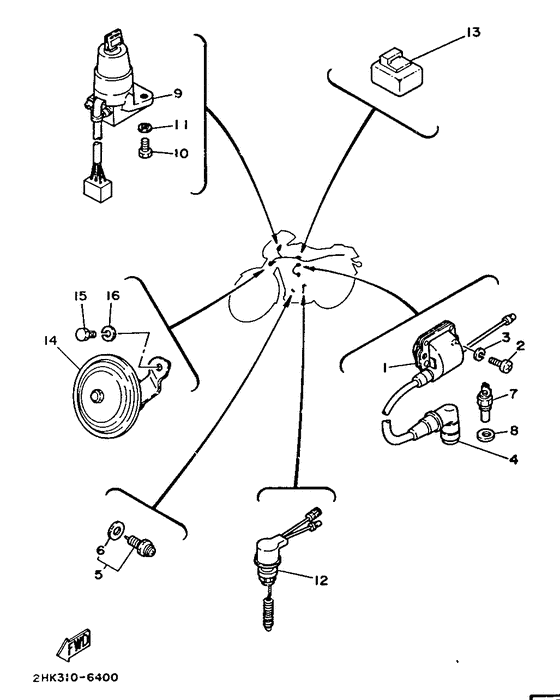

Electrical 2 Diagram Yamaha RD
- Year
- 1986
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 2HK
- Sales region
- England (999)
- Engine Capacity
- 125
- Model
- RD125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
34X-82310-M0-00 Ignition Coil Assy |
34X-82310-M0-00 |
US $89.39 |
||
| replacements | |||||
|
01
|
01
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
01
|
01
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
01
|
01
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
01
|
01
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
US $83.79 |
||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
US $83.79 |
||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
US $83.79 |
||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
US $83.79 |
||
|
02
|
02
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
02
|
02
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
03
|
03
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
04
|
04
1M1-82370-21-00 Plug Cap AssyWith noise suppressor |
1M1-82370-21-00 |
from US $28.34 |
||
| replacement | |||||
|
04
|
04
8DG-82370-00-00 Plug Cap AssyWith noise suppressor |
8DG-82370-00-00 |
from US $28.34 |
||
|
05
|
05
341-82540-01-00
Neutral Switch Assy
|
341-82540-01-00 |
— | ||
| replacements | |||||
|
05
|
05
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
05
|
05
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
06
|
06
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
06
|
06
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
07
|
07
10V-83591-00-00
Thermo Unit
|
10V-83591-00-00 |
— | ||
|
08
|
08
90430-10164-00 Gasket |
90430-10164-00 |
from US $1.56 |
||
|
09
|
09
31K-82501-45-00
Main Switch Steering Lock
|
31K-82501-45-00 |
— | ||
| replacement | |||||
|
09
|
09
1GM-82501-31-00 Main Switch Steering Lock |
1GM-82501-31-00 |
US $237.82 |
||
|
10
|
10
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
10
|
10
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
10
|
10
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
5R2-82530-00-00 Stop Switch Assy |
5R2-82530-00-00 |
from US $28.73 |
||
| replacements | |||||
|
12
|
12
5R2-82530-02-00 Stop Switch Assembly |
5R2-82530-02-00 |
from US $16.02 |
||
|
12
|
12
5R2-82530-03-00 Stop Switch Assy |
5R2-82530-03-00 |
US $26.26 |
||
|
13
|
13
5Y3-83350-20-00 Flasher Relay Assy |
5Y3-83350-20-00 |
US $50.15 |
||
| replacement | |||||
|
13
|
13
34L-83350-20-00 Flasher Relay Assy |
34L-83350-20-00 |
from US $30.31 |
||
|
14
|
14
25G-83371-00-00 Horn |
25G-83371-00-00 |
from US $58.17 |
||
|
15
|
15
97301-08014-00 Bolt |
97301-08014-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
