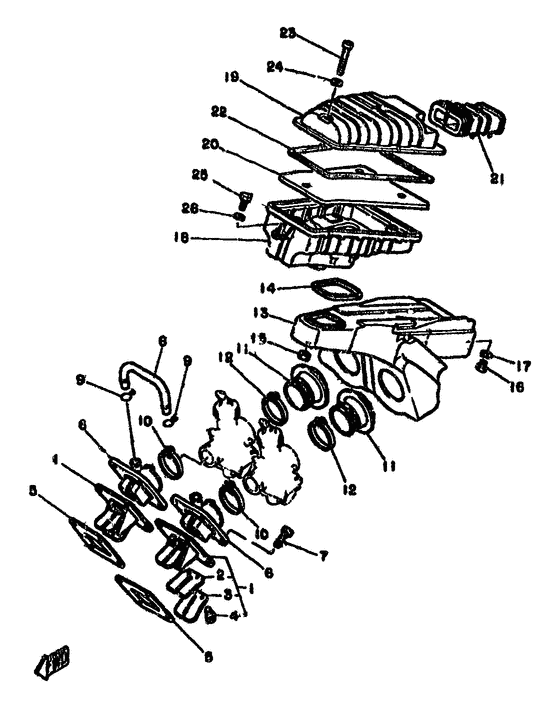

Intake Diagram Yamaha RD
- Year
- 1981
- Model code
- 4L1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-13610-01-00 Reed Valve Assy |
4L0-13610-01-00 |
US $276.32 |
||
| replacement | |||||
|
1
|
1
345-13610-20-00 Reed Valve Assy |
345-13610-20-00 |
from US $266.45 |
||
|
2
|
2
4L0-13613-00-00 Reed, Valve |
4L0-13613-00-00 |
US $46.70 |
||
| replacement | |||||
|
2
|
2
345-13613-70-00 Reed, Valve |
345-13613-70-00 |
from US $46.70 |
||
|
3
|
3
345-13616-70-00 Stopper, Reed Valve |
345-13616-70-00 |
from US $21.99 |
||
|
4
|
4
97602-03108-00 Screw, Pan Head |
97602-03108-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
314-13621-02-00 Gasket, Valve Seat |
314-13621-02-00 |
from US $4.11 |
||
| replacement | |||||
|
5
|
5
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $2.32 |
||
|
6
|
6
2R9-13565-00-00 Joint, Carburetor |
2R9-13565-00-00 |
US $139.54 |
||
| replacement | |||||
|
6
|
6
2R9-13565-01-00 Joint, Carburetor |
2R9-13565-01-00 |
US $139.54 |
||
|
7
|
7
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
7
|
7
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
8
|
8
2R9-14465-00-00
Pipe
|
2R9-14465-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90467-15012-00 Clip |
90467-15012-00 |
from US $1.56 |
||
|
10
|
10
90460-44108-00 Clamp, Hose |
90460-44108-00 |
from US $10.06 |
||
| replacement | |||||
|
10
|
10
90450-44046-00 Hose Clamp Assy |
90450-44046-00 |
from US $5.96 |
||
|
11
|
11
4L0-14453-00-00 Joint, Air Cleaner 1 |
4L0-14453-00-00 |
US $36.20 |
||
|
12
|
12
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $2.98 |
||
|
13
|
13
4L0-14441-00-00
Silencer, Intake 2
|
4L0-14441-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
4L0-14452-00-00
Seal
|
4L0-14452-00-00 |
— | ||
|
15
|
15
95702-06100-00 Nut, Flange |
95702-06100-00 |
from US $1.13 |
||
| replacement | |||||
|
15
|
15
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
16
|
16
97301-06010-00 Bolt |
97301-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
17
|
17
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
18
|
18
4L0-14411-00-00
Case, Air Cleaner 1
|
4L0-14411-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99015-68-00
Case Set (4L0)
|
999-99015-68-00 |
— | ||
|
19
|
19
4L0-14412-00-00
Cap, Cleaner Case 1
|
4L0-14412-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
4L0-14451-00-00 Element, Air Cleaner |
4L0-14451-00-00 |
US $10.63 |
||
|
21
|
21
4L0-14437-00-00
Duct
|
4L0-14437-00-00 |
— | ||
|
22
|
22
4L0-14457-01-00 Seal |
4L0-14457-01-00 |
from US $8.93 |
||
| replacement | |||||
|
22
|
22
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $3.32 |
||
|
23
|
23
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
23
|
23
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
24
|
24
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
24
|
24
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
25
|
25
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
25
|
25
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
25
|
25
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
26
|
26
90201-06336-00 Washer, Plate |
90201-06336-00 |
US $1.56 |
||
| replacement | |||||
|
26
|
26
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
