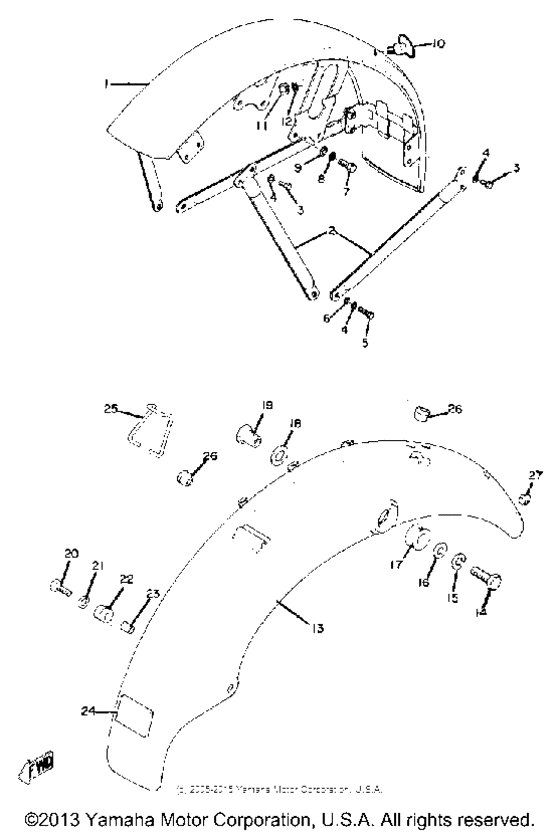

Front fender rear fender Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 250
- Model
- RD250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
351-21510-00-93
Fender, Front
|
351-21510-00-93 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
351-21513-00-00
Stay, Fender 1
|
351-21513-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
3
|
3
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
5
|
5
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
7
|
7
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
7
|
7
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
9
|
9
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
10
|
10
174-21518-00-00 Holder, Cable |
174-21518-00-00 |
US $12.89 |
||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
351-21610-00-93
Fender, Rear
|
351-21610-00-93 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
970-23100-35-00
Bolt,with Washer
|
970-23100-35-00 |
— | ||
| replacement | |||||
|
14
|
14
97070-10035-00 Bolt |
97070-10035-00 |
from US $6.66 |
||
|
15
|
15
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
16
|
16
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
17
|
17
168-21639-00-00 Damper 2 |
168-21639-00-00 |
from US $2 |
||
|
18
|
18
90201-15239-00
Washer, Plate
|
90201-15239-00 |
— | ||
|
19
|
19
901-79101-23-00
Nut, Spec''l Shape
|
901-79101-23-00 |
— | ||
|
20
|
20
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
20
|
20
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
21
|
21
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
22
|
22
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
23
|
23
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
23
|
23
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
24
|
24
214-21268-00-00
Seal
|
214-21268-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
278-21336-00-00
Clamp, Wire Hrnes 2
|
278-21336-00-00 |
— | ||
|
26
|
26
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
27
|
27
170-21746-00-00 Damper 2Damper,cleaner stopper |
170-21746-00-00 |
from US $3.68 |
||
| replacement | |||||
|
27
|
27
5A8-21639-00-00 Damper 2 |
5A8-21639-00-00 |
from US $3.68 |
||
