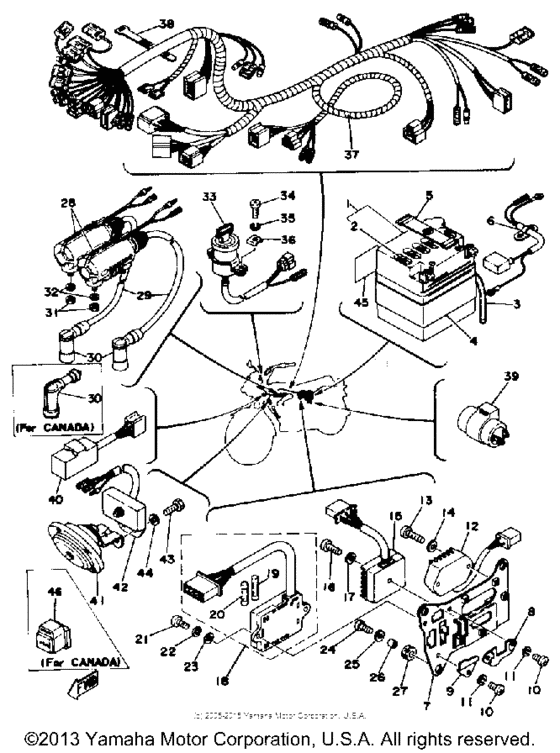

Electrical Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTY-12N55-A3-B0
12N5.5A3B Yuasa Bat
|
BTY-12N55-A3-B0 |
— | ||
| replacement | |||||
|
1
|
1
12N-55A3B-Y0-00
CB3L-A GS-T BATTERY
|
12N-55A3B-Y0-00 |
— | ||
|
2
|
2
104-82111-20-00
Cap, Battery
|
104-82111-20-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
90445-08047-00 Hose (L1500) |
90445-08047-00 |
from US $10.91 |
||
| replacement | |||||
|
3
|
3
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
4
|
4
1UA-82124-00-00
Band, Battery
|
1UA-82124-00-00 |
— | ||
|
5
|
5
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
5
|
5
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
6
|
6
1A0-82117-00-00
Wire, Lead
|
1A0-82117-00-00 |
— | ||
|
7
|
7
1A0-21543-01-00
Plate 1
|
1A0-21543-01-00 |
— | ||
|
8
|
8
1A0-21544-00-00
Collar 1
|
1A0-21544-00-00 |
— | ||
|
9
|
9
1A0-21545-00-00
Plate 3
|
1A0-21545-00-00 |
— | ||
|
10
|
10
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
1A0-81910-20-00
Voltage Reg Assembly
|
1A0-81910-20-00 |
— | ||
|
13
|
13
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
13
|
13
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
15
|
15
1L9-81970-60-00
Rectifier Assembly (1A0-81970-2
1A0-81970-2 |
1L9-81970-60-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
1A0-81970-2 |
999-99999-99-00 |
— | ||
|
16
|
16
925-03062-00-00
Screw, Pan Head
IN PRICE BOOK |
925-03062-00-00 |
— | ||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
1J7-82170-40-00
Fuse Box Assembly
|
1J7-82170-40-00 |
— | ||
|
19
|
19
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
19
|
19
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
20
|
20
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
21
|
21
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
21
|
21
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
22
|
22
92903-05100-00 Washer, Spring |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
22
|
22
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
23
|
23
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
24
|
24
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
24
|
24
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
25
|
25
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
26
|
26
90387-062N2-00 Collar |
90387-062N2-00 |
from US $1.42 |
||
|
27
|
27
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
28
|
28
1A0-82310-10-00
Ignition Coil Assembly
|
1A0-82310-10-00 |
— | ||
|
29
|
29
137-82341-01-00 Cord, Hight Tension 1 |
137-82341-01-00 |
US $47.50 |
||
|
30
|
30
56J-82370-00-00 Plug Cap AssyFOR U.S.A. |
56J-82370-00-00 |
from US $16.43 |
||
|
30
|
30
512-82370-10-00 Plug Cap AssemblyFOR CANADA |
512-82370-10-00 |
from US $44.80 |
||
| replacement | |||||
|
30
|
30
7KA-82370-00-00 Plug Cap AssyFOR CANADA |
7KA-82370-00-00 |
from US $52.92 |
||
|
31
|
31
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
32
|
32
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
33
|
33
584-82508-40-00
Main Switch Assembly
FOR U.S.A. |
584-82508-40-00 |
— | ||
|
33
|
33
1A0-82508-50-00
Main Switch Assembly
FOR CANADA |
1A0-82508-50-00 |
— | ||
|
34
|
34
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
34
|
34
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
34
|
34
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $1.34 |
||
|
35
|
35
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
36
|
36
533-82517-00-00
Washer, Special
|
533-82517-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
1A0-82590-62-00
Wire Harness Assembly
FOR U.S.A. |
1A0-82590-62-00 |
— | ||
|
37
|
37
1A0-82590-50-00
New Genuine Part
IN PRICE BOOK FOR CANADA N/A |
1A0-82590-50-00 |
— | ||
|
38
|
38
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
39
|
39
2F0-83350-70-00
Flasher Relay Assemblyassembly
|
2F0-83350-70-00 |
— | ||
| replacement | |||||
|
39
|
39
2NV-83350-00-00
Flasher Relay Assy
|
2NV-83350-00-00 |
— | ||
|
40
|
40
1A0-83395-03-00
Flasher Cancel Unit
|
1A0-83395-03-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
1A0-83371-21-00
Horn
|
1A0-83371-21-00 |
— | ||
|
42
|
42
1A0-85370-10-00
Resistor Assembly
|
1A0-85370-10-00 |
— | ||
|
43
|
43
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
43
|
43
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
43
|
43
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.28 |
||
|
43
|
43
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
44
|
44
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
45
|
45
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
45
|
45
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
360-81590-10-00
New Genuine Part
IN PRICE BOOK FOR CANADA N/A |
360-81590-10-00 |
— | ||
