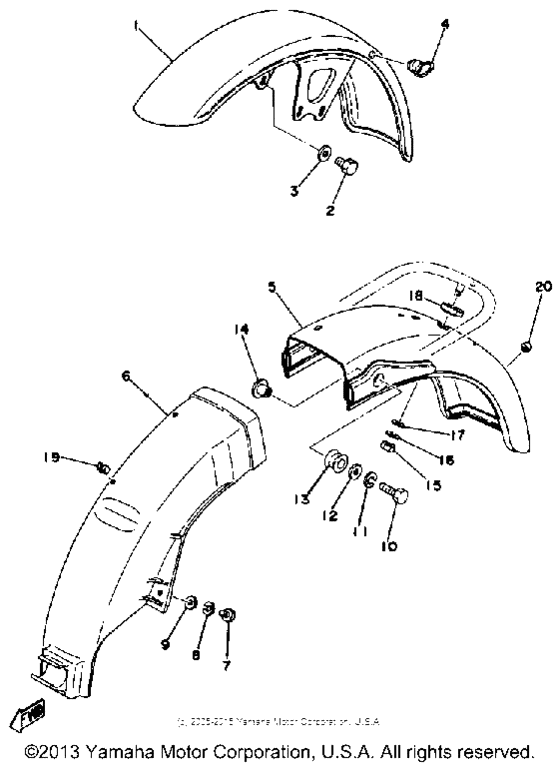

Front fender - rear fender Diagram Yamaha RD
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-21510-02-93
Fender, Front
|
1A0-21510-02-93 |
— | ||
|
2
|
2
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
2
|
2
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
3
|
3
902-01080-97-00
Washer, Plate
|
902-01080-97-00 |
— | ||
|
4
|
4
1A0-21518-00-00 Holder, Cable |
1A0-21518-00-00 |
from US $7.79 |
||
|
5
|
5
1A0-21610-01-93
Fender, Rear
|
1A0-21610-01-93 |
— | ||
|
6
|
6
1A0-21629-01-00
Guard, Mud
|
1A0-21629-01-00 |
— | ||
|
7
|
7
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
7
|
7
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
7
|
7
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
973-01100-35-00 Bolt,with Washer |
973-01100-35-00 |
from US $6.66 |
||
| replacement | |||||
|
10
|
10
97070-10035-00 Bolt |
97070-10035-00 |
from US $6.66 |
||
|
11
|
11
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
12
|
12
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
13
|
13
168-21639-00-00 Damper 2 |
168-21639-00-00 |
from US $2 |
||
|
14
|
14
901-79102-20-00
Nut, Spec''l Shape
|
901-79102-20-00 |
— | ||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
90201-06697-00 Washer, Plate |
90201-06697-00 |
from US $1.84 |
||
|
18
|
18
341-21638-00-00
Damper 1
|
341-21638-00-00 |
— | ||
|
19
|
19
90464-08020-00 Clamp |
90464-08020-00 |
from US $1.98 |
||
|
20
|
20
170-21746-00-00 Damper 2Damper,cleaner stopper |
170-21746-00-00 |
from US $3.68 |
||
| replacement | |||||
|
20
|
20
5A8-21639-00-00 Damper 2 |
5A8-21639-00-00 |
from US $3.68 |
||
