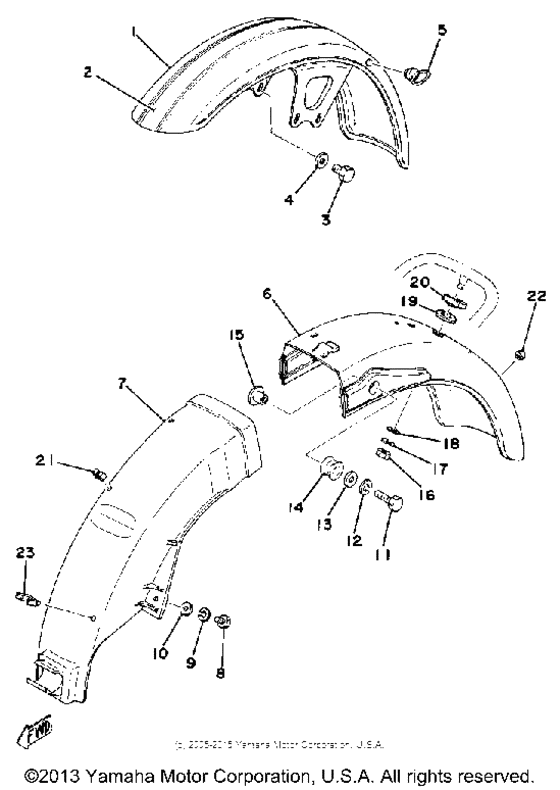

Front fender - rear fender Diagram Yamaha RD
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-21510-02-Y9
Fender, Front
|
1A0-21510-02-Y9 |
— | ||
|
2
|
2
2V0-21571-00-00
Graphic, Frt Fndr 1
|
2V0-21571-00-00 |
— | ||
|
3
|
3
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
3
|
3
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
4
|
4
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
5
|
5
1A0-21518-00-00 Holder, Cable |
1A0-21518-00-00 |
from US $3.04 |
||
|
6
|
6
1A0-21610-11-98
Fender, Rear
|
1A0-21610-11-98 |
— | ||
|
7
|
7
1A0-21629-01-00
Guard, Mud
|
1A0-21629-01-00 |
— | ||
|
8
|
8
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
11
|
11
973-01100-35-00 Bolt,with Washer |
973-01100-35-00 |
from US $6.66 |
||
| replacement | |||||
|
11
|
11
97070-10035-00 Bolt |
97070-10035-00 |
from US $6.66 |
||
|
12
|
12
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
13
|
13
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
14
|
14
168-21639-00-00 Damper 2 |
168-21639-00-00 |
from US $9.49 |
||
|
15
|
15
901-79102-20-00
Nut, Spec''l Shape
|
901-79102-20-00 |
— | ||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
902-01060-73-00
Washer, Plate
|
902-01060-73-00 |
— | ||
| replacement | |||||
|
18
|
18
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
19
|
19
902-02151-05-00
Inactive Part Number
|
902-02151-05-00 |
— | ||
|
20
|
20
1A2-21638-00-00
Damper 1
|
1A2-21638-00-00 |
— | ||
|
21
|
21
90464-08020-00 Clamp |
90464-08020-00 |
from US $1.98 |
||
|
22
|
22
170-21746-00-00 Damper 2Damper,cleaner stopper |
170-21746-00-00 |
from US $3.68 |
||
| replacement | |||||
|
22
|
22
5A8-21639-00-00 Damper 2 |
5A8-21639-00-00 |
from US $3.68 |
||
|
23
|
23
90464-16025-00 Clamp |
90464-16025-00 |
from US $1.52 |
||
