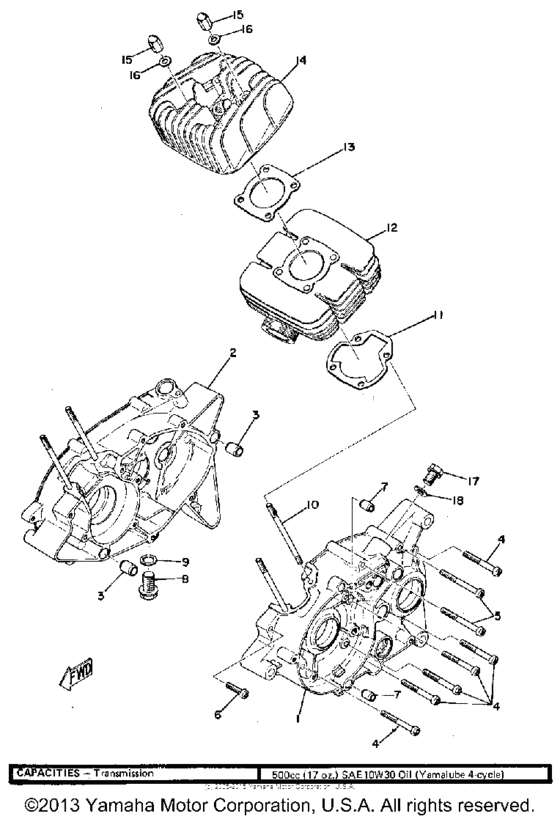

Crankcase & cylinder Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-15111-00-00
Crankcase 1
|
353-15111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
353-15111-01-00
Crankcase 1
|
353-15111-01-00 |
— | ||
|
2
|
2
353-15121-02-00
Crankcase 2
|
353-15121-02-00 |
— | ||
| replacement | |||||
|
2
|
2
353-15121-03-00
Case, Crank (R.h)
|
353-15121-03-00 |
— | ||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
4
|
4
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
5
|
5
98580-06055-00 Screw,panhead |
98580-06055-00 |
US $3.40 |
||
| replacement | |||||
|
5
|
5
98580-06555-00 Screw, Panhed (Gc2) |
98580-06555-00 |
from US $3.40 |
||
|
6
|
6
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
7
|
7
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
7
|
7
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
7
|
7
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
8
|
8
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
9
|
9
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
10
|
10
90116-06026-00 Bolt, Stud |
90116-06026-00 |
from US $3.12 |
||
|
11
|
11
3MT-11351-00-00 Gasket, Cylinder |
3MT-11351-00-00 |
from US $3.42 |
||
| replacement | |||||
|
11
|
11
4AD-11351-00-00 Gasket, Cylinder |
4AD-11351-00-00 |
from US $5.24 |
||
|
12
|
12
388-11311-00-R4
Cylinder 1
|
388-11311-00-R4 |
— | ||
|
13
|
13
517-11181-00-00 Gasket, Cylinder Head 1 |
517-11181-00-00 |
from US $5.29 |
||
| replacement | |||||
|
13
|
13
517-11181-01-00 Gasket, Cylinder Head 1 |
517-11181-01-00 |
from US $1.66 |
||
|
14
|
14
388-11111-01-94
Head, Cylinder 1
|
388-11111-01-94 |
— | ||
|
15
|
15
90176-06002-00 Nut, Crown |
90176-06002-00 |
from US $7.45 |
||
|
16
|
16
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
17
|
17
90340-10003-00 Plug, Straight Scrw |
90340-10003-00 |
from US $1.66 |
||
|
18
|
18
90430-10031-00 Gasket |
90430-10031-00 |
from US $1.28 |
||
| replacement | |||||
|
18
|
18
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
