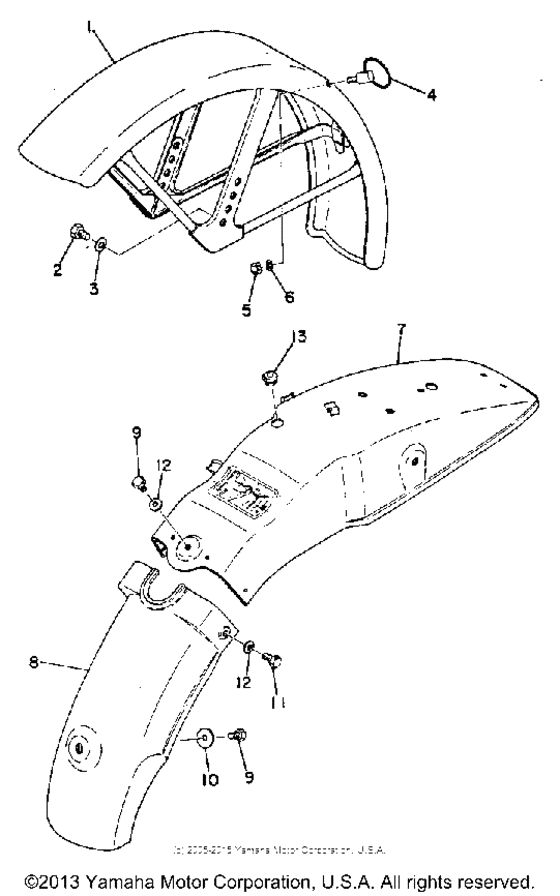

Front fender - rear fender Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-21510-01-93
Fender, Front
|
353-21510-01-93 |
— | ||
|
2
|
2
97313-08012-00 Bolt (661)661 |
97313-08012-00 |
from US $2.09 |
||
| replacements | |||||
|
2
|
2
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
2
|
2
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
3
|
3
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
4
|
4
174-21518-00-00 Holder, Cable |
174-21518-00-00 |
US $12.89 |
||
|
5
|
5
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
388-21611-00-F2
Fender, Rear
|
388-21611-00-F2 |
— | ||
|
7
|
7
388-21611-00-66
Fender, Rear
|
388-21611-00-66 |
— | ||
|
7
|
7
388-21611-00-K7
Fender, Rear
|
388-21611-00-K7 |
— | ||
|
8
|
8
353-21621-00-00
Flap
|
353-21621-00-00 |
— | ||
|
9
|
9
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
9
|
9
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
9
|
9
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.28 |
||
|
9
|
9
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
10
|
10
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
11
|
11
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
12
|
12
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
13
|
13
214-84154-60-00
Grommet
|
214-84154-60-00 |
— | ||
