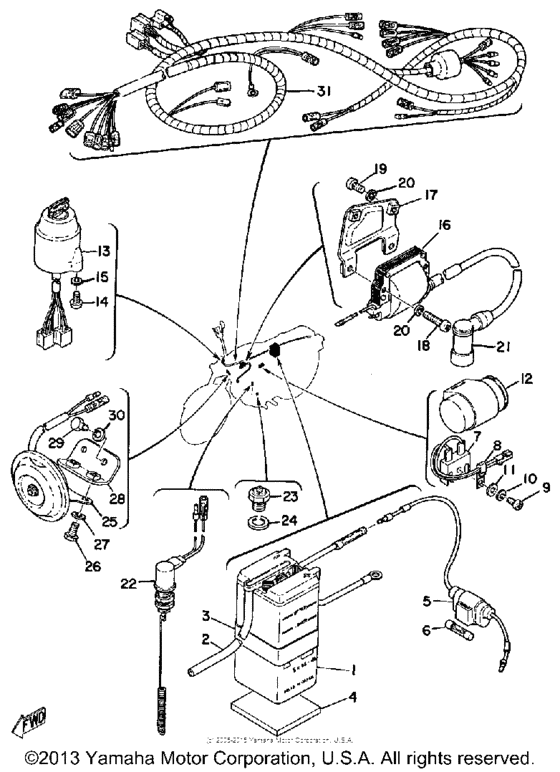

Electrical Diagram Yamaha RS100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTY-6N4A4-D0-00
6N4A4D Yuasa Batter
6N4A-4D FURUKAWA |
BTY-6N4A4-D0-00 |
— | ||
| replacement | |||||
|
1
|
1
6N4-A4DY0-00-00
CB5LB GS BATTERY
6N4A-4D FURUKAWA |
6N4-A4DY0-00-00 |
— | ||
|
2
|
2
90445-08047-00 Hose (L1500) |
90445-08047-00 |
from US $10.91 |
||
| replacement | |||||
|
2
|
2
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
3
|
3
214-82124-00-00 Band, Battery |
214-82124-00-00 |
US $9.23 |
||
|
4
|
4
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
4
|
4
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
4
|
4
583-24182-00-00 Damper, Locating 2 |
583-24182-00-00 |
from US $5.95 |
||
|
6
|
6
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
6
|
6
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
7
|
7
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
7
|
7
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
7
|
7
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
8
|
8
90465-06038-00 Clamp |
90465-06038-00 |
from US $2.41 |
||
| replacement | |||||
|
8
|
8
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
9
|
9
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
12
|
12
542-83350-60-00
Flasher Relay Assembly
|
542-83350-60-00 |
— | ||
|
13
|
13
465-82508-20-00
Main Switch Assembly
|
465-82508-20-00 |
— | ||
|
14
|
14
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
1Y8-82310-40-00 Ignition Coil Assembly |
1Y8-82310-40-00 |
from US $151.70 |
||
|
17
|
17
375-82316-01-00
Bracket, Ign Coil
|
375-82316-01-00 |
— | ||
|
18
|
18
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
19
|
19
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
19
|
19
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
21
|
21
808-82370-10-00
Plug Cap Assembly
|
808-82370-10-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
336-82530-00-00
Stop Switch Assembly
|
336-82530-00-00 |
— | ||
|
23
|
23
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
23
|
23
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
24
|
24
37R-82543-00-00 Washer, Plate |
37R-82543-00-00 |
from US $1.28 |
||
| replacement | |||||
|
24
|
24
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
25
|
25
463-83371-11-00
Horn
|
463-83371-11-00 |
— | ||
|
26
|
26
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
26
|
26
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
26
|
26
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
26
|
26
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
463-83378-10-00
Stay, Horn
|
463-83378-10-00 |
— | ||
|
29
|
29
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
29
|
29
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
465-82590-20-00
Wire Harness Assembly
|
465-82590-20-00 |
— | ||
