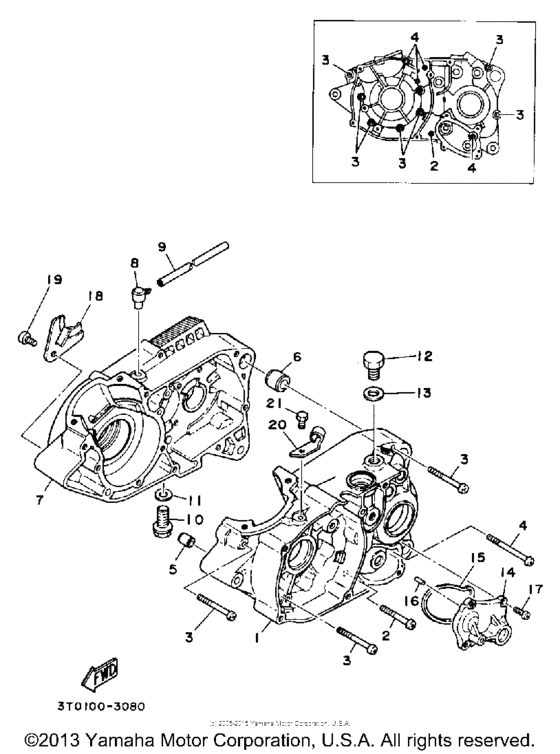

Crankcase Diagram Yamaha RT100
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T9-15111-00-00 Crankcase 1 |
1T9-15111-00-00 |
US $429.79 |
||
|
2
|
2
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.21 |
||
|
3
|
3
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
4
|
4
925-80065-60-00
Screw, Pan Head (92580-06560-00
92580-06560-00 |
925-80065-60-00 |
— | ||
| replacement | |||||
|
4
|
4
985-80065-60-00 Screw, Pan Head (92580-06560-0092580-06560-00 |
985-80065-60-00 |
from US $7.51 |
||
|
5
|
5
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
5
|
5
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
5
|
5
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
6
|
6
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
7
|
7
1T9-15121-01-00 Crankcase 2 |
1T9-15121-01-00 |
US $291.82 |
||
|
8
|
8
3YJ-15371-00-00 Breather |
3YJ-15371-00-00 |
from US $2.27 |
||
|
9
|
9
904-45073-40-00
Hose (L310)
|
904-45073-40-00 |
— | ||
| replacement | |||||
|
9
|
9
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $10.91 |
||
|
10
|
10
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
11
|
11
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
12
|
12
90340-12004-00 Plug, Straight Screw |
90340-12004-00 |
US $5.45 |
||
|
13
|
13
37R-82543-00-00 Washer, Plate |
37R-82543-00-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
14
|
14
437-15419-01-00 Cover, Shifter 1 |
437-15419-01-00 |
from US $67.42 |
||
|
15
|
15
401-15449-00-00 Ring, Rubber |
401-15449-00-00 |
from US $18.84 |
||
|
16
|
16
93603-12007-00 Pin, Dowel |
93603-12007-00 |
from US $1.84 |
||
|
17
|
17
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
17
|
17
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
18
|
18
304-15128-00-00 Holder |
304-15128-00-00 |
from US $7.93 |
||
|
19
|
19
98511-08010-00 Screw, Pan Head |
98511-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.34 |
||
|
20
|
20
401-15441-02-00 Holder, Clutch Cable |
401-15441-02-00 |
US $15.44 |
||
|
21
|
21
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
21
|
21
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
