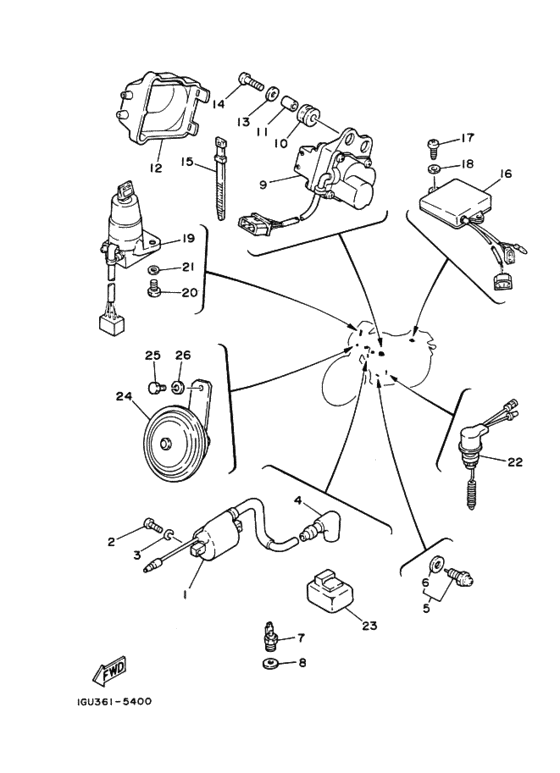

Electrical 2 Diagram Yamaha RZ125
- Year
- 1985
- Colour
- White (WW; 0036)
- Model code
- 1GV0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- RZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34X-82310-M0-00 Ignition Coil Assy |
34X-82310-M0-00 |
US $89.39 |
||
| replacements | |||||
|
1
|
1
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
1
|
1
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
1
|
1
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
1
|
1
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
1
|
1
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
US $83.79 |
||
|
1
|
1
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
US $83.79 |
||
|
1
|
1
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
US $83.79 |
||
|
1
|
1
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
US $83.79 |
||
|
2
|
2
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
3
|
3
92902-06100-00 Washer, Springワツシヤ，スプリング; |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
1M1-82370-21-00 Plug Cap Assyウイズノイズサプレツサ |
1M1-82370-21-00 |
from US $28.34 |
||
| replacement | |||||
|
4
|
4
8DG-82370-00-00 Plug Cap Assyウイズノイズサプレツサ |
8DG-82370-00-00 |
from US $28.34 |
||
|
5
|
5
341-82540-01-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
341-82540-01-00 |
— | ||
| replacements | |||||
|
5
|
5
4KM-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
4KM-82540-00-00 |
— | ||
|
5
|
5
4GY-82540-10-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
4GY-82540-10-00 |
from US $23.80 |
||
|
6
|
6
341-82543-00-00
Gasket
．ガスケツト; |
341-82543-00-00 |
— | ||
| replacement | |||||
|
6
|
6
296-82543-00-00 Gasket．ガスケツト; |
296-82543-00-00 |
from US $2.69 |
||
|
7
|
7
10V-83591-00-00
Thermo Unit
サーモユニツト; |
10V-83591-00-00 |
— | ||
|
8
|
8
90430-10164-00 Gasket |
90430-10164-00 |
from US $1.56 |
||
|
9
|
9
1GU-85820-00-00
Servo Motor Assy
サーボモータアセンブリ; |
1GU-85820-00-00 |
— | ||
|
10
|
10
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
11
|
11
90387-06299-00 Collarカラー; |
90387-06299-00 |
from US $1.70 |
||
| replacements | |||||
|
11
|
11
903-87075-98-00 Collar (1T2)カラー; |
903-87075-98-00 |
from US $1.70 |
||
|
11
|
11
90387-06553-00 Collar (1M1)カラー; |
90387-06553-00 |
from US $1.98 |
||
|
12
|
12
34X-85825-00-00 Cover, Wireカバー，ワイヤ; |
34X-85825-00-00 |
from US $18.59 |
||
| replacement | |||||
|
12
|
12
34X-85825-01-00 Cover, Wireカバー，ワイヤ; |
34X-85825-01-00 |
US $18.59 |
||
|
13
|
13
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
14
|
14
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
15
|
15
437-83936-00-00
Band, Switch Cord
バンド，スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
15
|
15
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.56 |
||
|
16
|
16
1GU-85830-M0-00
Control Unit Assy
コントロールユニツトアセンブリ; |
1GU-85830-M0-00 |
— | ||
|
17
|
17
97701-60116-00 Screw, Tapping |
97701-60116-00 |
from US $2.23 |
||
| replacement | |||||
|
17
|
17
97780-60116-00 Screw, Tapping |
97780-60116-00 |
from US $3.73 |
||
|
18
|
18
92901-06200-00 Washer, Plainワツシヤ，プレーン; |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.07 |
||
|
19
|
19
1GM-82501-30-00
Main Switch Steering Lock
|
1GM-82501-30-00 |
— | ||
|
19
|
19
4L0-82022-30-00 Key Setキーセツト; オプシヨナルパーツ ＊１ |
4L0-82022-30-00 |
US $341.52 |
||
|
20
|
20
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
20
|
20
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
20
|
20
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
5R2-82530-00-00 Stop Switch Assy |
5R2-82530-00-00 |
from US $28.73 |
||
| replacements | |||||
|
22
|
22
5R2-82530-02-00 Stop Switch Assembly |
5R2-82530-02-00 |
from US $16.02 |
||
|
22
|
22
5R2-82530-03-00 Stop Switch Assy |
5R2-82530-03-00 |
US $26.26 |
||
|
23
|
23
5Y3-83350-20-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
5Y3-83350-20-00 |
US $50.15 |
||
| replacement | |||||
|
23
|
23
34L-83350-20-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
34L-83350-20-00 |
from US $30.31 |
||
|
24
|
24
25G-83371-00-00 Hornホーン; |
25G-83371-00-00 |
from US $58.17 |
||
|
25
|
25
97301-08014-00 Bolt |
97301-08014-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
26
|
26
92900-08100-00 Washer, Springワツシヤ，スプリング; |
92900-08100-00 |
US $1.56 |
||
| replacement | |||||
|
26
|
26
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
