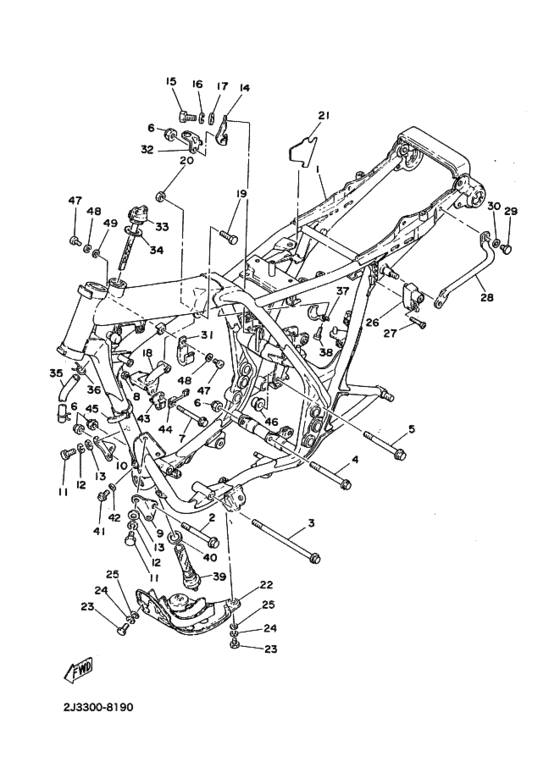

Frame Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J4-21110-30-33
Frame Comp
フレームコンプリート; ヤマハブラツク |
2J4-21110-30-33 |
— | ||
| replacement | |||||
|
1
|
1
2J4-21110-31-33
Frame
フレームコンプリート; ヤマハブラツク |
2J4-21110-31-33 |
— | ||
|
2
|
2
90105-10039-00 Bolt, Flangeボルト，ワツシヤベースドヘツドヘキサゴン; Ｍ１０−１００Ｌ |
90105-10039-00 |
from US $5.81 |
||
| replacements | |||||
|
2
|
2
95817-10100-00 Bolt, Flangeボルト，ワツシヤベースドヘツドヘキサゴン; Ｍ１０−１００Ｌ |
95817-10100-00 |
from US $4.25 |
||
|
2
|
2
90105-10747-00 Bolt, Washer Based(1Ru)ボルト，ワツシヤベースドヘツドヘキサゴン; Ｍ１０−１００Ｌ |
90105-10747-00 |
from US $5.78 |
||
|
3
|
3
90105-10113-00 Bolt, Washer Basedボルト，ワツシヤベースドヘツドヘキサゴン; Ｍ１０−１８５Ｌ |
90105-10113-00 |
from US $9.49 |
||
| replacement | |||||
|
3
|
3
90105-10780-00 Bolt, Washer Based(4Km)ボルト，ワツシヤベースドヘツドヘキサゴン; Ｍ１０−１８５Ｌ |
90105-10780-00 |
from US $9.49 |
||
|
4
|
4
901-05100-50-00
Bolt, Flange
ボルト，ワツシヤベースドヘツドヘキサゴン; Ｍ１０−１１０Ｌ |
901-05100-50-00 |
— | ||
| replacements | |||||
|
4
|
4
95817-10110-00 Bolt, Flange(6Ta)ボルト，ワツシヤベースドヘツドヘキサゴン; Ｍ１０−１１０Ｌ |
95817-10110-00 |
from US $3.54 |
||
|
4
|
4
901-05101-05-00 Bolt, Washer Based (2H7)ボルト，ワツシヤベースドヘツドヘキサゴン; Ｍ１０−１１０Ｌ |
901-05101-05-00 |
from US $5.81 |
||
|
5
|
5
90109-101A0-00 Bolt(30W)ボルト，ワツシヤベースドヘツドヘキサゴン; Ｍ１０−１２７Ｌ |
90109-101A0-00 |
from US $9.21 |
||
|
6
|
6
90185-10035-00 Nut, Self-Locking |
90185-10035-00 |
from US $5.24 |
||
| replacement | |||||
|
6
|
6
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.24 |
||
|
7
|
7
90105-08118-00 Bolt, Washer Basedボルト，ワツシヤペーストヘツドヘキサゴン; Ｍ８−７０Ｌ |
90105-08118-00 |
from US $8.22 |
||
|
8
|
8
90185-08054-00 Nut, Self-Lockingナツト，ヒルフロツキング; |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
8
|
8
95617-08100-00 Nut, Uナツト，ヒルフロツキング; |
95617-08100-00 |
from US $3.26 |
||
|
8
|
8
901-85080-89-00
Nut, Self-Locking
ナツト，ヒルフロツキング; |
901-85080-89-00 |
— | ||
|
9
|
9
2J2-21315-00-33 Stay, Engine 2ステー，エンジンフロント ; レフト; ヤマハブラツク |
2J2-21315-00-33 |
US $25.15 |
||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
ステー，エンジンフロント ; レフト; ヤマハブラツク |
999-99999-99-00 |
— | ||
|
10
|
10
2J2-21316-00-33 Stay, Engine 3ステー，エンジンフロント ; ライト; ヤマハブラツク |
2J2-21316-00-33 |
from US $10.42 |
||
|
11
|
11
97321-08018-00 Boltボルト，ヘキサゴン; |
97321-08018-00 |
from US $6.10 |
||
| replacement | |||||
|
11
|
11
901-01086-91-00 Bolt(Ja9)ボルト，ヘキサゴン; |
901-01086-91-00 |
from US $7.37 |
||
|
12
|
12
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
13
|
13
929-01086-00-00
Washer
ワツシヤ，プレート; |
929-01086-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
14
|
14
2J2-21317-01-00 Stay, Engine 4ステー，エンジンリヤ; |
2J2-21317-01-00 |
from US $10.62 |
||
|
15
|
15
97321-08025-00 Bolt |
97321-08025-00 |
from US $3.54 |
||
| replacement | |||||
|
15
|
15
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
16
|
16
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
17
|
17
929-01086-00-00
Washer
ワツシヤ，プレート; |
929-01086-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
18
|
18
2J2-21318-01-00 Stay, Engine 5ステー，エンジン; |
2J2-21318-01-00 |
from US $18.51 |
||
|
19
|
19
97321-08040-00 Boltボルト，ヘキサゴン; |
97321-08040-00 |
US $5.29 |
||
| replacements | |||||
|
19
|
19
97014-08040-00 Bolt, Hexagonボルト，ヘキサゴン; |
97014-08040-00 |
from US $2.13 |
||
|
19
|
19
999-99999-99-00
Not Available
ボルト，ヘキサゴン; |
999-99999-99-00 |
— | ||
|
20
|
20
90185-08054-00 Nut, Self-Lockingナツト; |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
20
|
20
95617-08100-00 Nut, Uナツト; |
95617-08100-00 |
from US $3.26 |
||
|
20
|
20
901-85080-89-00
Nut, Self-Locking
ナツト; |
901-85080-89-00 |
— | ||
|
21
|
21
2J2-2117F-00-00 Coverカバー; |
2J2-2117F-00-00 |
US $3.02 |
||
|
22
|
22
2J2-21471-01-00 Protector, Engine |
2J2-21471-01-00 |
US $71.84 |
||
| replacement | |||||
|
22
|
22
3GW-21471-00-33 Protector, Engine (0033, Yb) |
3GW-21471-00-33 |
from US $55.66 |
||
|
23
|
23
973-01060-16-00
Bolt
ボルト，ヘキサゴン; |
973-01060-16-00 |
— | ||
| replacements | |||||
|
23
|
23
97095-06016-00 Boltボルト，ヘキサゴン; |
97095-06016-00 |
from US $1.28 |
||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recessボルト，ヘキサゴン; |
97D95-06016-00 |
from US $1.28 |
||
|
24
|
24
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
24
|
24
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
25
|
25
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
25
|
25
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
25
|
25
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
26
|
26
2J2-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
2J2-21308-01-00 |
from US $43.24 |
||
| replacement | |||||
|
26
|
26
26H-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
26H-21308-01-00 |
from US $44.85 |
||
|
27
|
27
927-01060-30-00
Screw, Flat Head
|
927-01060-30-00 |
— | ||
| replacement | |||||
|
27
|
27
98707-06030-00 Screw, Flat Head |
98707-06030-00 |
from US $1.56 |
||
|
28
|
28
2J2-21165-00-00
Handle, Standing
|
2J2-21165-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
97321-06012-00 Boltボルト，ヘキサゴン; |
97321-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
29
|
29
970-80060-12-00 Boltボルト，ヘキサゴン; |
970-80060-12-00 |
from US $1.98 |
||
|
29
|
29
970-13060-12-00
Bolt
ボルト，ヘキサゴン; |
970-13060-12-00 |
— | ||
|
30
|
30
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
30
|
30
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
30
|
30
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
30
|
30
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
31
|
31
90465-10018-00
Clamp
クランプ ; ８３４−２１８２３−００ |
90465-10018-00 |
— | ||
|
32
|
32
2J2-2144G-00-00 Stay, Stop Switchステー，ストツプスイツチ; |
2J2-2144G-00-00 |
from US $8.78 |
||
|
33
|
33
2J2-21771-02-00 Body, Capキヤツプ，オイルタンク; |
2J2-21771-02-00 |
from US $13.78 |
||
| replacement | |||||
|
33
|
33
2J2-21771-10-00 Body, Capキヤツプ，オイルタンク; |
2J2-21771-10-00 |
from US $15.12 |
||
|
34
|
34
90430-27124-00 Gasket |
90430-27124-00 |
from US $1.70 |
||
|
35
|
35
90445-11289-00 Hose (L200)ホース ; ７ ２００ |
90445-11289-00 |
from US $8.36 |
||
|
36
|
36
904-67100-08-00
Clip
クリツプ ; １１３−２４３５６−００ |
904-67100-08-00 |
— | ||
| replacements | |||||
|
36
|
36
90467-100A1-00 Clipクリツプ ; １１３−２４３５６−００ |
90467-100A1-00 |
from US $1.28 |
||
|
36
|
36
90467-11106-00 Clipクリツプ ; １１３−２４３５６−００ |
90467-11106-00 |
from US $1.28 |
||
|
37
|
37
2J2-21335-00-00
Clamp, Wire Hrnes 1
クランプ，ワイヤハーネス; |
2J2-21335-00-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
クランプ，ワイヤハーネス; |
999-99999-99-00 |
— | ||
|
38
|
38
97701-50110-00 Screw, Panhead Tappingスクリユ，パンヘツド タツピン; |
97701-50110-00 |
US $2.27 |
||
| replacement | |||||
|
38
|
38
97780-50610-00 Screw, Tappingスクリユ，パンヘツド タツピン; |
97780-50610-00 |
from US $2.27 |
||
|
39
|
39
583-21756-00-00 Net, Filterネツト，オイルタンクフイルタ; |
583-21756-00-00 |
from US $46.28 |
||
|
40
|
40
90430-22123-00 Gasket |
90430-22123-00 |
from US $4.53 |
||
|
41
|
41
90105-08003-00 Bolt, Flangeボルト，フランジ ; ８３４−１６７７７−００ |
90105-08003-00 |
from US $4.82 |
||
| replacement | |||||
|
41
|
41
90105-08729-00 Bolt, Washer Basedボルト，フランジ ; ８３４−１６７７７−００ |
90105-08729-00 |
from US $4.82 |
||
|
42
|
42
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
42
|
42
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
43
|
43
90465-10090-00
Clamp
|
90465-10090-00 |
— | ||
|
44
|
44
90465-08088-00
Clamp
|
90465-08088-00 |
— | ||
| replacements | |||||
|
44
|
44
904-65081-44-00
Clamp
|
904-65081-44-00 |
— | ||
|
44
|
44
904-65060-88-00
Clamp (1e6)
|
904-65060-88-00 |
— | ||
|
45
|
45
803-82591-00-00 Band, Switch Cord |
803-82591-00-00 |
from US $1.56 |
||
| replacement | |||||
|
45
|
45
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
46
|
46
2J2-21459-00-00 Collar, Rear Engine Stayカラー; |
2J2-21459-00-00 |
US $4.25 |
||
| replacement | |||||
|
46
|
46
2J2-21459-01-00 Spacerカラー; |
2J2-21459-01-00 |
from US $4.25 |
||
|
47
|
47
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
47
|
47
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
47
|
47
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
48
|
48
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
48
|
48
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
49
|
49
92901-05200-00 Washer, Plainワツシヤ，プレーン; |
92901-05200-00 |
US $1.56 |
||
| replacement | |||||
|
49
|
49
92990-05200-00 Washer, Plainワツシヤ，プレーン; |
92990-05200-00 |
from US $1.34 |
||
