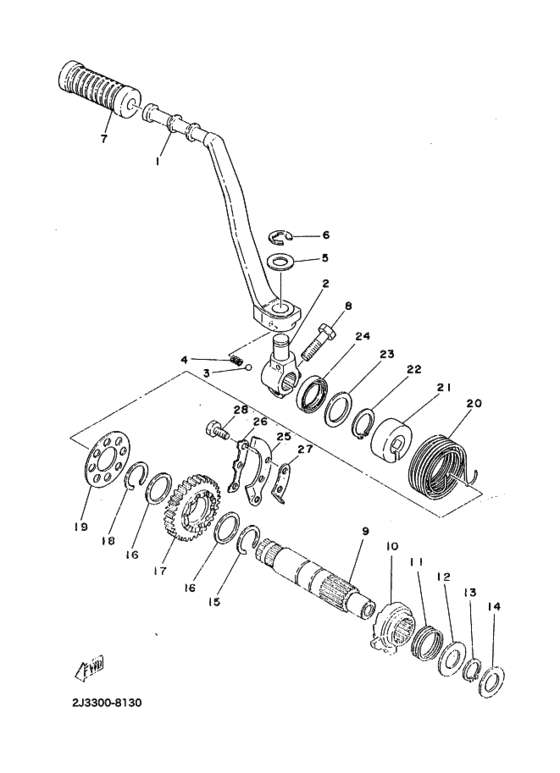

ｷﾂｸｽﾀｰﾀ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-15611-02-93 Crank, Kick |
2J2-15611-02-93 |
from US $184.48 |
||
| replacement | |||||
|
1
|
1
1JN-15610-00-00 Kick Crank Assembly |
1JN-15610-00-00 |
from US $186.52 |
||
|
2
|
2
583-15621-00-00 Boss, Kick Crankホス，キツククランク; |
583-15621-00-00 |
from US $60.38 |
||
|
3
|
3
93507-32009-00 Ball 7-32ポール ; ７／３２インチ |
93507-32009-00 |
from US $1.70 |
||
| replacement | |||||
|
3
|
3
93507-32031-00 Ball 7-32ポール ; ７／３２インチ |
93507-32031-00 |
from US $1.66 |
||
|
4
|
4
90501-12081-00 Spring, Compression（２７８−１５６２２−００） |
90501-12081-00 |
from US $1.56 |
||
|
5
|
5
90201-15234-00 Washer, Plate (1.5T)ワツシヤ，プレート ; ２７８−１５６１３−００ |
90201-15234-00 |
from US $1.70 |
||
|
6
|
6
93430-10016-00 Circlipサークリツプ ; Ｅ−１０ |
93430-10016-00 |
from US $1.35 |
||
| replacement | |||||
|
6
|
6
99006-10600-00 Circlipサークリツプ ; Ｅ−１０ |
99006-10600-00 |
from US $1.34 |
||
|
7
|
7
1T1-15618-00-00 Cover, Kick Leverカバー，キツクレバー; |
1T1-15618-00-00 |
from US $9.49 |
||
|
8
|
8
97321-08030-00 Bolt |
97321-08030-00 |
from US $2.83 |
||
| replacements | |||||
|
8
|
8
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
8
|
8
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
8
|
8
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
9
|
9
583-15661-00-00 Axle, Kickシヤフト，キツククランク; |
583-15661-00-00 |
from US $76.84 |
||
|
10
|
10
583-15671-00-00 Wheel, Ratchetホイール，ラチエツト; |
583-15671-00-00 |
from US $69.49 |
||
|
11
|
11
90501-23143-00 Spring, Compression (363-15675- |
90501-23143-00 |
from US $1.56 |
||
|
12
|
12
363-15676-00-00 Cover, Springカバー，スプリング; |
363-15676-00-00 |
from US $2.41 |
||
|
13
|
13
93410-19015-00 Circlipサークリツプ ; Ｓ−１９ |
93410-19015-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
99009-19400-00 Circlipサークリツプ ; Ｓ−１９ |
99009-19400-00 |
from US $1.56 |
||
|
14
|
14
90201-20278-00 Washer, Plateワツシヤ，プレート ; １６８−１７１１６−００ |
90201-20278-00 |
from US $1.70 |
||
|
15
|
15
93440-25020-00 Circlipサークリツプ; （２５φ特殊） |
93440-25020-00 |
from US $1.70 |
||
|
16
|
16
90201-25287-00 Washer, Plate (T=1.0)ワツシヤ，プレート; |
90201-25287-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
90201-253K0-00 Washer, Plate (T=1.0)ワツシヤ，プレート; |
90201-253K0-00 |
from US $1.70 |
||
|
17
|
17
583-15641-00-00 Gear, Kickギヤ，キツク ; ２９Ｔ |
583-15641-00-00 |
from US $67.57 |
||
|
18
|
18
93440-25019-00 Circlipサークリツプ; （２５φ特殊） |
93440-25019-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
934-40250-84-00 Circlipサークリツプ; （２５φ特殊） |
934-40250-84-00 |
from US $1.70 |
||
|
19
|
19
583-15676-00-00 Cover, Springカバー，キツクスプリング; |
583-15676-00-00 |
US $2.55 |
||
|
20
|
20
90508-32280-00 Spring, Torsionスプリング，トーシヨン; |
90508-32280-00 |
from US $7.65 |
||
|
21
|
21
90560-25154-00 Spacerスペーサ; |
90560-25154-00 |
US $6.52 |
||
|
22
|
22
93410-25010-00 Circlipサークリツプ ; Ｓ−２５ |
93410-25010-00 |
from US $1.50 |
||
| replacement | |||||
|
22
|
22
99009-25400-00 Circlipサークリツプ ; Ｓ−２５ |
99009-25400-00 |
from US $1.56 |
||
|
23
|
23
902-01252-90-00
Washer, Plate (0.9T)
ワツシヤ，プレート ; １３１−１５６５３−００ |
902-01252-90-00 |
— | ||
| replacement | |||||
|
23
|
23
90201-256K6-00 Washer, Plate (0.9T)ワツシヤ，プレート ; １３１−１５６５３−００ |
90201-256K6-00 |
from US $1.70 |
||
|
24
|
24
93102-25064-00 Oil Sealオイルシール ; ＳＤ−２５−３５−７ |
93102-25064-00 |
from US $7.23 |
||
|
25
|
25
583-15674-00-00 Guide, Ratchet Wheelガイト，ラチエツトホイール; |
583-15674-00-00 |
from US $11.76 |
||
|
26
|
26
363-15686-00-00 Washer, Lock |
363-15686-00-00 |
from US $3.26 |
||
|
27
|
27
434-15668-00-00 Stopperストツパ，キツクスプリング; |
434-15668-00-00 |
from US $3.40 |
||
|
28
|
28
97321-06016-00 Boltボルト，ヘキサゴン; |
97321-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
28
|
28
97095-06016-00 Boltボルト，ヘキサゴン; |
97095-06016-00 |
from US $1.28 |
||
|
28
|
28
97014-06016-00 Bolt, Hexagonボルト，ヘキサゴン; |
97014-06016-00 |
from US $1.28 |
||
|
28
|
28
97D95-06016-00 Bolt, Hexagon Deep Recessボルト，ヘキサゴン; |
97D95-06016-00 |
from US $1.28 |
||
