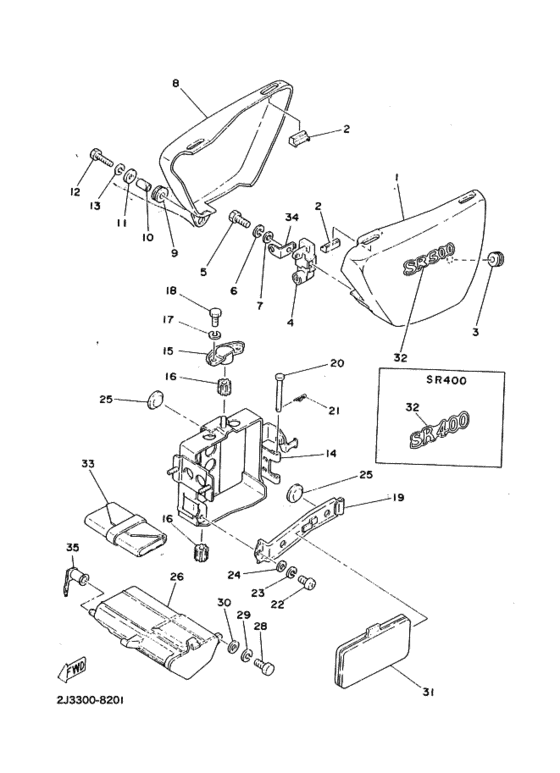

ｻｲﾄﾞｶﾊﾞｰ. ﾊﾞﾂﾃﾘﾎﾞﾂｸｽ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Black Gold (BG; 00H9)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-21711-01-H9
Cover, Side 1
カバー，サイド ; レフト; ブラツクゴールド |
2J2-21711-01-H9 |
— | ||
| replacement | |||||
|
1
|
1
2J2-21711-01-33 Cover, Side 1カバー，サイド ; レフト; ブラツクゴールド |
2J2-21711-01-33 |
from US $93.23 |
||
|
2
|
2
466-21717-00-00 Damperダンパ，サイドカバー; |
466-21717-00-00 |
from US $9.49 |
||
|
3
|
3
90480-12236-00 Grommet |
90480-12236-00 |
from US $1.70 |
||
|
4
|
4
2J2-21708-00-00 Lock Assy 2サイドカバーロツクアセンブリ; |
2J2-21708-00-00 |
from US $46.57 |
||
| replacement | |||||
|
4
|
4
4R8-21708-01-00 Lock Assy 2サイドカバーロツクアセンブリ; |
4R8-21708-01-00 |
from US $49.73 |
||
|
5
|
5
973-01060-16-00
Bolt
ボルト，ヘキサゴン; |
973-01060-16-00 |
— | ||
| replacements | |||||
|
5
|
5
97095-06016-00 Boltボルト，ヘキサゴン; |
97095-06016-00 |
from US $1.28 |
||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recessボルト，ヘキサゴン; |
97D95-06016-00 |
from US $1.28 |
||
|
6
|
6
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
7
|
7
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
7
|
7
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
8
|
8
2J2-21721-01-H9 Cover, Side 2カバー，サイド ; ライト; ブラツクゴールド |
2J2-21721-01-H9 |
from US $94.18 |
||
| replacement | |||||
|
8
|
8
2J2-21721-01-33 Cover, Side 2カバー，サイド ; ライト; ブラツクゴールド |
2J2-21721-01-33 |
from US $118.82 |
||
|
9
|
9
90480-14105-00 Grommet |
90480-14105-00 |
from US $1.70 |
||
|
10
|
10
90387-06028-00 Collarカラー; |
90387-06028-00 |
from US $2.83 |
||
|
11
|
11
90201-06380-00 Washer Plainワツシヤ，フレート; |
90201-06380-00 |
from US $0.86 |
||
|
12
|
12
97301-06030-00 Boltボルト，ヘキサゴン; |
97301-06030-00 |
from US $1.07 |
||
| replacements | |||||
|
12
|
12
970-17060-25-00 Boltボルト，ヘキサゴン; |
970-17060-25-00 |
from US $1.34 |
||
|
12
|
12
97017-06030-00 Boltボルト，ヘキサゴン; |
97017-06030-00 |
from US $1.07 |
||
|
13
|
13
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
2J2-21170-00-00
Box, Batt
ボツクスコンプリート，バツテリ; |
2J2-21170-00-00 |
— | ||
| replacement | |||||
|
14
|
14
2J2-21170-01-00
Box Comp
ボツクスコンプリート，バツテリ; |
2J2-21170-01-00 |
— | ||
|
15
|
15
2J2-21149-01-00
Bracket, Batt Box
|
2J2-21149-01-00 |
— | ||
|
16
|
16
2J2-21729-00-00 Clamp, Damperダンパ; |
2J2-21729-00-00 |
from US $7.47 |
||
|
17
|
17
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
17
|
17
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
97301-06010-00 Boltボルト，ヘキサゴン; |
97301-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
97017-06010-00 Boltボルト，ヘキサゴン; |
97017-06010-00 |
from US $1.34 |
||
|
19
|
19
2J2-2176E-00-00
Plate
フレート，バツテリボツクス; |
2J2-2176E-00-00 |
— | ||
|
20
|
20
91701-05055-00 Pin |
91701-05055-00 |
from US $2.98 |
||
|
21
|
21
90468-10050-00 Clip (156-83525-00)クリツプ ; １５６−８３５２５−００ |
90468-10050-00 |
from US $1.84 |
||
|
22
|
22
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
23
|
23
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
23
|
23
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
24
|
24
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
25
|
25
371-82121-00-00 Pad, Batteryバツト，バツテリ; |
371-82121-00-00 |
from US $4.39 |
||
|
26
|
26
2J2-21240-01-00
Box, Tool
ボツクスコンプリート，ツール; |
2J2-21240-01-00 |
— | ||
|
28
|
28
97301-06014-00 Bolt, Hexagonボルト，ヘキサゴン; |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
28
|
28
97017-06014-00 Bolt(8Cp)ボルト，ヘキサゴン; |
97017-06014-00 |
from US $1.84 |
||
|
29
|
29
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
29
|
29
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
30
|
30
90201-06052-00 Washer, Plate (136-22316-00)ワツシヤ，プレート; |
90201-06052-00 |
US $1.56 |
||
| replacement | |||||
|
30
|
30
90201-06M08-00 Washer, Plateワツシヤ，プレート; |
90201-06M08-00 |
from US $1.56 |
||
|
31
|
31
2J2-21245-00-00
Box
ボツクス，ポーチ; |
2J2-21245-00-00 |
— | ||
|
32
|
32
2H6-21781-00-00
Emblem 1
エンブレム，サイドカー; |
2H6-21781-00-00 |
— | ||
|
33
|
33
2J2-28100-10-00
Tool Kit
ツールアセンブリ; |
2J2-28100-10-00 |
— | ||
| replacements | |||||
|
33
|
33
1JN-W2810-00-00
Tool Kit (1E6-28100-10)
ツールアセンブリ; |
1JN-W2810-00-00 |
— | ||
|
33
|
33
2J2-28100-00-00
Tool Kit
ツールアセンブリ; |
2J2-28100-00-00 |
— | ||
|
34
|
34
2J2-21794-00-00 Holder, Knobクランプ; |
2J2-21794-00-00 |
US $4.93 |
||
|
35
|
35
2J2-21172-00-00
Stopper, Box
ストツパ，ツールボツクス; |
2J2-21172-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
ストツパ，ツールボツクス; |
999-99999-99-00 |
— | ||
