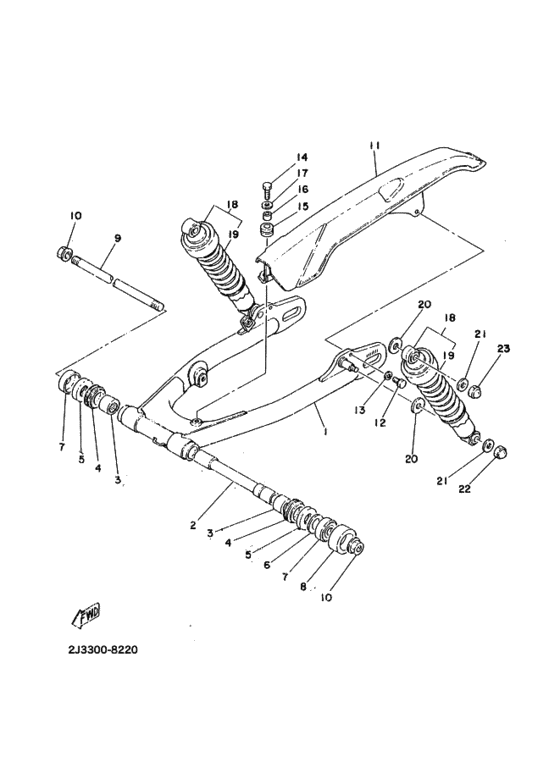

ﾘﾔｱｰﾑ. ﾘﾔｸﾂｼﾖﾝ. ﾁｴﾝｹｰｽ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Black Gold (BG; 00H9)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J4-22110-00-33
Rear Arm Comp
リヤアームコンプリート; ヤマハブラツク |
2J4-22110-00-33 |
— | ||
|
2
|
2
483-22124-00-00 Bush 2プツシング; |
483-22124-00-00 |
from US $82.18 |
||
|
3
|
3
93317-22208-00 Bearing, Cylinder.#17 |
93317-22208-00 |
from US $24.09 |
||
|
4
|
4
93108-35004-00 Oil Seal (35-41-8)オイルシール; |
93108-35004-00 |
from US $7.37 |
||
|
5
|
5
93342-22205-00 Bearing, Flat #42 |
93342-22205-00 |
from US $61.62 |
||
|
6
|
6
648-45533-00-03 Shim．．ワツシヤ，プレート ; ２２５−３３−０３; 選択 |
648-45533-00-03 |
from US $3.97 |
||
| replacement | |||||
|
6
|
6
902-01222-84-04 Washer, Plate．．ワツシヤ，プレート ; ２２５−３３−０３; 選択 |
902-01222-84-04 |
US $3.82 |
||
|
7
|
7
2K8-22129-00-00 Cover, Thrust 2カバー，スラスト; |
2K8-22129-00-00 |
from US $17.14 |
||
|
8
|
8
431-22151-03-00 Seal, Guardシール，カート; |
431-22151-03-00 |
from US $19.41 |
||
|
9
|
9
2J2-22141-03-00 Shaft, Pivotシヤフト，ピポツト; |
2J2-22141-03-00 |
from US $80.27 |
||
| replacement | |||||
|
9
|
9
33Y-22141-01-00 Shaft, Pivotシヤフト，ピポツト; |
33Y-22141-01-00 |
from US $80.27 |
||
|
10
|
10
90179-16256-00 Nut, Spec''l Shape |
90179-16256-00 |
from US $18.18 |
||
|
11
|
11
2J2-22311-01-93 Case, Chainケース，チエン; |
2J2-22311-01-93 |
from US $140.92 |
||
| replacement | |||||
|
11
|
11
2J2-22311-01-00 Case, Chainケース，チエン; |
2J2-22311-01-00 |
from US $113.27 |
||
|
12
|
12
973-01060-16-00
Bolt
ボルト，ヘキサゴン; |
973-01060-16-00 |
— | ||
| replacements | |||||
|
12
|
12
97095-06016-00 Boltボルト，ヘキサゴン; |
97095-06016-00 |
from US $1.28 |
||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recessボルト，ヘキサゴン; |
97D95-06016-00 |
from US $1.28 |
||
|
13
|
13
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
97301-06020-00 Boltボルト，ヘキサゴン; |
97301-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
970-17060-20-00 Boltボルト，ヘキサゴン; |
970-17060-20-00 |
from US $1.07 |
||
|
15
|
15
90480-13197-00 Grommet |
90480-13197-00 |
from US $2.27 |
||
| replacement | |||||
|
15
|
15
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
16
|
16
903-87062-16-00
Collar
カラー; |
903-87062-16-00 |
— | ||
| replacement | |||||
|
16
|
16
90387-060A3-00 Collar (3H5)カラー; |
90387-060A3-00 |
from US $1.70 |
||
|
17
|
17
90201-06066-00 Washer, Plateワツシヤ，プレート ; １０１−２８３２３−００ |
90201-06066-00 |
from US $4.39 |
||
|
18
|
18
2J2-22210-03-00
Shock Absorber Assy, Rear
|
2J2-22210-03-00 |
— | ||
| replacements | |||||
|
18
|
18
33Y-22210-00-00
Shk/abs Assembly, Rear
|
33Y-22210-00-00 |
— | ||
|
18
|
18
2J2-22210-04-00
Shock absorber assy, rear
|
2J2-22210-04-00 |
— | ||
|
19
|
19
2J2-22212-02-00
Spring
．スプリング，リヤクツシヨン; |
2J2-22212-02-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
．スプリング，リヤクツシヨン; |
999-99999-99-00 |
— | ||
|
20
|
20
90201-14218-00 Washer, Plate．ワツシヤ，プレート ; １１５−２７−２０ |
90201-14218-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
90201-15797-00 Washer, Plate (3X3)．ワツシヤ，プレート ; １１５−２７−２０ |
90201-15797-00 |
from US $1.66 |
||
|
21
|
21
90201-10696-00 Washer, Plateワツシヤ，プレート; |
90201-10696-00 |
from US $3.26 |
||
|
22
|
22
90176-10009-00 Nut, Cap (371)ナツト，キヤツプ; |
90176-10009-00 |
from US $1.56 |
||
|
23
|
23
90176-10013-00 Nut, Crownナツト，キヤツプ; |
90176-10013-00 |
from US $1.70 |
||
| replacements | |||||
|
23
|
23
90176-10009-00 Nut, Cap (371)ナツト，キヤツプ; |
90176-10009-00 |
from US $1.56 |
||
|
23
|
23
90176-10073-00 Nut, Crownナツト，キヤツプ; |
90176-10073-00 |
from US $1.66 |
||
