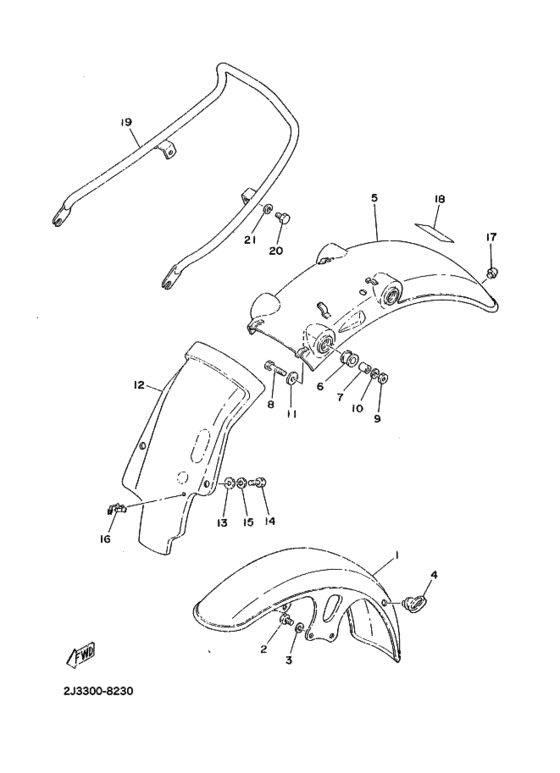

ﾌﾛﾝﾄﾌｴﾝﾀﾞ. ﾘﾔﾌｴﾝﾀﾞ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Black Gold (BG; 00H9)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-21510-00-93 Fender, Frontフロントフエンダコンプリート; |
2J2-21510-00-93 |
from US $394.20 |
||
|
2
|
2
97321-08020-00 Boltボルト，ヘキサゴン; |
97321-08020-00 |
from US $2.03 |
||
| replacements | |||||
|
2
|
2
97080-08020-00 Bolt(6Td)ボルト，ヘキサゴン; |
97080-08020-00 |
from US $4.05 |
||
|
2
|
2
97013-08020-00 Boltボルト，ヘキサゴン; |
97013-08020-00 |
from US $1.64 |
||
|
3
|
3
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
3
|
3
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
4
|
4
1A0-21518-00-00 Holder, Cableホルダ，ワイヤ; |
1A0-21518-00-00 |
from US $7.79 |
||
|
5
|
5
2J2-21610-00-93 Rear Fender Compリヤフエンダコンプリート; |
2J2-21610-00-93 |
from US $298.60 |
||
| replacement | |||||
|
5
|
5
999-99035-57-00 Rear Fender Compリヤフエンダコンプリート; |
999-99035-57-00 |
from US $255.59 |
||
|
6
|
6
168-21639-00-00 Damper 2ダンパ; |
168-21639-00-00 |
from US $2 |
||
|
7
|
7
903-87082-58-00 Collarカラー; |
903-87082-58-00 |
from US $3.40 |
||
|
8
|
8
97301-08035-00 Boltボルト，ヘキサゴン; |
97301-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
8
|
8
97013-08035-00 Boltボルト，ヘキサゴン; |
97013-08035-00 |
from US $4.53 |
||
|
9
|
9
95301-08600-00 Nut Hexagon (738)ナツト，ヘキサゴン; |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
9
|
9
997-80086-00-00 Nut, Hexナツト，ヘキサゴン; |
997-80086-00-00 |
from US $1.59 |
||
|
9
|
9
953-33086-00-00 Nutナツト，ヘキサゴン; |
953-33086-00-00 |
from US $1.42 |
||
|
10
|
10
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
11
|
11
90201-08113-00 Washer, Plateワツシヤ，プレート ; ６１１−１８５５６−３０ |
90201-08113-00 |
US $1.98 |
||
| replacement | |||||
|
11
|
11
90201-081R9-00 Washer, Plateワツシヤ，プレート ; ６１１−１８５５６−３０ |
90201-081R9-00 |
from US $1.98 |
||
|
12
|
12
2J2-21629-01-00 Guard, Mudカート，マツト; |
2J2-21629-01-00 |
from US $57.89 |
||
|
13
|
13
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
14
|
14
973-01060-16-00
Bolt
ボルト，ヘキサゴン; |
973-01060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Boltボルト，ヘキサゴン; |
97095-06016-00 |
from US $1.28 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recessボルト，ヘキサゴン; |
97D95-06016-00 |
from US $1.28 |
||
|
15
|
15
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.35 |
||
|
17
|
17
1U4-21746-00-00 Damper, Plate |
1U4-21746-00-00 |
from US $6.52 |
||
| replacement | |||||
|
17
|
17
2MG-21639-00-00 Damper 2 |
2MG-21639-00-00 |
from US $6.52 |
||
|
18
|
18
2H6-21668-00-00
Label, Tire
|
2H6-21668-00-00 |
— | ||
