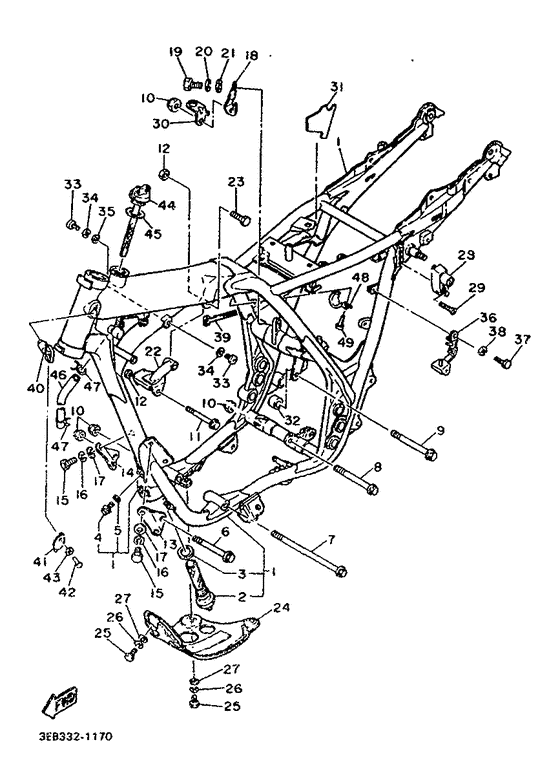

Frame Diagram Yamaha SR500
- Year
- 1992
- Colour
- Bluish Dark Silver (BDS; 00JX)
- Model code
- 3EB4
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- SR500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
48U-21110-00-33
Frame Comp
Yamaha black |
48U-21110-00-33 |
— | ||
|
02
|
02
583-21756-00-00 Net, Filter |
583-21756-00-00 |
from US $46.28 |
||
|
03
|
03
90430-22123-00 Gasket |
90430-22123-00 |
from US $4.53 |
||
|
04
|
04
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
04
|
04
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
05
|
05
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
06
|
06
90105-10039-00 Bolt, Flange |
90105-10039-00 |
from US $5.81 |
||
| replacements | |||||
|
06
|
06
95817-10100-00 Bolt, Flange |
95817-10100-00 |
from US $4.25 |
||
|
06
|
06
90105-10747-00 Bolt, Washer Based(1Ru) |
90105-10747-00 |
from US $5.78 |
||
|
07
|
07
90105-10113-00 Bolt, Washer Based |
90105-10113-00 |
from US $9.49 |
||
| replacement | |||||
|
07
|
07
90105-10780-00 Bolt, Washer Based(4Km) |
90105-10780-00 |
from US $9.49 |
||
|
08
|
08
90105-10051-00 Bolt, Flange |
90105-10051-00 |
from US $7.51 |
||
| replacement | |||||
|
08
|
08
90105-10712-00 Bolt, Flange |
90105-10712-00 |
from US $9.98 |
||
|
09
|
09
90105-10119-00 Bolt,washer Based |
90105-10119-00 |
from US $7.69 |
||
| replacement | |||||
|
09
|
09
90109-101A0-00 Bolt(30W) |
90109-101A0-00 |
from US $9.21 |
||
|
10
|
10
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
11
|
11
90105-08118-00 Bolt, Washer Based |
90105-08118-00 |
from US $8.22 |
||
|
12
|
12
90185-08054-00 Nut, Self-Locking |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
12
|
12
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
12
|
12
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
|
13
|
13
2J2-21315-00-33 Stay, Engine 2Yamaha black |
2J2-21315-00-33 |
US $25.15 |
||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
Yamaha black |
999-99999-99-00 |
— | ||
|
14
|
14
2J2-21316-00-33 Stay, Engine 3Yamaha black |
2J2-21316-00-33 |
from US $10.42 |
||
|
15
|
15
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
15
|
15
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
17
|
17
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
18
|
18
2J2-21317-01-00 Stay, Engine 4 |
2J2-21317-01-00 |
from US $10.62 |
||
|
19
|
19
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
20
|
20
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
21
|
21
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
22
|
22
2J2-21318-01-00 Stay, Engine 5 |
2J2-21318-01-00 |
from US $18.51 |
||
|
23
|
23
97313-08040-00 Bolt, Hexagon |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
23
|
23
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
3X4-21471-00-90 Protector, Engine (0033, Yb)Uni-chrome (black chromate) |
3X4-21471-00-90 |
from US $42.91 |
||
| replacement | |||||
|
24
|
24
3GW-21471-00-33 Protector, Engine (0033, Yb)Uni-chrome (black chromate) |
3GW-21471-00-33 |
from US $55.66 |
||
|
25
|
25
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
25
|
25
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
25
|
25
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
26
|
26
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
28
|
28
26H-21308-00-00
Helmet Hanger Assy
|
26H-21308-00-00 |
— | ||
| replacement | |||||
|
28
|
28
26H-21308-01-00 Helmet Hanger Assy |
26H-21308-01-00 |
from US $44.85 |
||
|
29
|
29
90151-06038-00 Screw, Countersunk |
90151-06038-00 |
from US $1.98 |
||
| replacement | |||||
|
29
|
29
90149-06150-00 Screw, Countersunk |
90149-06150-00 |
from US $1.98 |
||
|
30
|
30
2J2-2117G-00-00
Protector
|
2J2-2117G-00-00 |
— | ||
|
31
|
31
2J2-2117F-00-00 Cover |
2J2-2117F-00-00 |
US $3.02 |
||
|
32
|
32
2J2-21459-01-00 Spacer |
2J2-21459-01-00 |
from US $4.25 |
||
|
33
|
33
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
33
|
33
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
33
|
33
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
34
|
34
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
34
|
34
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
35
|
35
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
36
|
36
48U-21395-00-00
Bracket, Battery Box 3
|
48U-21395-00-00 |
— | ||
|
37
|
37
97026-06012-00 Bolt(85G) |
97026-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
37
|
37
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
38
|
38
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
38
|
38
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
39
|
39
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
39
|
39
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
41
|
41
134-23484-10-00 Cap, Handle Lock |
134-23484-10-00 |
from US $10.34 |
||
|
42
|
42
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
43
|
43
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
|
44
|
44
2J2-21771-02-00 Body, Cap |
2J2-21771-02-00 |
from US $13.78 |
||
| replacement | |||||
|
44
|
44
2J2-21771-10-00 Body, Cap |
2J2-21771-10-00 |
from US $15.12 |
||
|
45
|
45
90430-27124-00 Gasket |
90430-27124-00 |
from US $1.70 |
||
|
46
|
46
90445-11289-00 Hose (L200) |
90445-11289-00 |
from US $8.36 |
||
|
47
|
47
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
47
|
47
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
47
|
47
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
48
|
48
2J2-21335-00-00
Clamp, Wire Hrnes 1
|
2J2-21335-00-00 |
— | ||
| replacement | |||||
|
48
|
48
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
49
|
49
97780-50112-00 Screw, Tapping |
97780-50112-00 |
US $1.98 |
||
| replacement | |||||
|
49
|
49
97780-50612-00 Screw, Tapping |
97780-50612-00 |
from US $1.98 |
||
