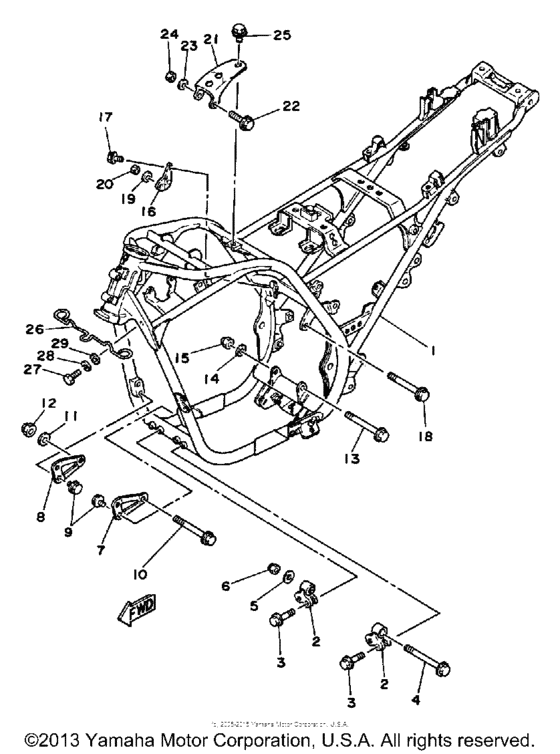

Frame Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NV-21110-00-FH
Frame
|
2NV-21110-00-FH |
— | ||
|
2
|
2
51Y-21315-02-00 Stay, Engine 2 |
51Y-21315-02-00 |
US $8.82 |
||
|
3
|
3
95026-08040-00 Bolt, Flange |
95026-08040-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
95027-08040-00 Bolt, Flange |
95027-08040-00 |
from US $1.42 |
||
|
4
|
4
90105-08123-00 Bolt, Flange |
90105-08123-00 |
from US $4.11 |
||
| replacement | |||||
|
4
|
4
95817-08100-00 Bolt, Flange |
95817-08100-00 |
from US $4.11 |
||
|
5
|
5
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
6
|
6
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
7
|
7
51Y-21316-02-00 Stay, Engine 3 |
51Y-21316-02-00 |
US $3.67 |
||
|
8
|
8
51Y-21317-02-00 Stay, Engine 4 |
51Y-21317-02-00 |
US $3.67 |
||
|
9
|
9
90105-08177-00 Bolt, Washer Based (4W5) |
90105-08177-00 |
from US $3.68 |
||
| replacements | |||||
|
9
|
9
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
9
|
9
90105-08066-00 Bolt, Flange |
90105-08066-00 |
from US $3.68 |
||
|
10
|
10
95811-08120-00 Bolt, Flange (22W) |
95811-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
10
|
10
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
11
|
11
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
12
|
12
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
13
|
13
901-05082-14-00
Bolt, Flange
|
901-05082-14-00 |
— | ||
| replacements | |||||
|
13
|
13
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
15
|
15
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
15
|
15
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
16
|
16
51Y-21318-00-00 Stay, Engine 5 |
51Y-21318-00-00 |
US $3.13 |
||
|
17
|
17
90105-08177-00 Bolt, Washer Based (4W5) |
90105-08177-00 |
from US $3.68 |
||
| replacements | |||||
|
17
|
17
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
17
|
17
90105-08066-00 Bolt, Flange |
90105-08066-00 |
from US $3.68 |
||
|
18
|
18
90105-08094-00 Bolt, Flange |
90105-08094-00 |
from US $3.38 |
||
|
19
|
19
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
20
|
20
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
20
|
20
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
21
|
21
51Y-21314-02-00 Stay, Engine 1 |
51Y-21314-02-00 |
US $7.47 |
||
|
22
|
22
958-11080-60-00
Bolt, Flange
|
958-11080-60-00 |
— | ||
| replacement | |||||
|
22
|
22
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
23
|
23
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
24
|
24
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
24
|
24
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
25
|
25
90105-08177-00 Bolt, Washer Based (4W5) |
90105-08177-00 |
from US $3.68 |
||
| replacements | |||||
|
25
|
25
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
25
|
25
90105-08066-00 Bolt, Flange |
90105-08066-00 |
from US $3.68 |
||
|
26
|
26
2NW-21288-00-00 Guide, CableUR FOR CALIF. |
2NW-21288-00-00 |
US $9.23 |
||
|
26
|
26
51Y-21288-00-00 Guide, Cable |
51Y-21288-00-00 |
US $8.57 |
||
|
27
|
27
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
27
|
27
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
27
|
27
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
27
|
27
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
29
|
29
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
