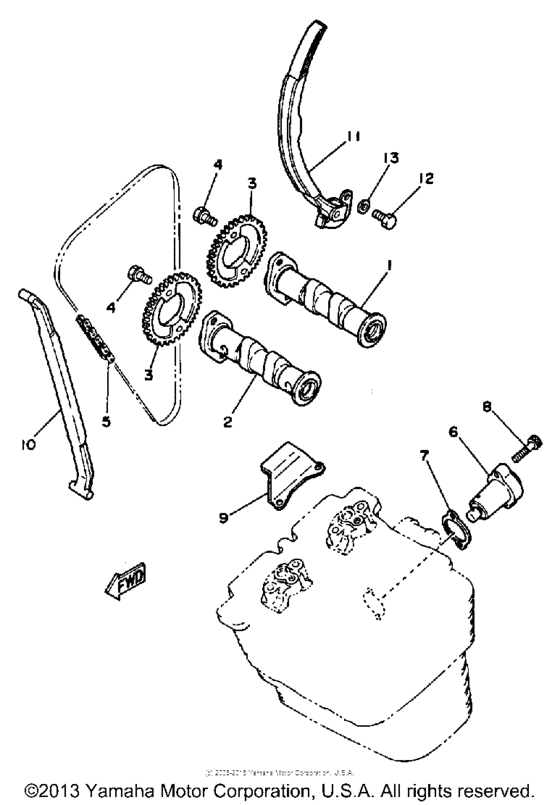

Camshaft & chain Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NV-12171-00-00
Camshaft 1
|
2NV-12171-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2NV-12181-00-00
Camshaft 2
|
2NV-12181-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
30X-12176-00-00
Sprocket, Cam Chain
|
30X-12176-00-00 |
— | ||
|
4
|
4
901-05072-88-00
Bolt, Flange
|
901-05072-88-00 |
— | ||
| replacements | |||||
|
4
|
4
90105-07003-00 Bolt, Flange |
90105-07003-00 |
from US $1.84 |
||
|
4
|
4
90105-07006-00 Bolt, Flange |
90105-07006-00 |
from US $1.84 |
||
|
5
|
5
94590-91136-00 Chain79RH2015-136M |
94590-91136-00 |
from US $78.20 |
||
|
6
|
6
30X-12210-00-00 Tensioner Assembly, Cam Chain |
30X-12210-00-00 |
from US $136.94 |
||
|
7
|
7
4BE-12213-00-00
Gasket, Tensioner Case
|
4BE-12213-00-00 |
— | ||
| replacement | |||||
|
7
|
7
4FM-12213-00-00 Gasket, Tensioner Case |
4FM-12213-00-00 |
from US $1.56 |
||
|
8
|
8
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
9
|
9
30X-12241-00-00
Guide, Stopper 2
|
30X-12241-00-00 |
— | ||
|
10
|
10
30X-12251-00-00 Damper, Chain 1 |
30X-12251-00-00 |
from US $50.69 |
||
|
11
|
11
30X-12252-01-00 Damper, Chain 2 |
30X-12252-01-00 |
from US $146.45 |
||
|
12
|
12
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
12
|
12
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
12
|
12
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.28 |
||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
13
|
13
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
13
|
13
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
