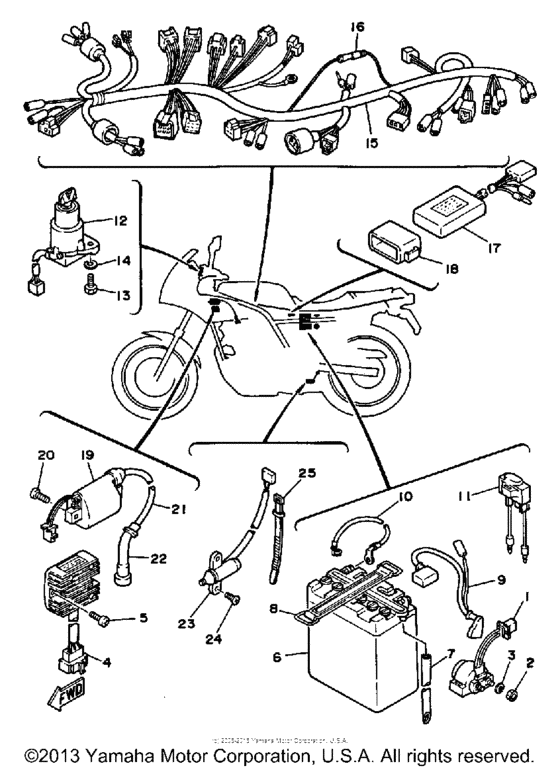

Electrical (1) Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
|
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
2
|
2
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
2
|
2
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
2J2-81960-A0-00 Rectifier/reg Assy |
2J2-81960-A0-00 |
from US $256.10 |
||
| replacement | |||||
|
4
|
4
2J2-81960-A1-00
Rectifier & Regulator Assy
|
2J2-81960-A1-00 |
— | ||
|
5
|
5
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
6
|
6
BTY-12N12-A4-A1
Yuasa 12N12A-4A-1 (366-82110-60
12N12A-4A-1 U.R |
BTY-12N12-A4-A1 |
— | ||
| replacement | |||||
|
6
|
6
12N-12A4A-1Y-00
CB16CLB GS BATTERY
12N12A-4A-1 U.R |
12N-12A4A-1Y-00 |
— | ||
|
7
|
7
904-45083-36-00
Hose (L1500)
|
904-45083-36-00 |
— | ||
| replacement | |||||
|
7
|
7
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
8
|
8
1E6-82131-00-00 Band, Battery |
1E6-82131-00-00 |
from US $14.51 |
||
|
9
|
9
51Y-82115-00-00
Wire, Plus Lead
|
51Y-82115-00-00 |
— | ||
|
10
|
10
3WP-82116-00-00
Wire, Minus Lead
|
3WP-82116-00-00 |
— | ||
| replacement | |||||
|
10
|
10
89H-82116-00-00
Wire, Minus Lead
|
89H-82116-00-00 |
— | ||
|
11
|
11
51Y-82180-00-00
Circuit Brkr.assemblyassy
|
51Y-82180-00-00 |
— | ||
|
12
|
12
3JV-82501-00-00 Main Switch Steering Lock |
3JV-82501-00-00 |
US $237.74 |
||
|
13
|
13
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
13
|
13
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
2NV-82590-00-00 Wire Harness Assembly |
2NV-82590-00-00 |
US $104.18 |
||
|
16
|
16
517-81980-A0-00 Diode AssyDiode assy |
517-81980-A0-00 |
US $28.78 |
||
|
17
|
17
2NV-82305-10-00
Ignitor Unit Assembly 1
|
2NV-82305-10-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
51Y-85546-00-00 Band |
51Y-85546-00-00 |
US $4.82 |
||
|
19
|
19
25G-82310-10-00 Ignition Coil Assy |
25G-82310-10-00 |
from US $168.56 |
||
|
20
|
20
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
21
|
21
4X7-82341-00-00 Cord, High Tension 1 |
4X7-82341-00-00 |
from US $36.75 |
||
|
22
|
22
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
22
|
22
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $28.76 |
||
|
23
|
23
2AX-82566-01-00 Switch, Side Stand |
2AX-82566-01-00 |
from US $84.06 |
||
| replacement | |||||
|
23
|
23
5Y1-82566-00-00 Switch, Side Stand |
5Y1-82566-00-00 |
from US $120.34 |
||
|
24
|
24
90152-05021-00 Screw, Flat Head |
90152-05021-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
25
|
25
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
