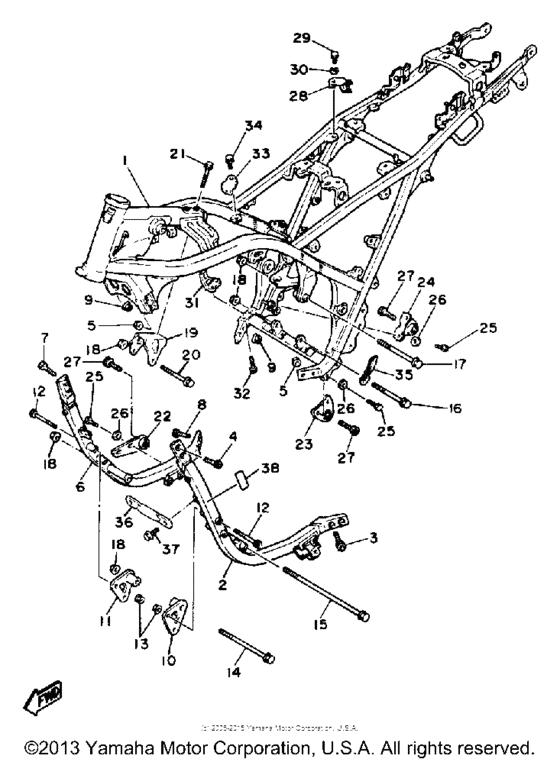

Frame Diagram Yamaha SRX600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- SRX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2EF-21110-00-MA
Frame
|
2EF-21110-00-MA |
— | ||
|
2
|
2
1XL-21140-01-MA
Tube, Down
|
1XL-21140-01-MA |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
3
|
3
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
4
|
4
91316-08035-00 Bolt |
91316-08035-00 |
from US $1.84 |
||
| replacement | |||||
|
4
|
4
913-17080-35-00 Bolt |
913-17080-35-00 |
from US $1.84 |
||
|
5
|
5
95706-08500-00 Nut, With Washer |
95706-08500-00 |
from US $0.85 |
||
| replacements | |||||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
5
|
5
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
6
|
6
1HX-83371-11-00 HornIN PRICE BOOK TITANIC GREY METALIC |
1HX-83371-11-00 |
from US $27.34 |
||
|
7
|
7
91316-08035-00 Bolt |
91316-08035-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
913-17080-35-00 Bolt |
913-17080-35-00 |
from US $1.84 |
||
|
8
|
8
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
8
|
8
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
9
|
9
95706-08500-00 Nut, With Washer |
95706-08500-00 |
from US $0.85 |
||
| replacements | |||||
|
9
|
9
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
9
|
9
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
10
|
10
1HX-83371-11-00 HornIN PRICE BOOK |
1HX-83371-11-00 |
from US $27.34 |
||
|
11
|
11
1HX-83371-11-00 HornIN PRICE BOOK |
1HX-83371-11-00 |
from US $27.34 |
||
|
12
|
12
91316-08070-00 Bolt |
91316-08070-00 |
from US $4.45 |
||
| replacement | |||||
|
12
|
12
91317-08070-00 Bolt, Socket |
91317-08070-00 |
from US $4.21 |
||
|
13
|
13
95706-08500-00 Nut, With Washer |
95706-08500-00 |
from US $0.85 |
||
| replacements | |||||
|
13
|
13
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
13
|
13
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
14
|
14
95816-10135-00
Bolt, Flange
|
95816-10135-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
95816-10230-00 Bolt, Washer Based |
95816-10230-00 |
from US $7.85 |
||
| replacement | |||||
|
15
|
15
90105-10139-00
Bolt, Washer Based
|
90105-10139-00 |
— | ||
|
16
|
16
949-62090-01-00
Chain Joint
IN PRICE BOOK |
949-62090-01-00 |
— | ||
|
17
|
17
949-62090-01-00
Chain Joint
IN PRICE BOOK |
949-62090-01-00 |
— | ||
|
18
|
18
90185-10133-00 Nut, U Flange |
90185-10133-00 |
from US $2.75 |
||
| replacements | |||||
|
18
|
18
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
18
|
18
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
|
19
|
19
1HX-83371-11-00 HornIN PRICE BOOK |
1HX-83371-11-00 |
from US $27.34 |
||
|
20
|
20
949-62090-01-00
Chain Joint
IN PRICE BOOK |
949-62090-01-00 |
— | ||
|
21
|
21
95816-08060-00 Bolt, Flange |
95816-08060-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
22
|
22
1JK-21445-00-00
Stay, Muffler 1
|
1JK-21445-00-00 |
— | ||
|
23
|
23
1JK-21446-00-00
Stay, Muffler 2
|
1JK-21446-00-00 |
— | ||
|
24
|
24
1JK-21487-00-00
Stay, Muffler 3
|
1JK-21487-00-00 |
— | ||
|
25
|
25
97026-06012-00 Bolt(85G) |
97026-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
25
|
25
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
26
|
26
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
27
|
27
91316-08025-00 Bolt |
91316-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
28
|
28
1HX-83371-11-00 HornIN PRICE BOOK |
1HX-83371-11-00 |
from US $27.34 |
||
|
29
|
29
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
29
|
29
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
29
|
29
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
1JK-2118W-00-00
Stopper
|
1JK-2118W-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
32
|
32
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
33
|
33
1JK-21353-00-00
Bracket, Oil Tank
|
1JK-21353-00-00 |
— | ||
|
34
|
34
95826-06010-00 Bolt, Flange |
95826-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
34
|
34
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
35
|
35
1HX-83371-11-00 HornIN PRICE BOOK |
1HX-83371-11-00 |
from US $27.34 |
||
|
36
|
36
1HX-83371-11-00 HornIN PRICE BOOK TITANIC |
1HX-83371-11-00 |
from US $27.34 |
||
|
37
|
37
90B-7S100-34-00
Screw, Button Head
IN PRICE BOOK |
90B-7S100-34-00 |
— | ||
|
38
|
38
1JK-21268-00-00 Seal |
1JK-21268-00-00 |
from US $5.98 |
||
