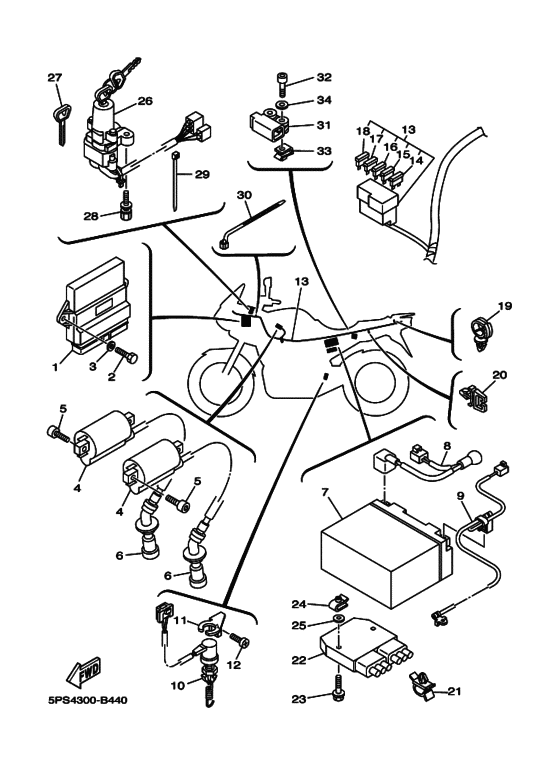

Electrical 1 Diagram Yamaha TDM900
- Year
- 2003
- Colour
- Silver 3 (S3; 0791)
- Model code
- 5PS4
- Sales region
- Europe (060)
- Engine Capacity
- 900
- Color Variant
- B
- Model
- TDM900
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5PS-8591A-02-00 Engine Control Unit Assy |
5PS-8591A-02-00 |
US $1,208.13 |
||
| replacement | |||||
|
1
|
1
5PS-8591A-03-00
Engine Control Unit Assy
|
5PS-8591A-03-00 |
— | ||
|
2
|
2
970-24060-16-00
Bolt (3Bm)
|
970-24060-16-00 |
— | ||
| replacements | |||||
|
2
|
2
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
2
|
2
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
2
|
2
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
3
|
3
929-04066-00-00
Washer, Plate
|
929-04066-00-00 |
— | ||
| replacements | |||||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
3
|
3
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
4
|
4
2UJ-82310-01-00 Ignition Coil Assy |
2UJ-82310-01-00 |
from US $137.47 |
||
| replacements | |||||
|
4
|
4
4DN-82320-00-00
Ignition Coil Assy
|
4DN-82320-00-00 |
— | ||
|
4
|
4
4DN-82320-01-00 IGNITION COIL ASSY |
4DN-82320-01-00 |
from US $89.88 |
||
|
5
|
5
91317-05016-00 Bolt |
91317-05016-00 |
from US $1.22 |
||
|
6
|
6
5JW-82370-00-00 Plug Cap Assy |
5JW-82370-00-00 |
from US $97.54 |
||
|
7
|
7
4TX-82100-02-00
Gt12B4 Gs Battery -
|
4TX-82100-02-00 |
— | ||
| replacements | |||||
|
7
|
7
GT1-2B400-00-00
Battery
|
GT1-2B400-00-00 |
— | ||
|
7
|
7
YT1-2BBS0-00-00
Bat Yt12B-Bs (Pt12B-4) Yu
|
YT1-2BBS0-00-00 |
— | ||
|
8
|
8
5PS-82115-00-00 Wire, Plus Lead |
5PS-82115-00-00 |
US $25.36 |
||
|
9
|
9
5PS-82116-00-00 Wire, Minus Lead |
5PS-82116-00-00 |
US $23.80 |
||
|
10
|
10
5PS-82530-00-00 Stop Switch Assy |
5PS-82530-00-00 |
US $27.34 |
||
|
11
|
11
5PS-2144G-00-00 Stay, Stop Switch |
5PS-2144G-00-00 |
from US $2.13 |
||
|
12
|
12
98507-06008-00 Screw |
98507-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
12
|
12
98517-06008-00 Screw |
98517-06008-00 |
from US $1.70 |
||
|
13
|
13
5PS-82590-20-00
Wire Harness Assy
|
5PS-82590-20-00 |
— | ||
|
14
|
14
5JJ-82151-30-00
Fuse (10A-Bl)
10A-BL |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
14
|
14
67F-82151-40-00 Fuse (10A)10A-BL |
67F-82151-40-00 |
from US $1.90 |
||
|
15
|
15
5JJ-82151-10-00 Fuse (15A-Bl)15A-BL |
5JJ-82151-10-00 |
US $3.05 |
||
| replacement | |||||
|
15
|
15
67F-82151-50-00 Fuse (15A)15A-BL |
67F-82151-50-00 |
from US $1.90 |
||
|
16
|
16
5JJ-82151-20-00 Fuse (20A-Bl)20A-BL |
5JJ-82151-20-00 |
from US $3.74 |
||
|
17
|
17
5JJ-82151-90-00 Fuse - 5 A - Blade (5A-BL |
5JJ-82151-90-00 |
US $3.40 |
||
| replacement | |||||
|
17
|
17
67F-82151-20-00 Fuse (5A)5A-BL |
67F-82151-20-00 |
from US $2.86 |
||
|
18
|
18
5PS-82151-00-00 Slow Blow Fuse40A |
5PS-82151-00-00 |
from US $6.94 |
||
| replacement | |||||
|
18
|
18
JR9-82151-00-00 Fuse (40A)40A |
JR9-82151-00-00 |
from US $6.11 |
||
|
19
|
19
90464-13249-00 Clamp |
90464-13249-00 |
from US $1.70 |
||
|
20
|
20
90464-07M56-00 Clamp |
90464-07M56-00 |
from US $1.98 |
||
|
21
|
21
90464-14001-00 Clamp |
90464-14001-00 |
from US $1.70 |
||
|
22
|
22
5JW-81960-00-00 Rectifier & Regulator Assy |
5JW-81960-00-00 |
from US $247.42 |
||
|
23
|
23
95807-06030-00 Bolt, Flange |
95807-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
24
|
24
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
24
|
24
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
25
|
25
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
26
|
26
5PS-82501-20-00 Main Switch Steering Lock |
5PS-82501-20-00 |
from US $244.54 |
||
|
27
|
27
4BH-82511-09-00 Blank KeyAP |
4BH-82511-09-00 |
from US $12.35 |
||
|
28
|
28
901-09080-G5-00
Bolt
|
901-09080-G5-00 |
— | ||
| replacement | |||||
|
28
|
28
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $2.08 |
||
|
29
|
29
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
| replacement | |||||
|
29
|
29
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
30
|
30
90464-25003-00 Clamp |
90464-25003-00 |
from US $1.35 |
||
|
31
|
31
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
31
|
31
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
from US $93.26 |
||
|
32
|
32
91317-04025-00 Bolt |
91317-04025-00 |
from US $1.42 |
||
|
33
|
33
90183-04039-00 Nut, Spring |
90183-04039-00 |
from US $1.98 |
||
|
34
|
34
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
