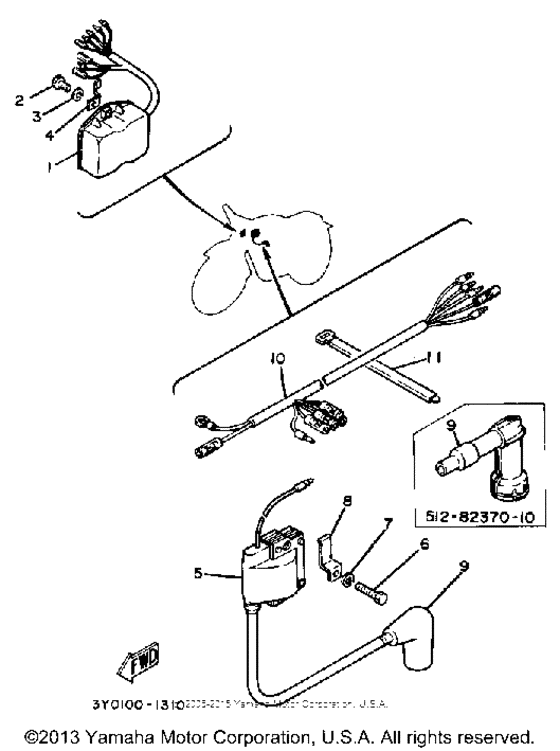

Electrical (1) Diagram Yamaha TT250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-85540-20-00 Cdi Unit Assembly |
3Y1-85540-20-00 |
US $511.15 |
||
|
2
|
2
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
2
|
2
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
2
|
2
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
90462-08068-00
Clamp
|
90462-08068-00 |
— | ||
|
5
|
5
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
5
|
5
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
6
|
6
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
6
|
6
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
904-63140-16-00
Clamp
|
904-63140-16-00 |
— | ||
|
9
|
9
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
9
|
9
512-82370-10-00 Plug Cap Assembly |
512-82370-10-00 |
from US $44.80 |
||
| replacement | |||||
|
9
|
9
7KA-82370-00-00 Plug Cap Assy |
7KA-82370-00-00 |
from US $52.92 |
||
|
10
|
10
3Y0-82521-01-00
Wire, Lead
|
3Y0-82521-01-00 |
— | ||
|
11
|
11
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
11
|
11
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
