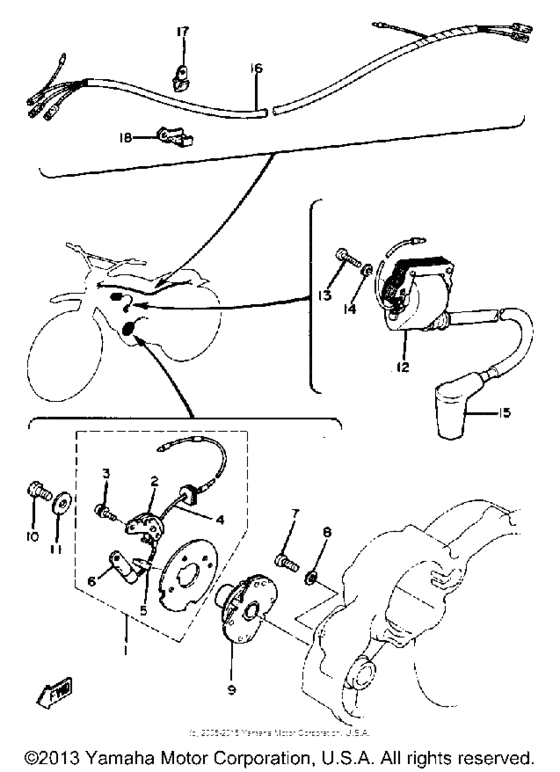

Electrical Diagram Yamaha TT500
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-81620-50-00 Breaker Plate Assembly |
583-81620-50-00 |
US $240.73 |
||
|
2
|
2
583-81621-50-00 Contact Brkr Assembly |
583-81621-50-00 |
from US $94.59 |
||
|
3
|
3
98580-04006-00 Screw, Pan Head |
98580-04006-00 |
from US $1.56 |
||
|
4
|
4
583-81615-50-00
Wire, Lead
|
583-81615-50-00 |
— | ||
|
5
|
5
1L9-81631-50-00
Lubricator
|
1L9-81631-50-00 |
— | ||
|
6
|
6
583-81625-50-00 Condenser 1 |
583-81625-50-00 |
from US $50.22 |
||
|
7
|
7
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
7
|
7
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
9
|
9
583-81653-50-00
Governor Assembly
|
583-81653-50-00 |
— | ||
|
10
|
10
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
10
|
10
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
10
|
10
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
11
|
11
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
11
|
11
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
12
|
12
583-82310-50-00
Ignition Coil Assembly
|
583-82310-50-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
15
|
15
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
15
|
15
512-82370-10-00 Plug Cap Assembly |
512-82370-10-00 |
from US $44.80 |
||
| replacement | |||||
|
15
|
15
7KA-82370-00-00 Plug Cap Assy |
7KA-82370-00-00 |
from US $52.92 |
||
|
16
|
16
2Y0-82590-00-00
Wire Harness Assembly
|
2Y0-82590-00-00 |
— | ||
|
17
|
17
904-65060-86-00
Clamp
|
904-65060-86-00 |
— | ||
|
18
|
18
90465-10090-00
Clamp
|
90465-10090-00 |
— | ||
