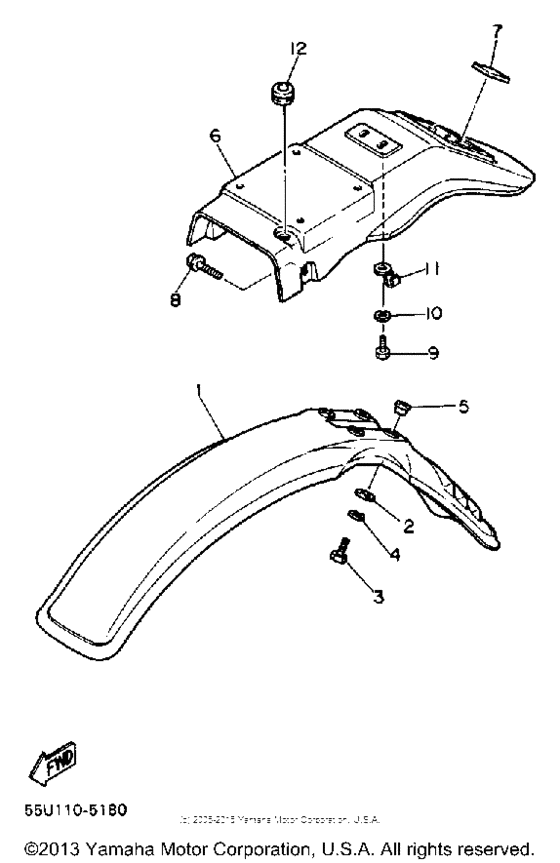

Fender Diagram Yamaha TT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34K-21511-00-00
Fender, Front
|
34K-21511-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
2
|
2
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
3
|
3
97303-06020-00 Bolt |
97303-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
3
|
3
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
90209-06187-00 Washer |
90209-06187-00 |
from US $1.70 |
||
|
6
|
6
34K-21610-00-00
Fender, Rear
|
34K-21610-00-00 |
— | ||
|
7
|
7
2H7-21628-00-00 Damper |
2H7-21628-00-00 |
from US $2.25 |
||
| replacement | |||||
|
7
|
7
22F-2139X-00-00 Damper |
22F-2139X-00-00 |
from US $2.91 |
||
|
8
|
8
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
8
|
8
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
8
|
8
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
9
|
9
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
9
|
9
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
9
|
9
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
34K-21615-00-00
Washer, Special 1
|
34K-21615-00-00 |
— | ||
|
12
|
12
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.50 |
||
