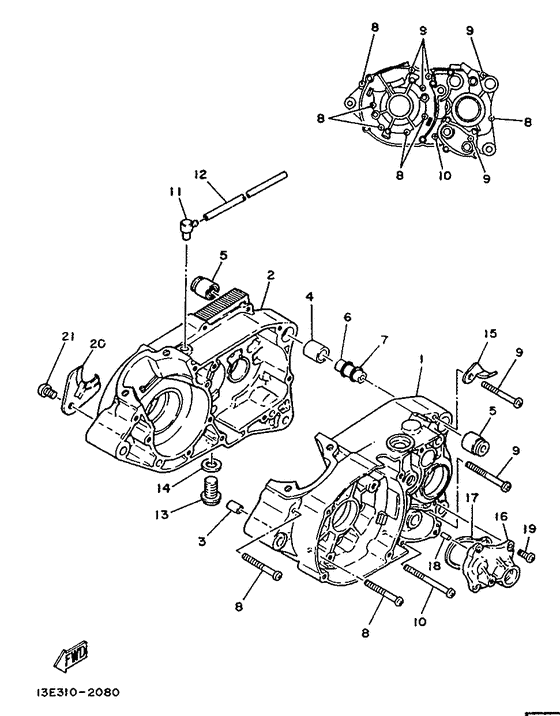

Crankcase Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
525-15111-01-00
Crankcase 1
|
525-15111-01-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
525-15121-01-00
Crankcase 2
|
525-15121-01-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
03
|
03
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
03
|
03
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
04
|
04
995-10200-20-00
Pin, Dowel
|
995-10200-20-00 |
— | ||
| replacement | |||||
|
04
|
04
995-30200-20-00 Pin, Dowel |
995-30200-20-00 |
US $2.13 |
||
|
05
|
05
328-15316-00-00
Damper, Engine Mount 1 (328-153)
|
328-15316-00-00 |
— | ||
| replacement | |||||
|
05
|
05
90388-08003-00 Damper |
90388-08003-00 |
from US $21.44 |
||
|
06
|
06
401-15317-00-00 Spacer, Engine Mount |
401-15317-00-00 |
from US $11.76 |
||
|
07
|
07
93210-11073-00 O-Ring |
93210-11073-00 |
from US $1.81 |
||
|
08
|
08
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
08
|
08
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
09
|
09
92501-06060-00 Screw, Pan Head (92580-06560-00 |
92501-06060-00 |
from US $5.29 |
||
| replacement | |||||
|
09
|
09
985-80065-60-00 Screw, Pan Head (92580-06560-00 |
985-80065-60-00 |
from US $7.51 |
||
|
10
|
10
92501-06070-00 Screw, Pan Head |
92501-06070-00 |
from US $6.52 |
||
| replacement | |||||
|
10
|
10
98580-06570-00 Screw, Pan Head |
98580-06570-00 |
from US $6.52 |
||
|
11
|
11
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.70 |
||
|
12
|
12
90445-07177-00 Hose |
90445-07177-00 |
US $4.39 |
||
| replacement | |||||
|
12
|
12
90445-07MF1-00 Hose (L570) |
90445-07MF1-00 |
from US $4.39 |
||
|
13
|
13
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
14
|
14
90430-12038-00 Gasket |
90430-12038-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
15
|
15
90465-10074-00
Clamp
|
90465-10074-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
437-15419-01-00 Cover, Shifter 1 |
437-15419-01-00 |
from US $67.42 |
||
|
17
|
17
401-15449-00-00 Ring, Rubber |
401-15449-00-00 |
from US $18.84 |
||
|
18
|
18
93603-12007-00 Pin, Dowel |
93603-12007-00 |
from US $1.94 |
||
|
19
|
19
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
20
|
20
304-15128-00-00 Holder |
304-15128-00-00 |
from US $7.93 |
||
|
21
|
21
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.56 |
||
