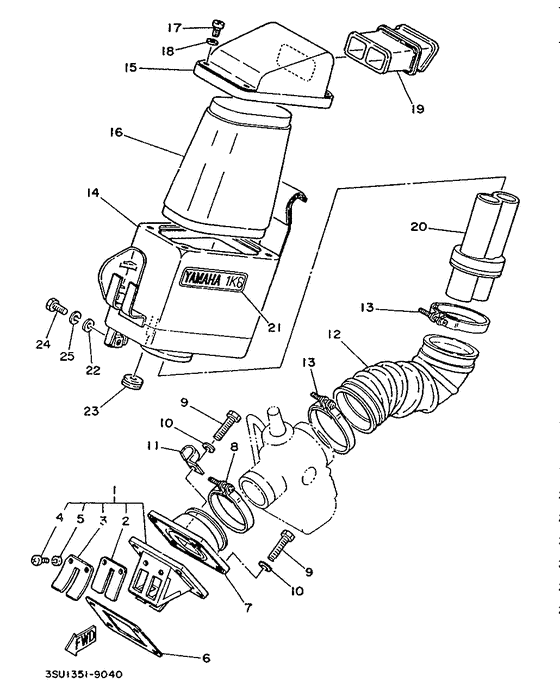

Intake Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
539-13610-00-00 Reed Valve Assy |
539-13610-00-00 |
US $248.69 |
||
| replacement | |||||
|
01
|
01
53V-13610-00-00 Reed Valve Assembly |
53V-13610-00-00 |
from US $217.13 |
||
|
02
|
02
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
03
|
03
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
04
|
04
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
05
|
05
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
06
|
06
314-13621-02-00 Gasket, Valve Seat |
314-13621-02-00 |
from US $4.11 |
||
| replacement | |||||
|
06
|
06
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $4.11 |
||
|
07
|
07
525-13565-01-00
Joint, Carburetor
|
525-13565-01-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
08
|
08
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
09
|
09
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
11
|
11
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
|
12
|
12
525-14453-00-00
Joint, Air Clnr 1
|
525-14453-00-00 |
— | ||
|
13
|
13
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $6.24 |
||
|
14
|
14
525-14411-00-00
Case, Air Cleaner 1
|
525-14411-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
1K6-14412-00-00
Cap, Cleaner Case 1
|
1K6-14412-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
525-14451-01-00 Element, Air Clnr |
525-14451-01-00 |
from US $28.42 |
||
| replacement | |||||
|
16
|
16
525-14451-02-00 ELEMENT, AIR CLEANER |
525-14451-02-00 |
from US $18.76 |
||
|
17
|
17
985-01040-08-00
Screw, Pan Head
|
985-01040-08-00 |
— | ||
| replacement | |||||
|
17
|
17
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
18
|
18
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
19
|
19
1K6-14437-00-00
Duct
|
1K6-14437-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
1K6-14419-00-00
Pipe
|
1K6-14419-00-00 |
— | ||
|
21
|
21
1K6-1441K-00-00
Emblem
|
1K6-1441K-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
22
|
22
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
23
|
23
90480-10091-00 Grommet (214-21746-00) |
90480-10091-00 |
from US $2.83 |
||
|
24
|
24
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
24
|
24
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
24
|
24
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
25
|
25
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
